B400R 1-3kVA User Manual
6

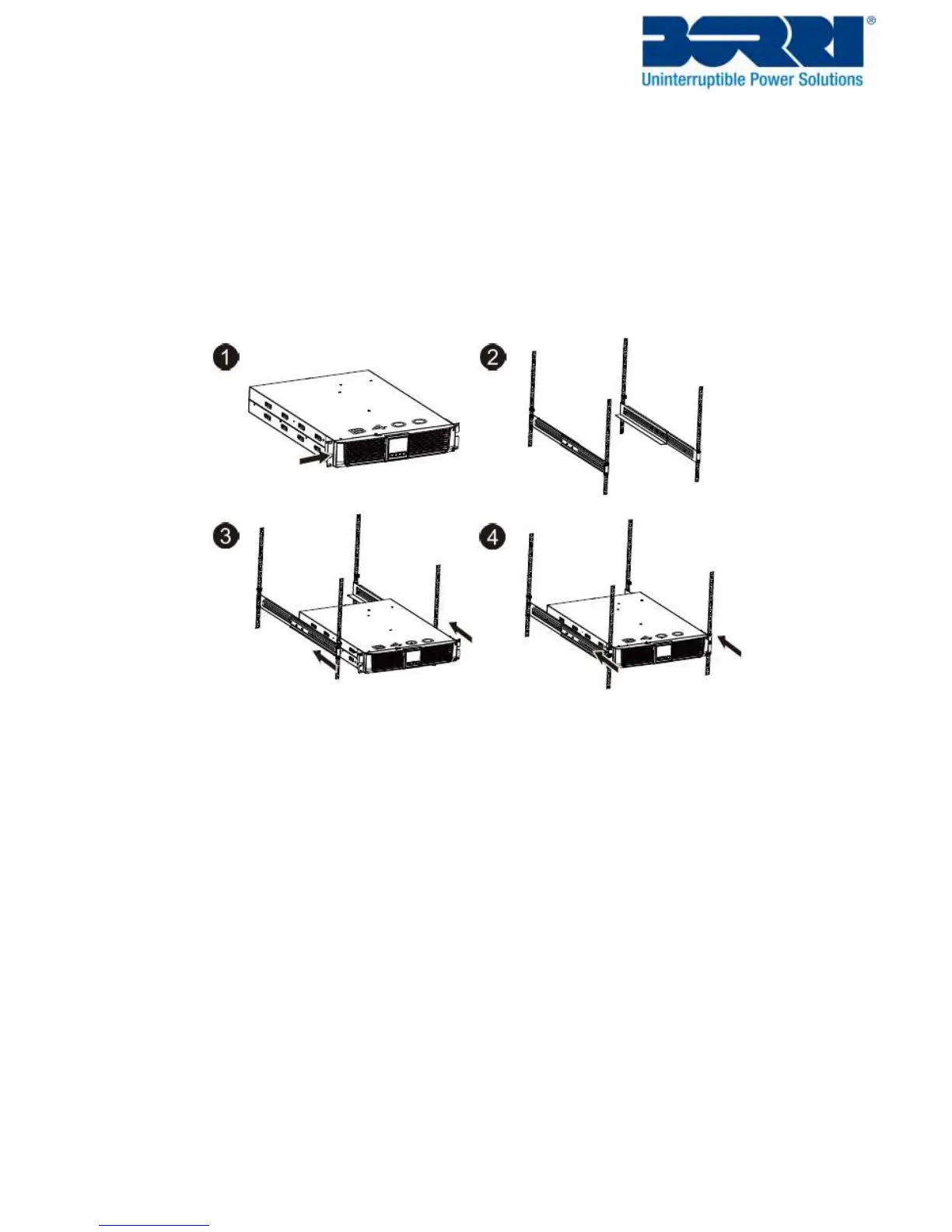

Rack-mount setup
The B400R series can also be installed in a 19 inch rack. Both the UPS and external battery
enclosure(S) require 2U of rack space each. Use the following procedure to install UPS in a rack:
1. Align the mounting ears with the screw holes on the side of the UPS, and tighten the screws.
2. Assemble the rack rails within the rack-mounting.
3. Slide in the UPS into the rack rail and lock it into the Rack-mounting.
4. Tighten the screws, to secure the UPS into place and then the load can be connected.
