B400R 1-3kVA User Manual
7
1.1.4 EBM Installation (Optional)

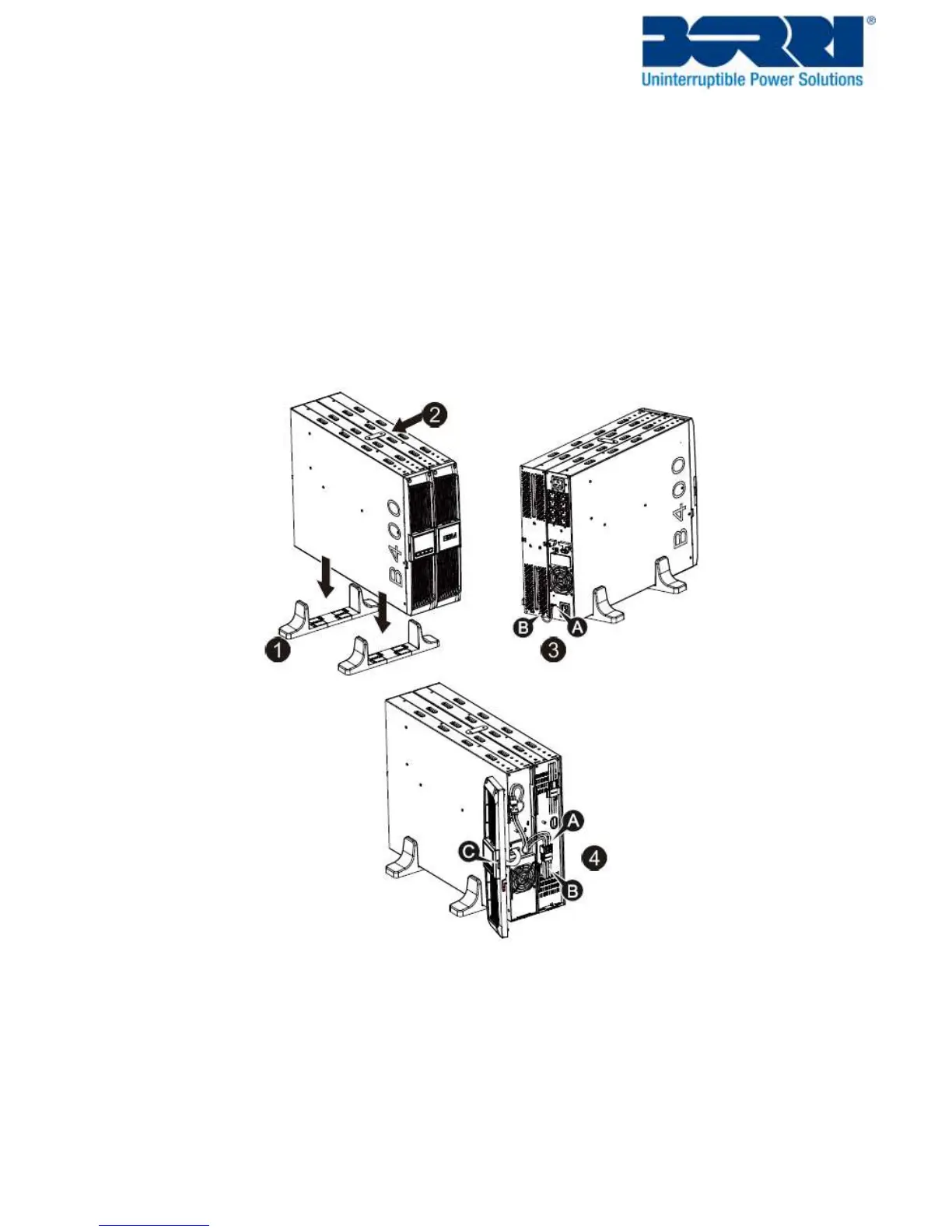

Connecting the EBM in Tower form:
1. Position the extended UPS stands appropriately so that 1 stand will be at either end of the UPS
and EBM.
2. Tighten the screw on the metal sheet for stabilization and secure the UPS and EBM together, then
lift and place down the UPS and EBM carefully into the stands.
3. Connect the Earth line from UPS (port A) to EBM (port B)
4. Take off the front panel, and connect the battery terminal (A) from UPS to EBM terminal (B) as
shown below. Users need to remove the small gate(C) on the side of the front panel to allow the
outlet wire of the EBM to pass through the gate and then reassemble front panel.
To Next Page
