B400R 1-3kVA User Manual
8

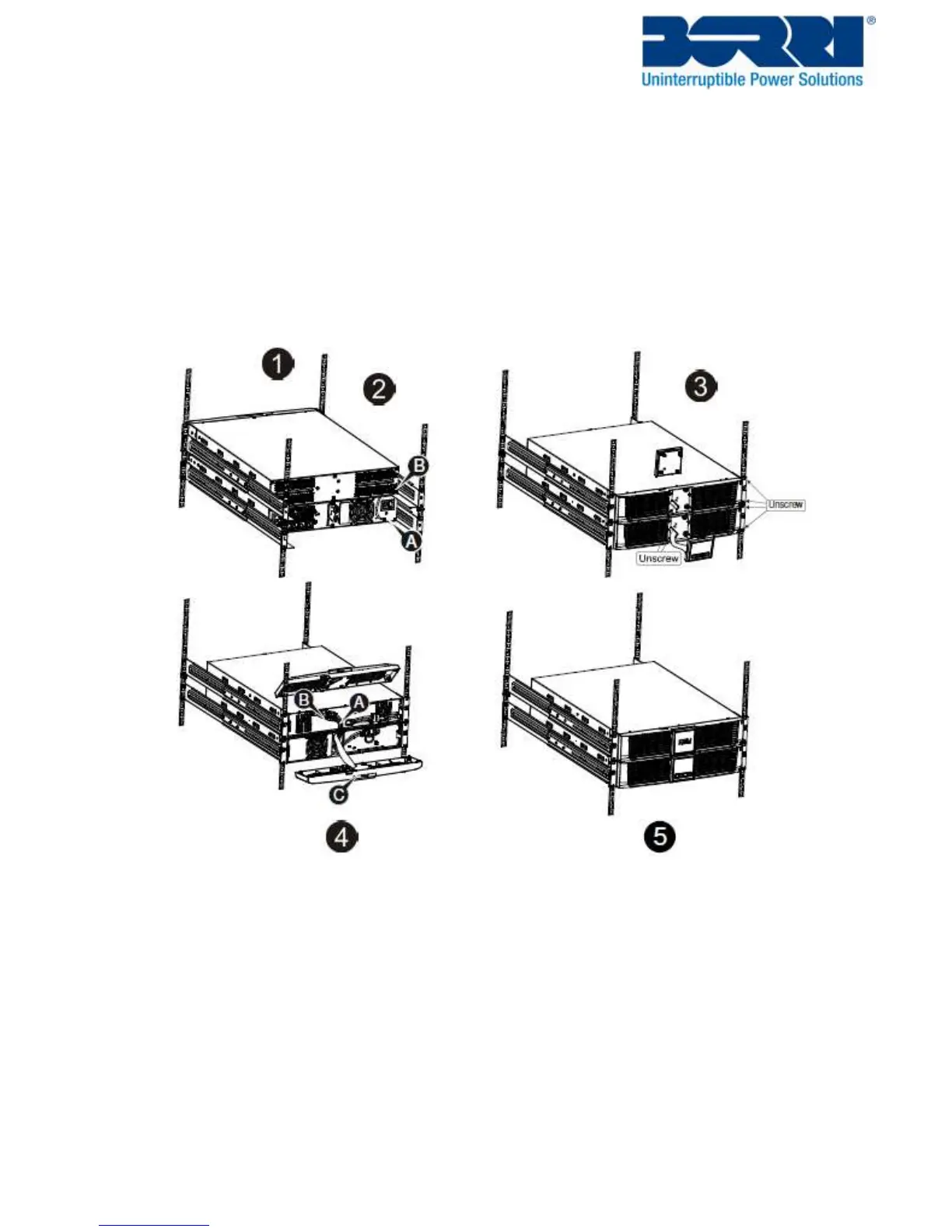

Connecting the EBM in a rack form
1. Using the same method as assembling the UPS in a rack form, assemble the EBM into the rack-
mounting above or below the UPS.
2. Connect the earth line from UPS (port A) to EBM (port B)
3. Take out the LCD box carefully, and unscrew the internal screws.
4. Take off the front panel, and connect the battery terminal (A) from UPS to EBM terminal (B) as
shown below. Users need to remove the small gate(C) on side of the front panel to allow the outlet
wire of the EBM to pass through the gate and then reassemble front panel.
5. After installing the UPS into the rack, the load can then be connected to UPS. Please make sure
the load equipment is turned off before connecting to the UPS output receptacles.
