Installation and start-up of INGENIO PLUS UPS 30÷40 kVA
Installazione e avviamento INGENIO PLUS UPS 30÷40 kVA
OMS02082 REV. D 35
2) Install the batteries in accordance with the picture 11 and picture 12.
TO THE BATTERY
FUSE POSITIVE
TRAY
1
TRAY
2
TRAY
3
TO BATTERY FUSE
NEUTRAL
TRAY
4
TRAY
5
TRAY
6
TO THE BATTERY
FUSE NEGATIVE
TO BATTERY FUSE
NEUTRAL
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-

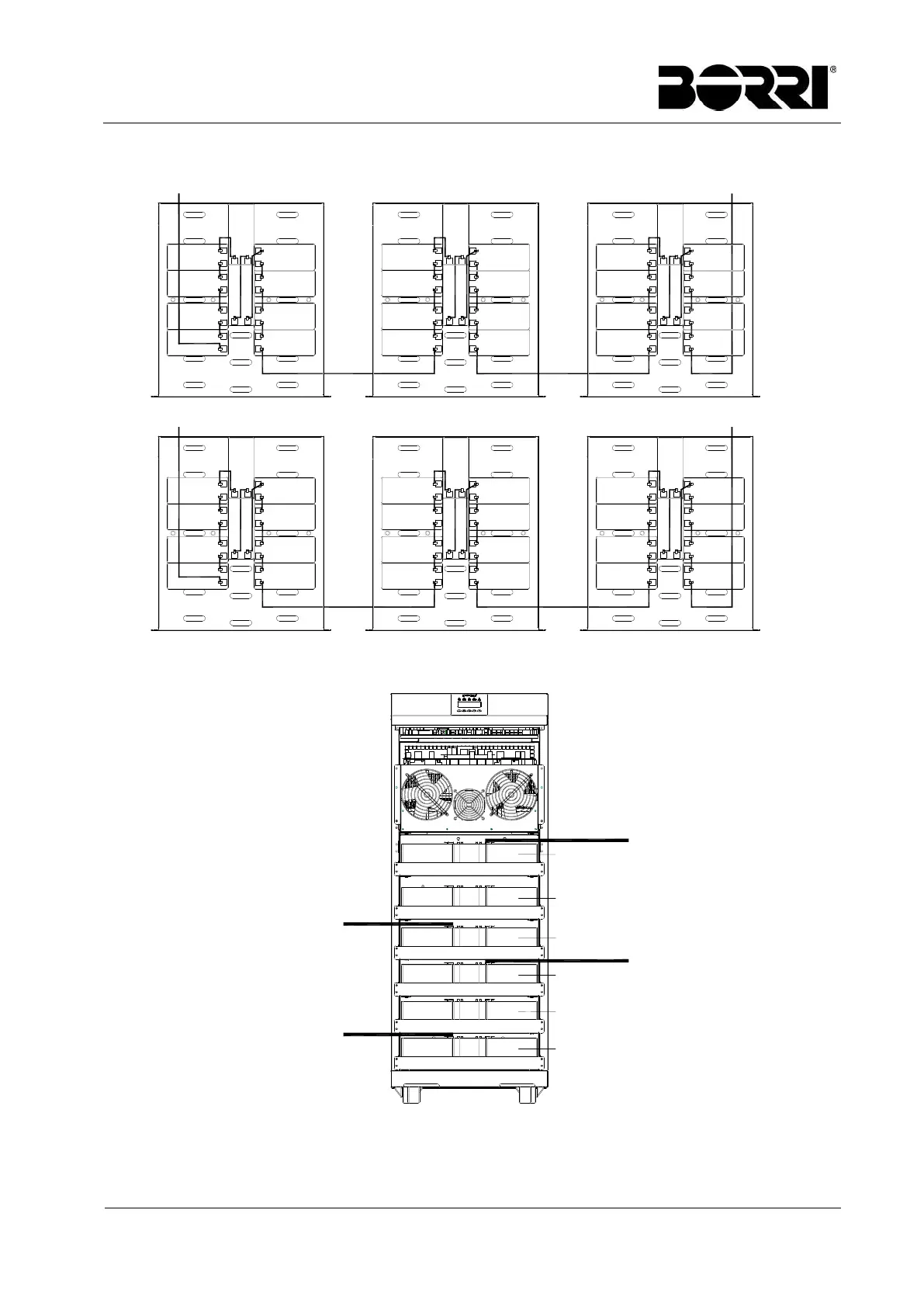

Picture 11 - 60 x9Ah 12V battery connection tray top view
TRAY 1
TRAY 2
TO THE BATTERY
FUSE NEGATIVE
TO THE
BATTERY
FUSE NEUTRAL
TRAY 3
TRAY 4
TRAY 5
TRAY 6
TO THE
BATTERY
FUSE NEUTRAL
TO THE BATTERY
FUSE POSITIVE
Picture 12- 60 x 9Ah 12V battery connection tray front view
3) After the connection re-insert the battery trays on the internal of UPS.
4) Put back and fix the front cover with the four screws.
READ
INDICATIONS
FOR HANDLING
BATTERY TRAYS
AT PAGE 33
