Installation and start-up of INGENIO PLUS UPS 30÷40 kVA
Installazione e avviamento INGENIO PLUS UPS 30÷40 kVA
OMS02082 REV. D 37
2) Install the batteries received in accordance with the picture 15 and picture 16.
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
TRAY
1
TO THE BATTERY
FUSE POSITIVE
TRAY
3
TRAY
4
TRAY
6
TO THE BATTERY
FUSE NEGATIVE
TRAY
2
TRAY
5
TO THE BATTERY
FUSE NEUTRAL
TO THE BATTERY
FUSE NEUTRAL
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-

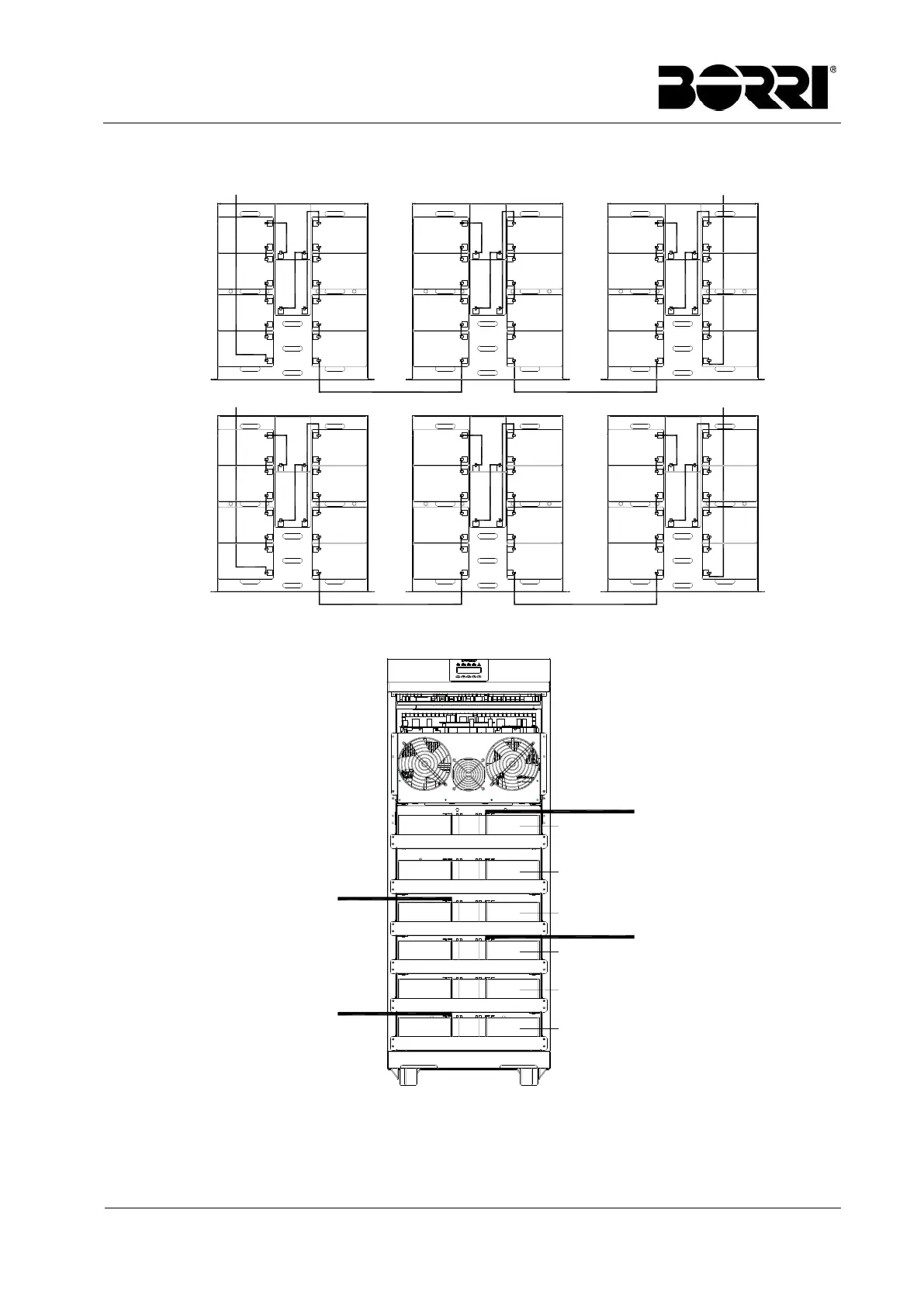

Picture 15 – 60 x 12Ah 12V battery connection tray top view
TRAY 1
TRAY 2
TO THE BATTERY
FUSE NEGATIVE
TO THE
BATTERY
FUSE NEUTRAL
TRAY 3
TRAY 4
TRAY 5
TRAY 6
TO THE
BATTERY
FUSE NEUTRAL
TO THE BATTERY
FUSE POSITIVE
Picture 16 - 60 x12Ah 12V battery connection tray front view
3) After the connection re-insert the battery trays on the internal of UPS.
4) Put back and fix the left/right cover with the four screws.
READ
INDICATIONS
FOR HANDLING
BATTERY TRAYS
AT PAGE 33
