4.5.6 Diesel Generator auxiliary contact OPTIONAL
Auxiliary contact from the Diesel Generator on terminals XD-1/2.
A normally open contact must be used; the contact must close when the diesel generator is
operating.
The microprocessor will acquire the status of the contact and, upon the rectifier start-up, it will
enable the "Diesel Mode" operation, that is the operation at reduced DC voltage in order to
reduce the power drawn from the AC line.
4.6 SERIAL INTERFACES AND EXTERNAL CONNECTIONS
NORMALE/BYP
SEELECTOR
THERMAL
PROBE
RS485
MOD-BUS
PARALLEL
SPARE
SNMP
EXT-INP
/
LOAD SYNC
SRC-2

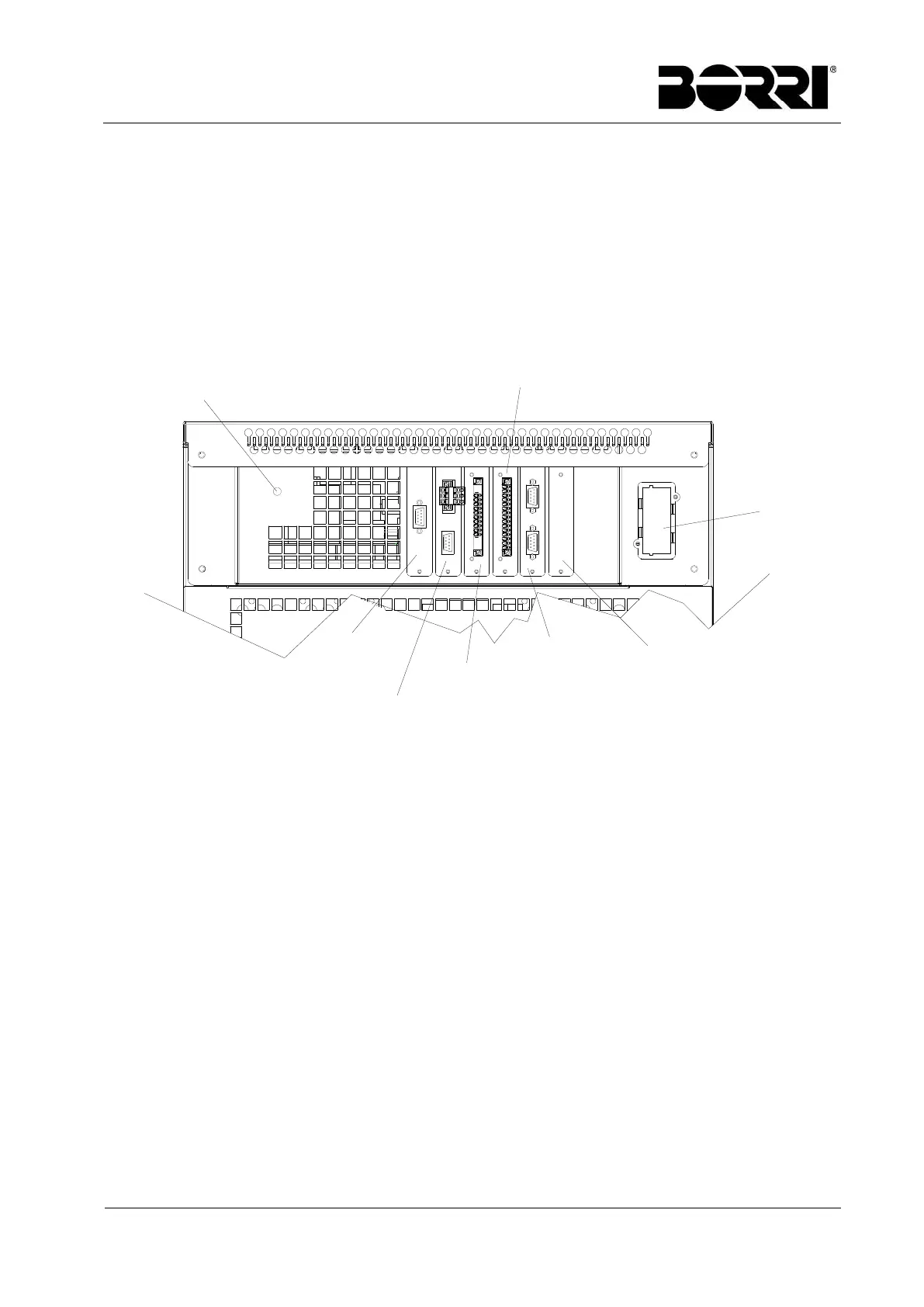

Picture 17 – Position of the serial interfaces of INGENIO PLUS 30÷40 kVA
SRC-2 (OPTIONAL): relay card, used for the remote signalisations of status and
alarms.
PARALLEL (OPTIONAL): it is used for communication between paralleled UPS units.
MODBUS (OPTIONAL): it is used for the transmission of data to the outside via
MODBUS RTU protocol (RS485).
THERMAL PROBE (OPTION): it is used to acquire the temperature of the battery
cabinet/room in order to adjust the charging voltage automatically.
SNMP (OPTIONAL): it is used for the external transmission of data via LAN.
NORMAL/BYPASS SELECTOR
