Installation and start-up of INGENIO PLUS UPS 30÷40 kVA
Installazione e avviamento INGENIO PLUS UPS 30÷40 kVA
40 OMS02082 REV. D
4.7 RELAY CARD CONNECTION (OPTIONAL)
The INGENIO PLUS UPS 30÷40 kVA, in its full configuration, is provided with a relay card for
repeating alarms and operating statuses remotely. The electric connection is carried out directly
on the terminals located on the front of the interfaces slot SRC-2.

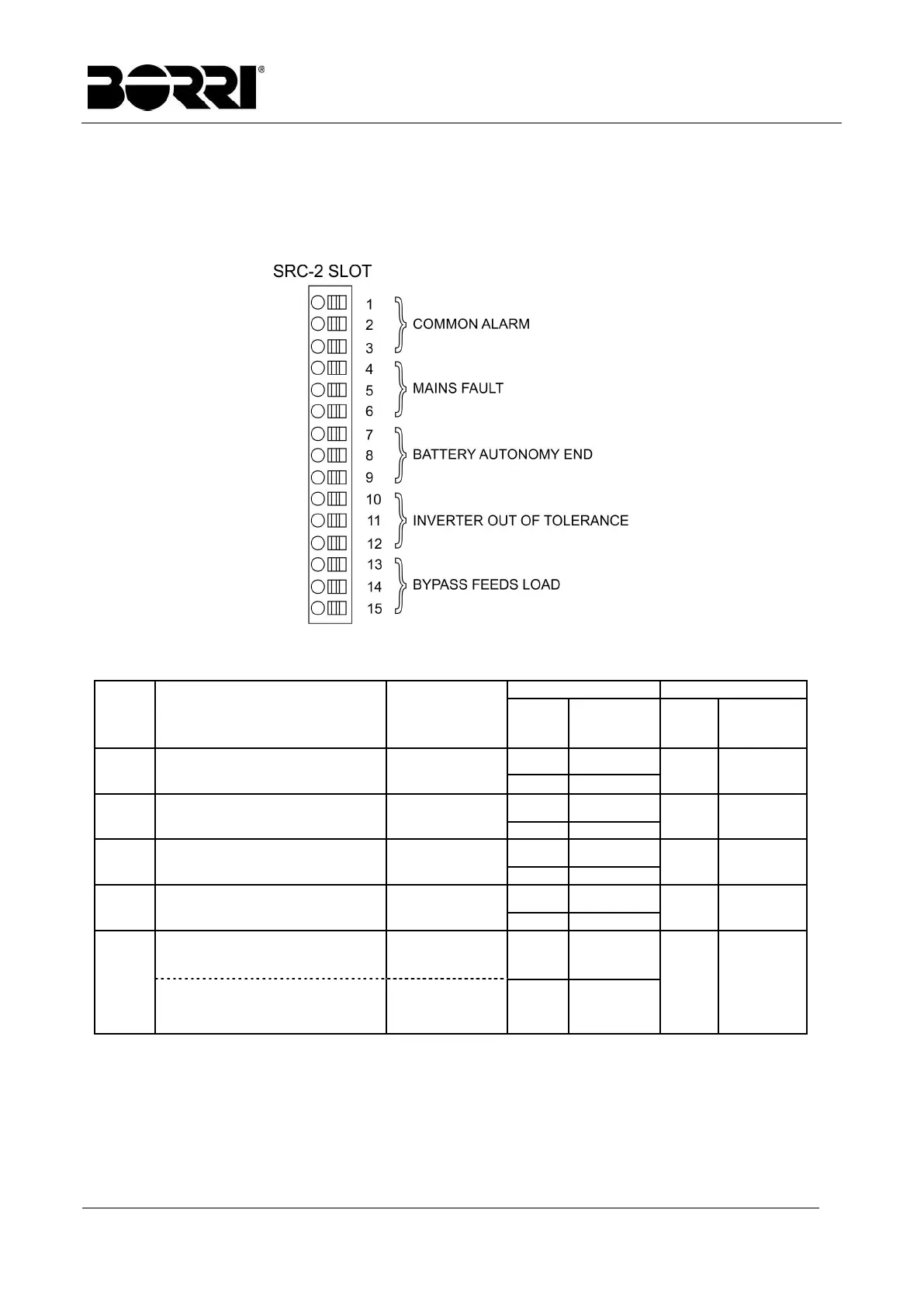

Picture 18 – Relay card terminals
Relay Alarms/Status Status
Pins
normal
operation
Name
normal
operation
RL1 Alarm = A30 COMMON ALARM
Not energized if
alarm is present
2-3 Closed
DL1 On
1-2 Open
RL2 Alarm = A1 MAINS FAULT
Not energized if
alarm is present
5-6 Closed
DL2 On
4-5 Open
RL3 Alarm = A9 BATTERY AUT END
Not energized if
alarm is present
8-9 Closed
DL3 On
7-8 Open
RL4 Alarm = A13 INV OUT OF TOL
Not energized if
alarm is present
11-12 Closed
DL4 On
10-11 Open
RL5
NORMAL MODE
Alarm = A16 BYPASS LOAD
Not energized if
alarm is present
13-14
14-15
Closed
Open
DL5 On
ECO MODE
Status = S7 BYPASS LOAD
Energized if
status is present
14-15
13-14
Closed
Open
Relay output characteristics:
250 Vac voltage 1 A current
30 Vdc voltage 1 A current resistive load
