WHEEL GUARD INSTALLATION
Wheel guard must be
attached when using disc
grinding wheels. Always keep wheel guard
between you and your work while grinding.
To attach the wheel guard DISCONNECT
tool from power source.
Position the guard on spindle neck, then
secure guard with the collar screw.
Assembly
-7-
LOCK NUT AND BACKING FLANGE
Your tool is equipped with a threaded
spindle for mounting accessories. Always
use the supplied lock nut (and backing
flange) that has same thread size as spindle.
SIDE HANDLE
The side handle used to guide and balance
the tool can be threaded into the front housing
on either side of the tool, depending on per-
sonal preference and comfort. Use the side
handle for safe control and ease of operation.
!
WARNING

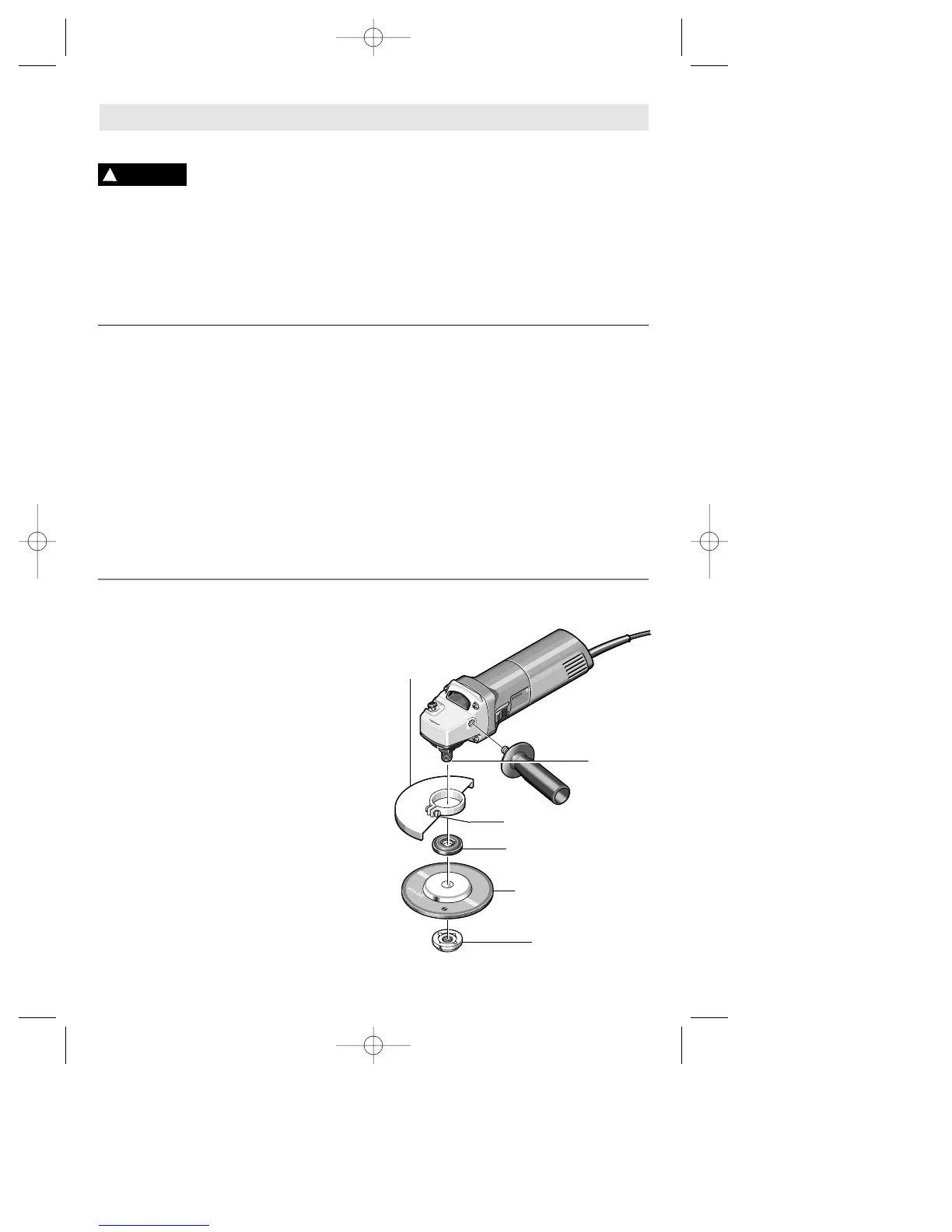

Disc Grinding Wheel Assembly
Disconnect tool from power source. Be sure
that wheel guard is in place for grinding.
Thread BACKING FLANGE onto spindle,
then place GRINDING WHEEL on the
spindle. Thread on the lock nut and tighten
nut using the supplied lock nut wrench,
while holding the spindle lock in.
TO REMOVE: Reverse procedure.
GRINDING WHEEL
LOCK NUT
SPINDLE
WHEEL
GUARD
BACKING FLANGE
COLLAR SCREW
