Bosch 4022 - Dispenser Removal

H
31
Door Compoments
4
9
8
4
9
1
7
6
2
3
5

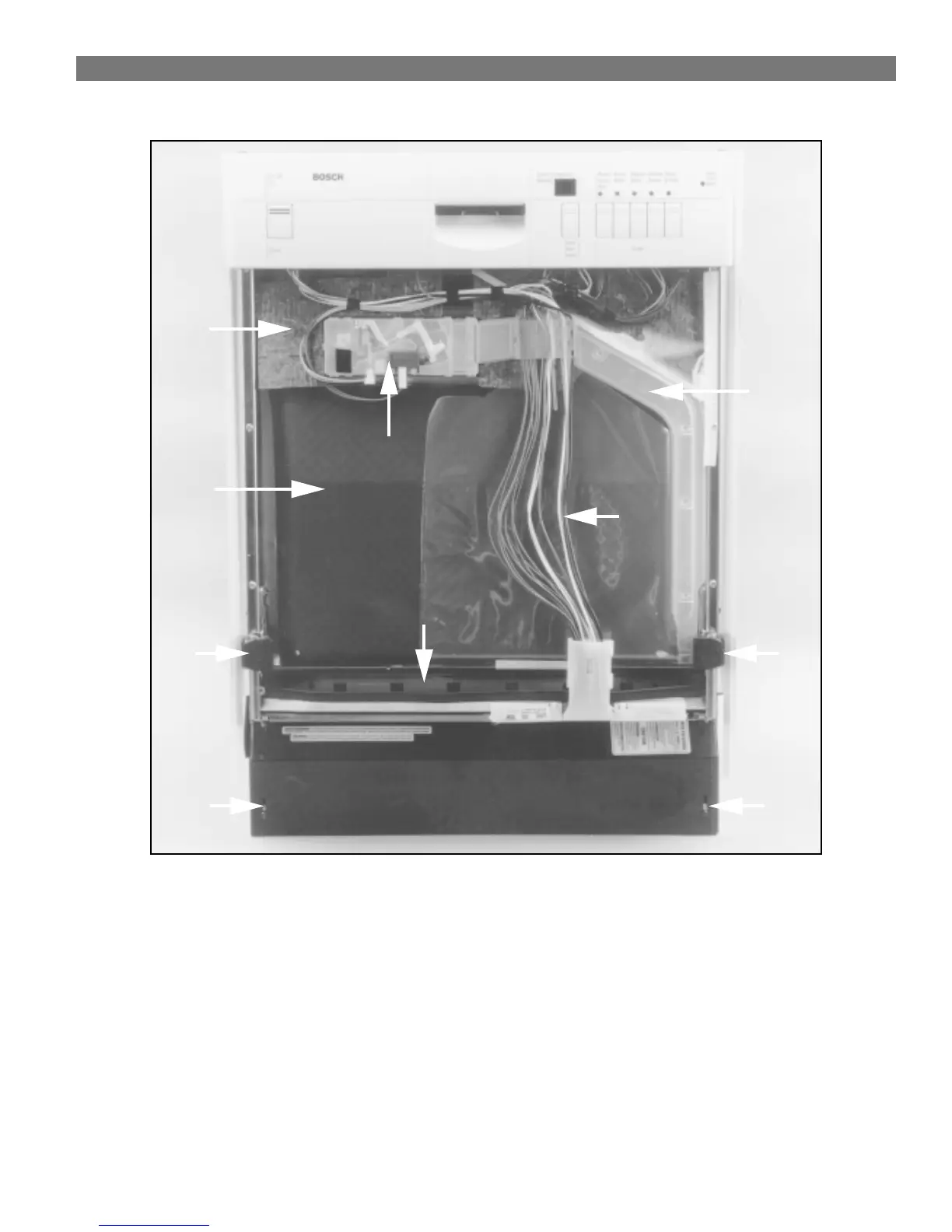

Fig. 7-5
Once the Outer Door has been removed the following components become visible.
1. Dispenser Assembly
2. Condensation Tube
3. Upper Wiring Harness
4. Door Guards
5. Door Seal
6. Bituminious Insulation
7. Cloth Fiber Insulation
Also note the Toe Kick, item 8, and the Toe Kick Mounting Screws, item 9.
