Bosch 4022 - NTC Removal

H
53
NTC Removal

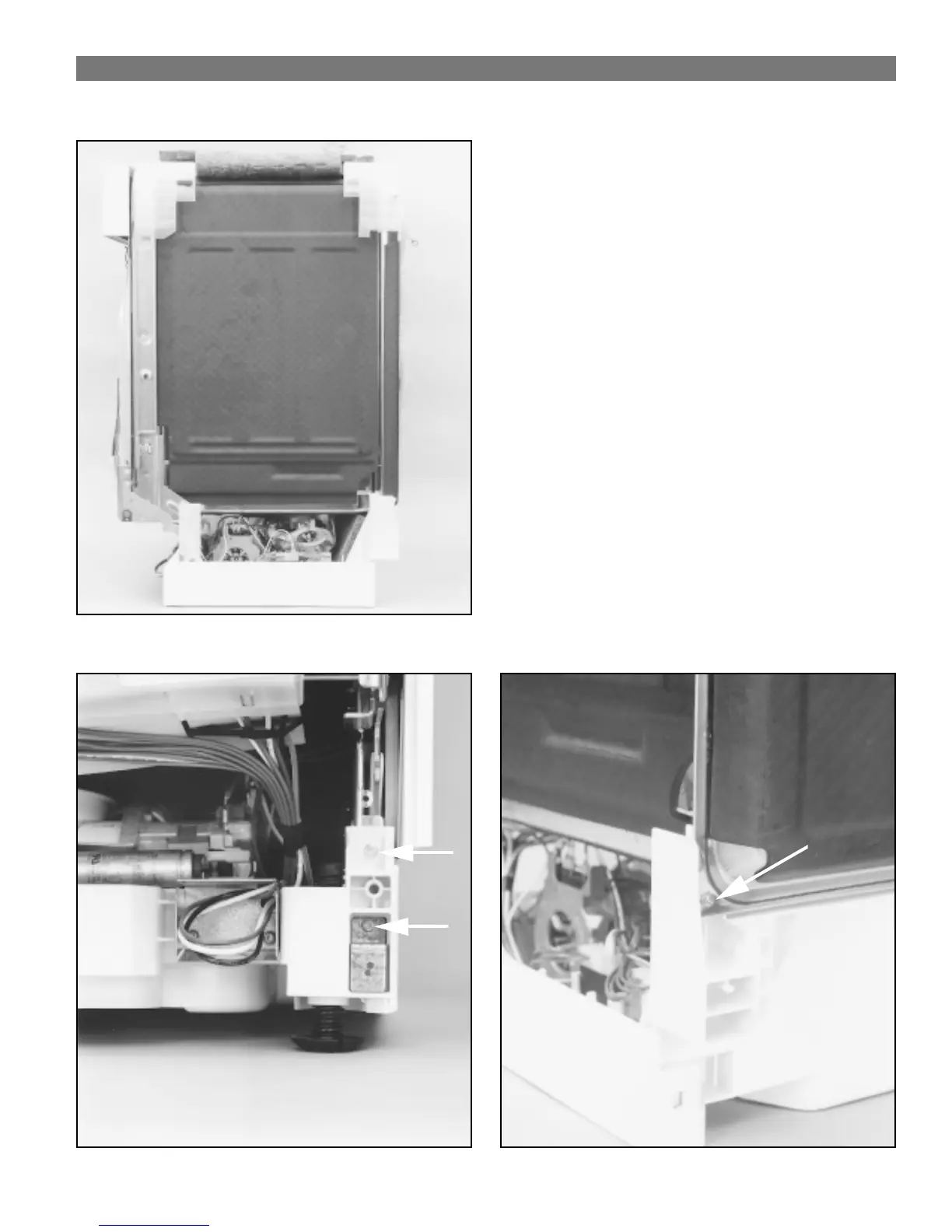

Fig. 14-2
Fig. 14-3 Fig. 14-4
To replace the NTC, first remove the Right Side
Panel, Outer Door and Toe Kick, Fig. 14-2.
Then, remove the two Front Base Mounting
Screws, Fig. 14-3.
And the single Rear Base Mounting Screw,
Fig. 14-4.
