50
H
Right Side Access

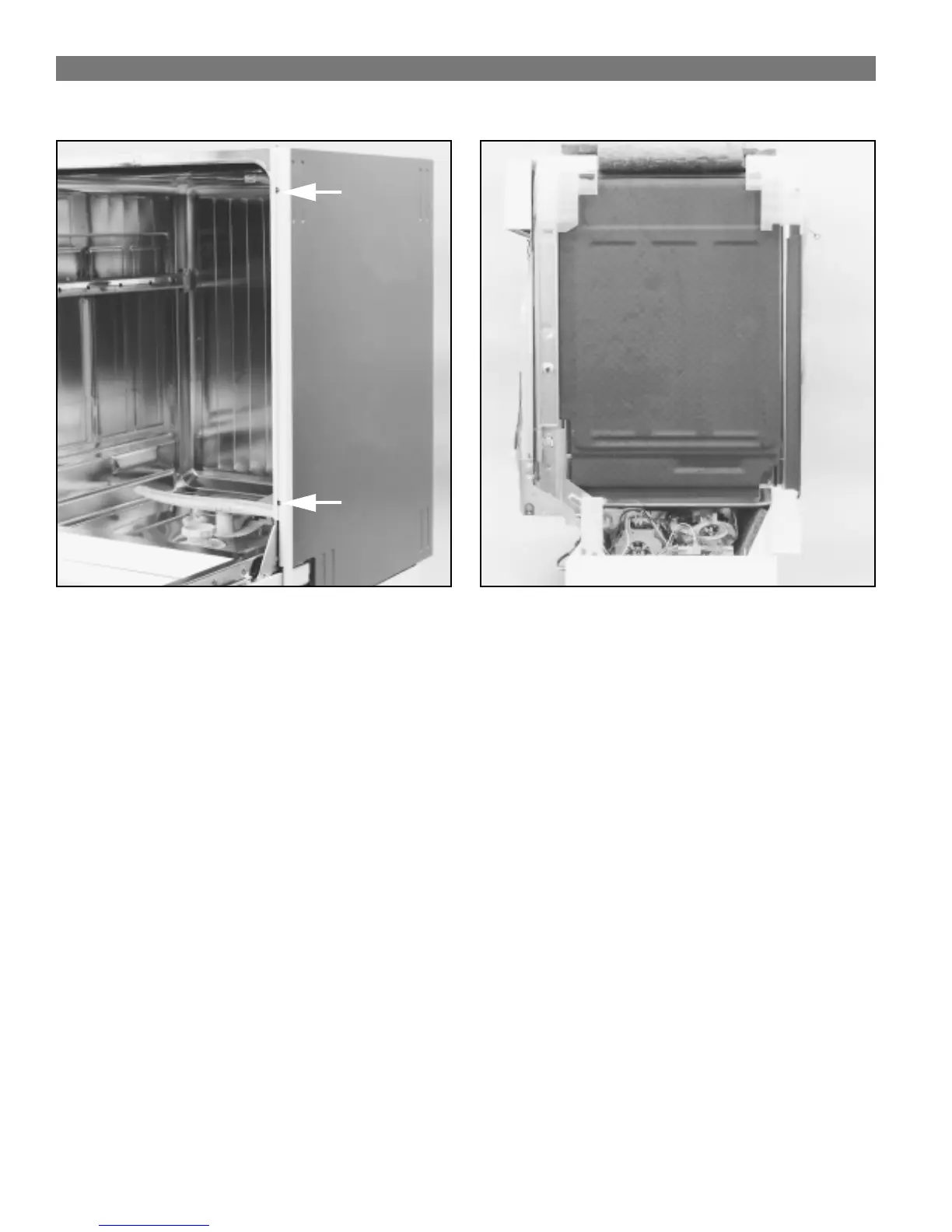

Fig. 13-1 Fig. 13-2
RIGHT SIDE PANEL REMOVAL:
Remove the two T-20 Torx screws located on the top and bottom of the Left Trim Strip, Fig. 13-1,
and then slide the Trim Strip up and off the unit.
To remove the panel, refer to Section 6, Figs. 11-2 and 11-3.
