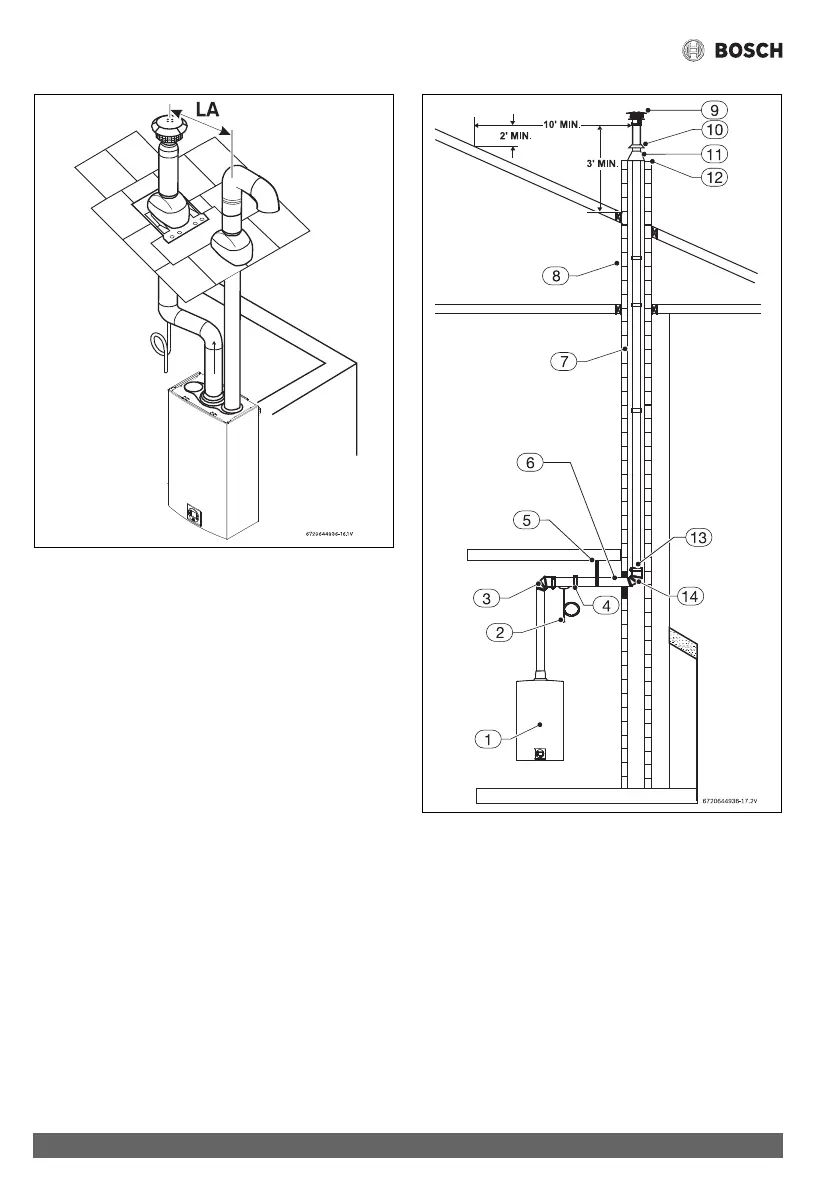

Fig. 18
[LA] 3ft minimum
Fig. 19
[1] Appliance
[2] Condensate drain
[3] Elbow
[4] Hose clamp
[5] Hanger strap
[6] Horizontal run ¼" rise/ft
[7] May be insulated if necessary
[8] Chimney
[9] Rain cap
[10] Storm collar
[11] Flashing
[12] Silicone seal
