Bosch 830 ES - Components Diagram (Group 3)

Interior components diagram and parts list
830 ES – 6 720 644 936 (2021/08)
72
13.2.3 Group 3

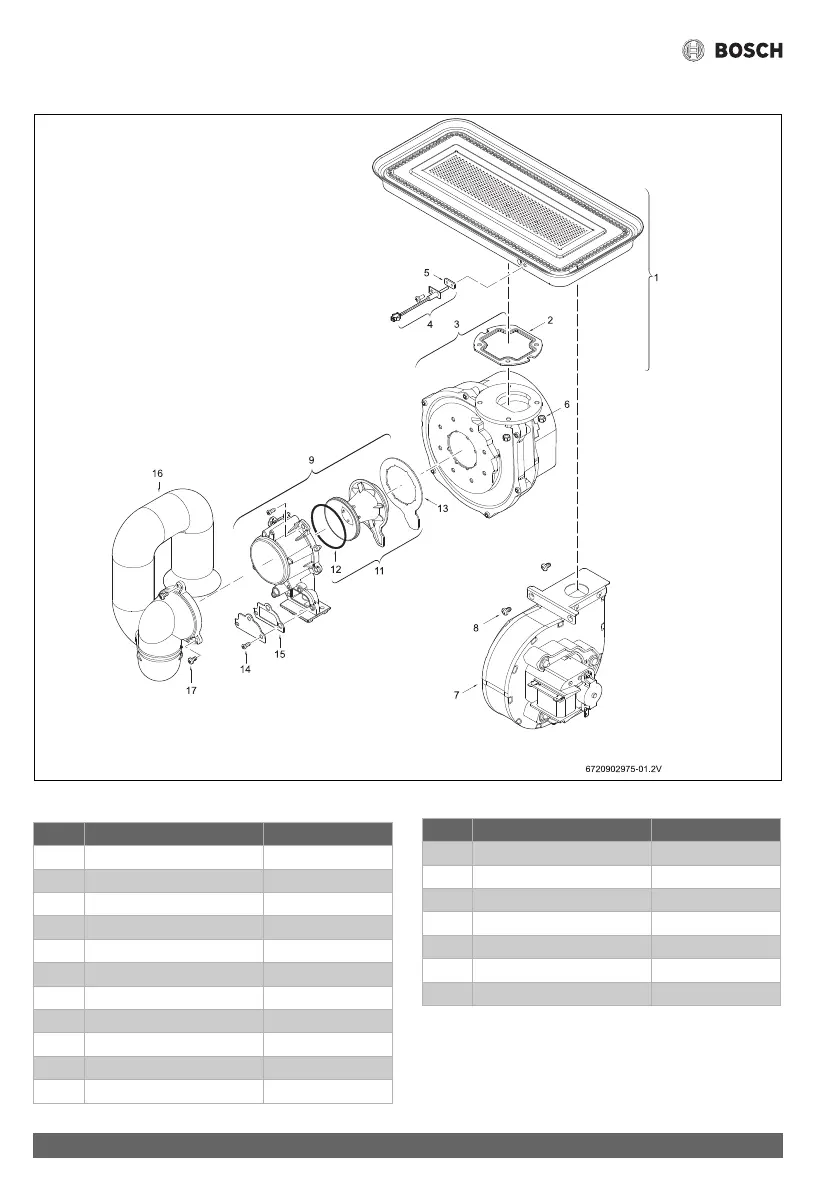

Fig. 71 Components Diagram
Table 44
Item Description Reference
1 Main burner 8 708 120 699 0
2 Burner gasket 8 704 701 087 0
3 Primary fan 8 707 204 071 0
4 Backflow temperature 8 707 206 459 0
5 Washer 8 704 701 097 0
6 Fan mount nut 2 915 011 006 0
7 Secondary fan - NG 8 707 204 094 0
7 Secondary fan - LPG 8 707 204 072 0
8 Screw 8 703 403 012 0
9 Gas / Air Mixer 8 705 700 170 0
10 Air duct O-ring 8 700 205 149 0
11 Venturi 8 700 306 226 0
12 O-ring 8 700 205 224 0
13 Mixer / Fan gasket 8 704 701 059 0
14 Screw 2 910 642 150 0
15 Plate gasket 8 701 004 049 0
16 Air supply duct 8 705 700 155 0
17 Screw 2 910 952 122 0
Item Description Reference
