13.2.4 Group 4

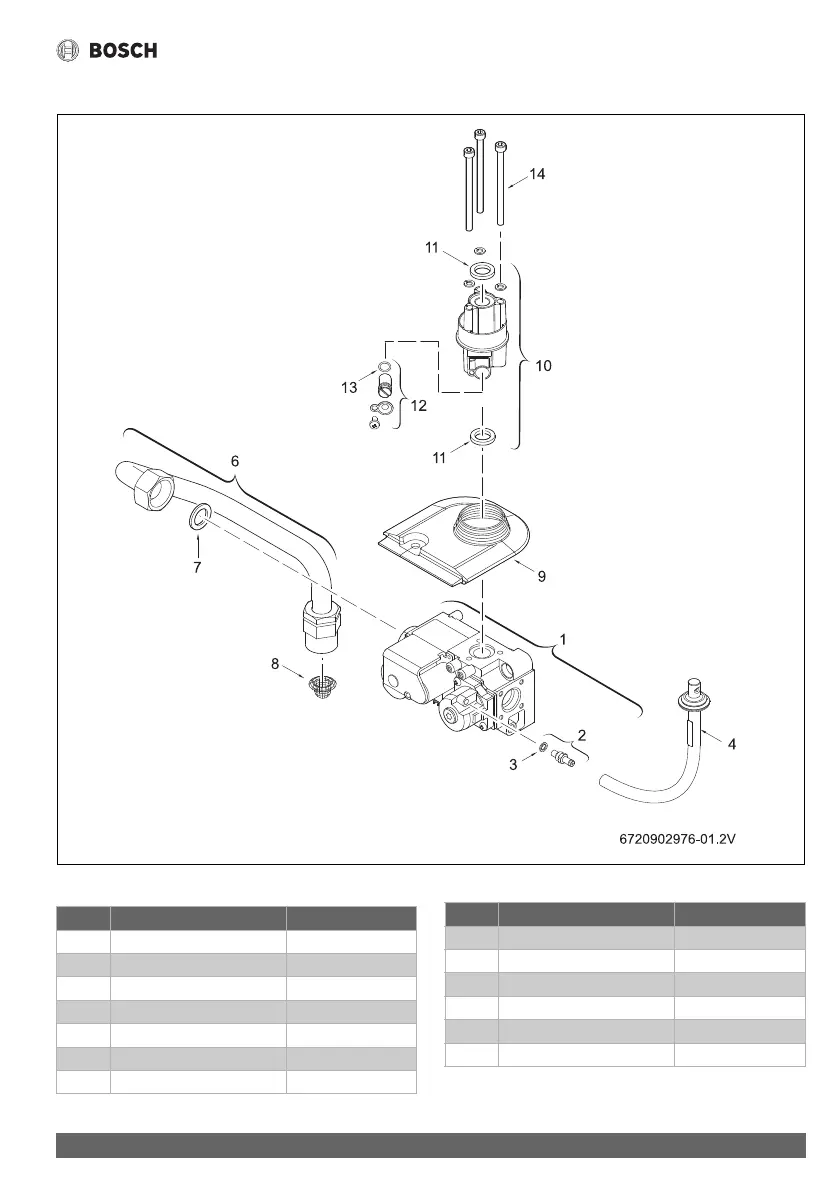

Fig. 72 Components Diagram
Table 45
Item Description Reference
1 Gas valve 8 707 021 019 0
2 Pressure tapping 8 703 404 219 0
3 Washer 8 700 203 041 0
4 Pipe 8 718 221 063 0
6 Gas supply pipe 8 700 715 389 0
7 Gas valve washer 8 700 103 014 0
8 Gas filter 8 700 507 002 0
9 Gasket Gasket
10 Gas / Fan connector 8 705 202 140 0
11 Washer 8 704 701 062 0
12 Regulation screw 8 703 404 220 0
13 O-ring 8 700 205 009 0
14 Screw 2 910 149 181 0
Item Description Reference
