English–12
0 276 001 USAen | (17.6.15) Bosch eBike Systems
eShift with SRAM DD3 Pulse
The gear hub of the SRAM DD3 Pulse works on a speed-de-
pendent basis. Regardless of which gear is engaged on the
derailleur gears, one of the three gears of the gear hub will
automatically be engaged (“ Autom. Gear Selection”).
The engaged gear will be shown briefly on the display when-
ever the gear of the gear hub is shifted.
If the eBike is brought to a standstill from a speed of more
than 6 mph, the system can automatically switch back to a
set “starting gear”. The “starting gear” can be set in the
basic settings menu (see “Displaying/Adapting Basic Set-
tings” on page English–14).
In the “Gear” mode you can use the “–” or “+” button on
the operating unit to switch back and forth between several
defined transmission ratios. The engaged transmission ra-
tio (gear) is shown on the display.
In the “Gear” manual mode, the system can also automat-
ically switch back to a set “starting gear”.
The drive unit recognizes the gear shift and briefly reduces
the motor assistance level as a result of it, which means the
gear can also be shifted at any time under load or on a hill.
eShift with Shimano Di2
For Shimano eShift you use the Shimano control lever to
shift gears.
The engaged gear will be shown briefly on the display when-
ever the gear of the gear hub is shifted.
The drive unit recognizes the gear shift and briefly reduces
the motor assistance level as a result of it, which means the
gear can also be shifted at any time under load or on a hill.
If the eBike is brought to a standstill from a speed of more
than 6 mph, the system can automatically switch back to a
set “starting gear”. The “starting gear” can be set in the
basic settings menu (see “Displaying/Adapting Basic Set-
tings” on page English–14).
Indications and Settings of the
on-board computer
Switching the on-board computer On/Off
To switch on the on-board computer, briefly press the
On/Off button 5. When the internal battery pack is suffi-
ciently charged, the on-board computer can also be
switched on when not inserted in the holder.
To switch off the on-board computer, press the On/Off
button 5.
When the on-board computer is not inserted in the holder
and no button is pressed, it automatically switches off after
1 min to save energy.
If you do not use your eBike for several weeks, re-
move the on-board computer from its holder. Store
the on-board computer in a dry environment at room
temperature. Regularly recharge the on-board comput-
er’s battery pack.

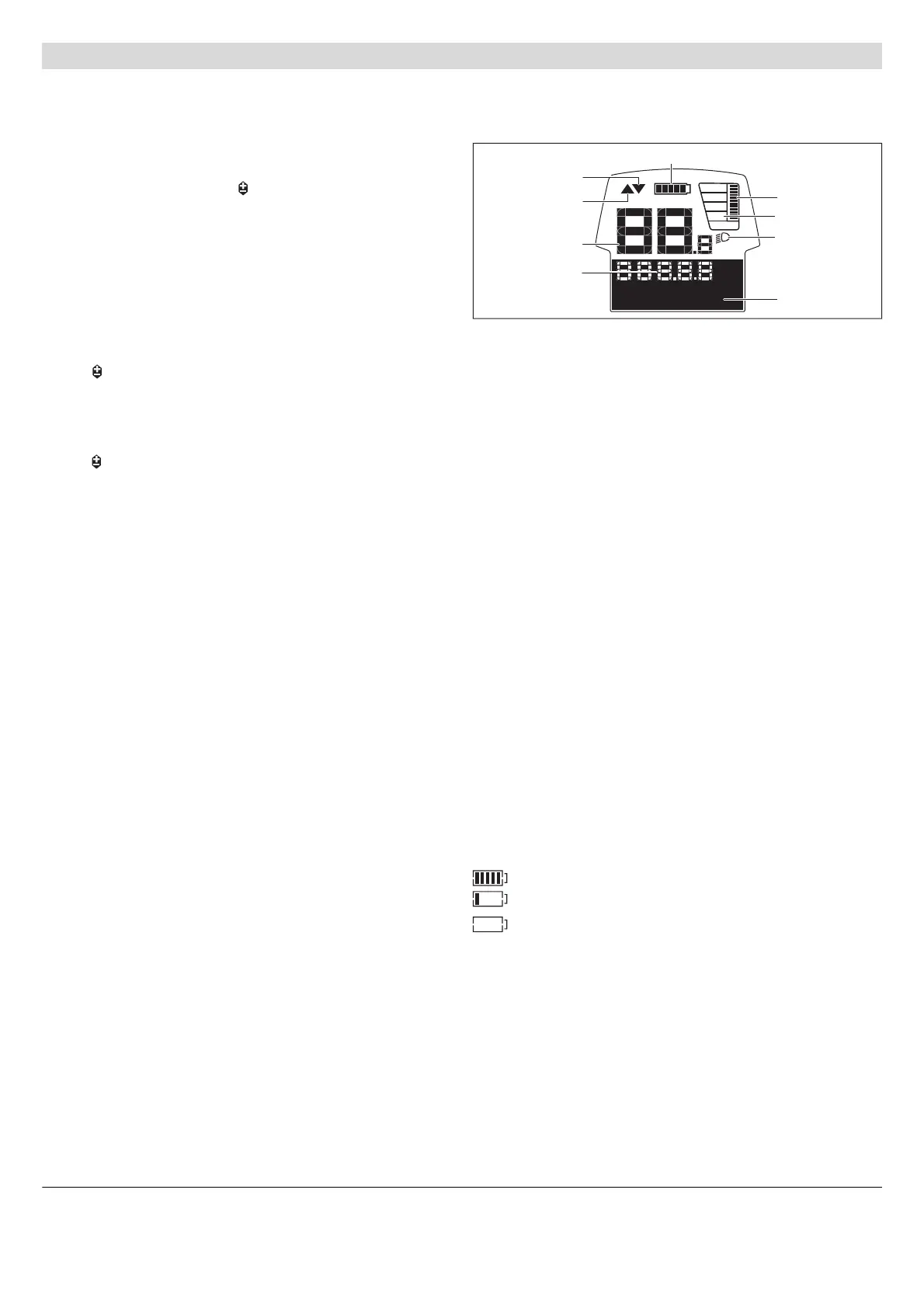

Battery charge-control indicator
The battery pack charge-control indicator i indicates the
charge condition of the eBike’s battery pack, and not the
charge condition of the on-board computer’s internal bat-
tery. The charge condition of the eBike’s battery pack can
also be read from the battery pack’s LEDs.
On indicator i, each bar of the battery pack symbol is equiv-
alent to a capacity of approx. 20 %:
Once there are no remaining LED bars illuminated
on the charge-control indicator, the motor support
is gently switched off and the charge-control indica-
tor begins to flash. The flashing charge-control indi-
cator means there is only enough battery power re-
maining to power the eBike lights for approximately
2 more hours. This does not account for other con-
sumers (e.g., automatic gearbox, charging external
devices at the USB port).
When the on-board computer is removed from holder 4,
the last indicated battery pack charge condition is stored.
The eBike battery is fully charged.
The eBike battery should be recharged.
TURBO
SPORT
TOUR
ECO
OFF
MPH
KM/H
Range
AMM
PMWH
MIN
MPH
KM/H
d
b
c
a
f
e
g
h
i
