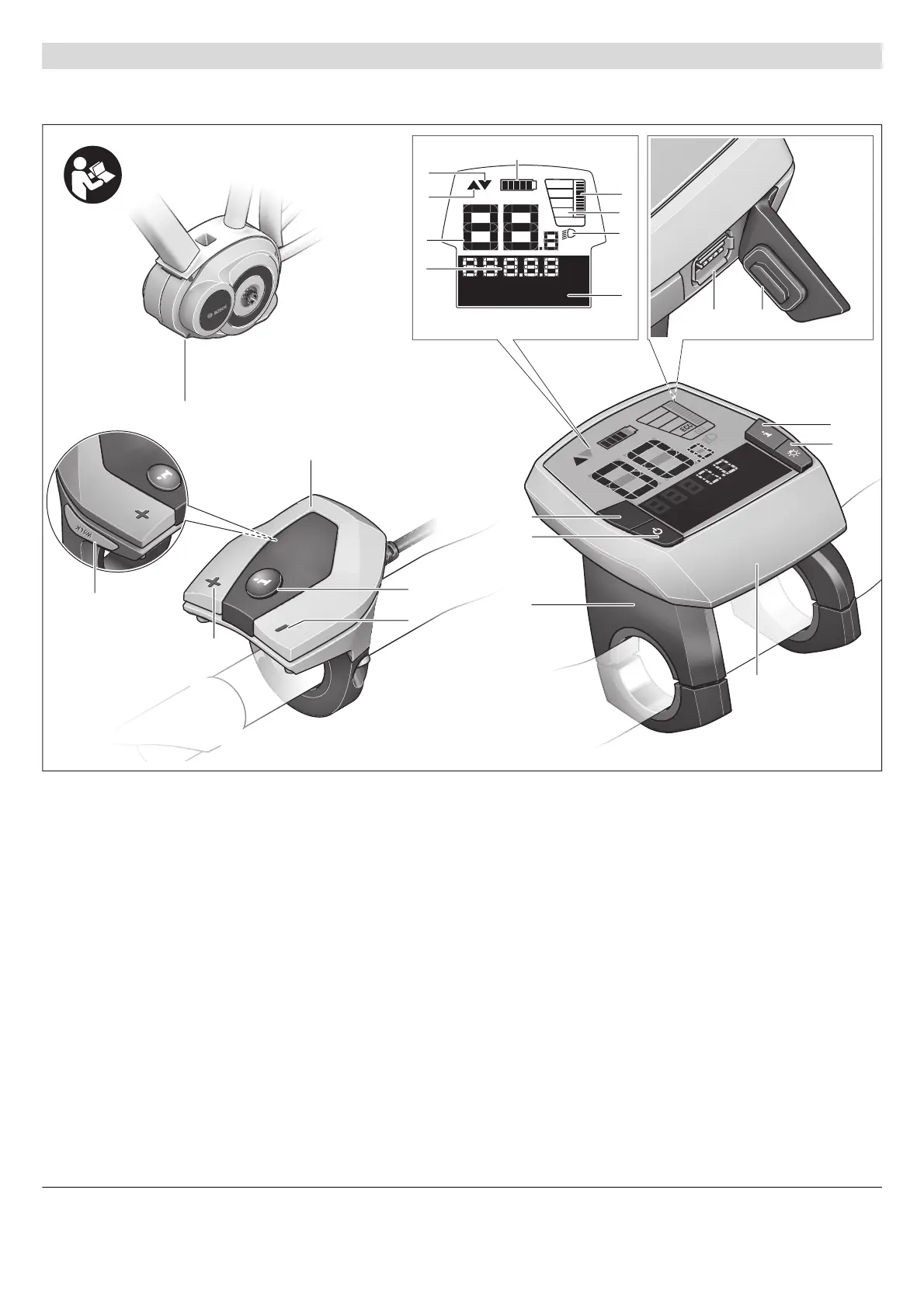

Component View (On-board Computer/Operating Unit/Drive Unit)
Product Features
1 Display function button “i”
2 “Light” button
3 On-board computer Intuvia
4 Holder for on-board computer Intuvia
5 On/Off button for on-board computer
6“RESET” button
7 USB port
8 Protective cap for USB port
9 Drive unit
10 Operating unit
11 Display function button “i” on the operating unit
12 Reduce assistance/scroll down button “–”
13 Increase assistance/scroll up button “+”
14 Push assistance button “WALK”*
*Not executable in some countries
On-board Computer Information
a Drive unit assistance indicator
b Assistance level indicator
c Light indicator
d Text indicator
e Value indicator
f Speed indicator
g Shift recommendation: higher gear
h Shift recommendation: lower gear
i Battery charge-control indicator
TURBO
SPORT
TOUR
MPH
KM/H
Range
AMM
PMWH
MIN
MPH
KM
/H
RESET
TURBO
SPORT
TOUR
MPH
KM/H
Range
A
MM
PMWH
MIN
MPH
K
M
/H
TURBO
SPORT
TOUR
ECO
OFF
MPH
KM/H
Range
AMM
PMWH
MIN
MPH
KM/H
3
2
1
78
9
d
b
c
a
f
e
6
5
4
13
11
12
10
14
g
h
i

Bosch Active Line Specifications

General

Rated Power	250 W
Max Torque	40 Nm
Weight	3.2 kg
Maximum Assistance Speed	25 km/h
Operating Voltage	36 V
Walk Assistance	Yes
Battery Compatibility	Bosch PowerPack
Display Compatibility	Bosch Purion, Intuvia
