Bosch Active Line Owner's Manual

English–21
Bosch eBike Systems 0 276 001 USAen | (17.6.15)
Technical Data
Assembly
Inserting and removing the battery pack
To insert or remove the battery pack in/from the eBike,
please read and follow the battery pack operating instruc-
tions.

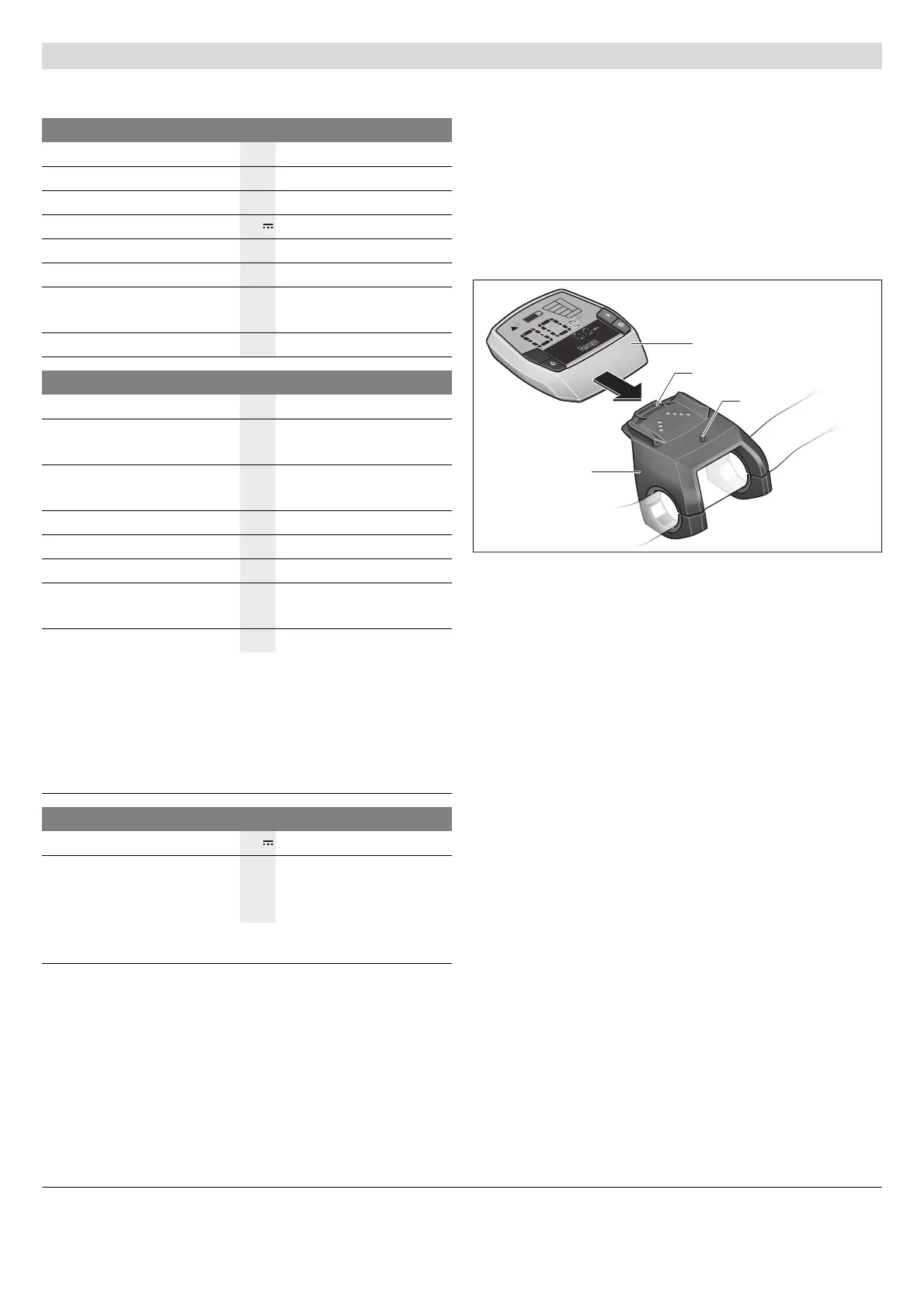

Inserting and removing the on-board computer
3 On-board computer
4 Holder for on-board computer
15 Lock latch for on-board computer
16 Locking screw for on-board computer
To insert the on-board computer 3, slide it from the front
into the holder 4.
To remove the on-board computer 3, press the lock latch
15 and slide the on-board computer toward the front out of
the holder 4.
 Remove the on-board computer when you park the
eBike.
It is possible to secure the display unit against removal in
the holder. To do so, remove the holder 4 from the handle-
bar. Put the display unit in the holder. Screw the locking
screw 16 (thread M3, 8 mm long) from below into the
thread provided in the holder. Attach the holder back onto
the handlebar.
Drive unit Drive Unit
Article number 0 275 007 029
Rated continuous power
W 250
Torque at drive, max.
Nm 50
Rated voltage V36
Operating temperature °F +23...+104
Storage temperature °F +14...+122
Degree of protection IP 54 (dust and splash
water protected)
Weight, appox. lb 8.8
On-board computer Intuvia
Article number 1 270 020 906
Max. charging current,
USB connection mA 500
Charging voltage,
USB connection V5
Operating temperature °F +23...+104
Storage temperature °F +14...+122
Charging temperature °F +32...+104
Degree of protection IP 54 (dust and splash
water protected)
Weight, appox. lb 0.3
This device is in compliance with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device must not cause harmful interference, and
(2) this device must accept any interference that is received, in-
cluding interference that may cause undesired operation.
This device is in compliance with CAN ICES-3(B)/NM B-3(B).
Bosch eBike system uses FreeRTOS (see www.freertos.org)
Bike lights*
Rated voltage V6
Power output
– Front light
– Rear light
W
W
8.4
0.6
* Not possible via the eBike battery pack in all country-specific ver-
sions, depending on the statutory regulations
ECO
MPH
KM/H
RESET
EC
O
M
P
H
KM/H
4
3
15
16

Bosch Active Line Specifications

General

Rated Power	250 W
Max Torque	40 Nm
Weight	3.2 kg
Maximum Assistance Speed	25 km/h
Operating Voltage	36 V
Walk Assistance	Yes
Battery Compatibility	Bosch PowerPack
Display Compatibility	Bosch Purion, Intuvia
