Bosch Active Series Owner's Manual

English – 11
Assembly
u Deactivate and remove the on-board computer
if you are fitting or working on the holder. This
avoids malfunctions/misuse.
u Deactivate and remove the on-board computer
if you are fitting or removing the securing
screw. This avoids malfunctions/misuse.

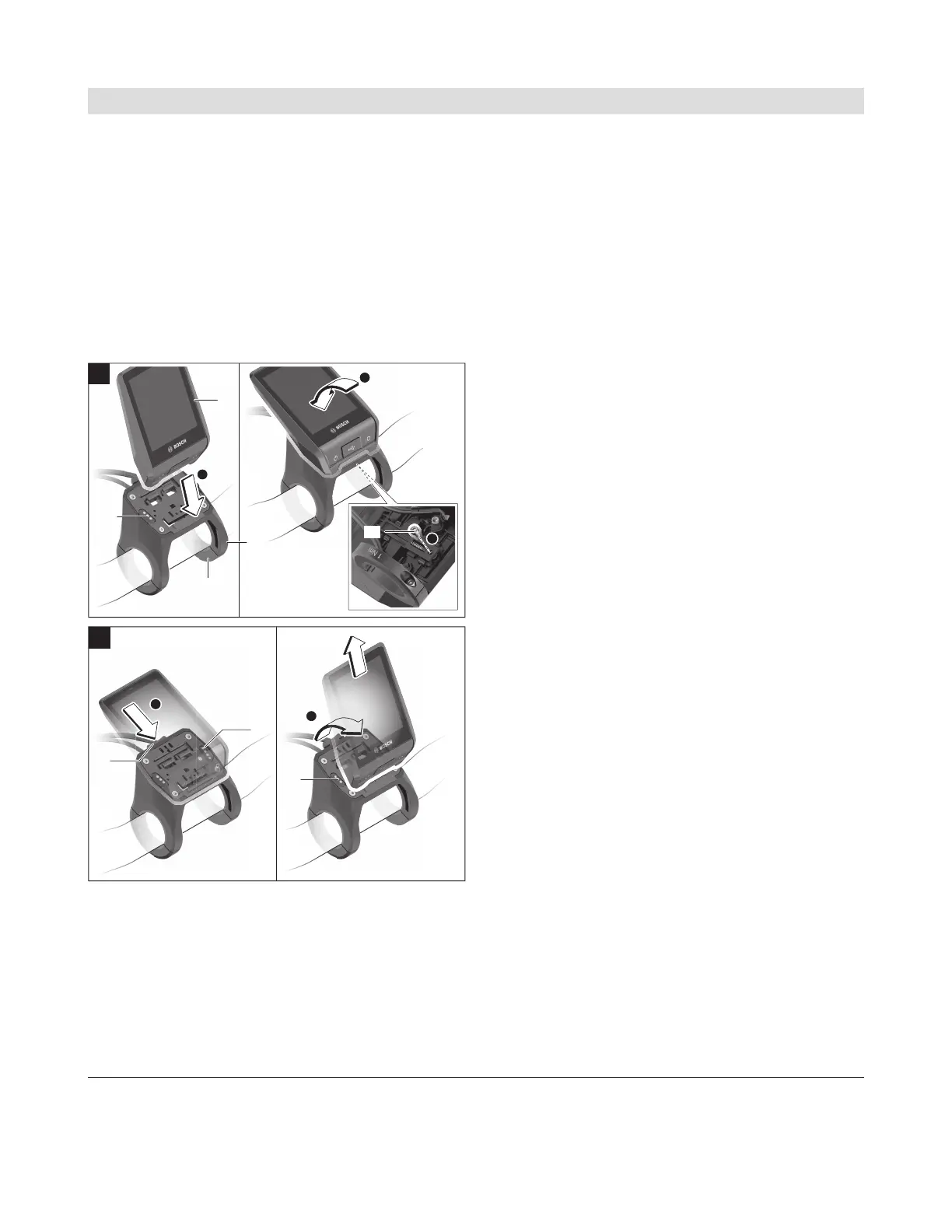

Inserting and removing the on-board
computer
1
2
3
(5)
(4)
(18)
(20)
1
2
(20)
(19)
(9)
A
B
(4)
Holder for on-board computer
a)
(5)
On-board computer
(9)
Release mechanism
(18)
Locking screw for on-board computer
(19)
Drive unit contacts
(20)
Operating unit contacts
a) For mounting on the handlebars, custom solutions are pos-
sible even without the use of the handlebar clamps.
To insert the on-board computer (5), first fit the
lower section into the holder(4) and then press it for-
ward until you can feel that the on-board computer is
fixed in place. Make sure that the on-board computer
is firmly fixed in place.
To remove the on-board computer(5), press on the
release mechanism(9) and take out the on-board
computer from above.
u When you park up the eBike, remove the on-
board computer.
It is possible that the release mechanism may become
jammed by a screw. To rectify this, remove the
holder(4) from the handlebars. Put the on-board
computer in the holder. Screw the locking screw(18)
(M3 thread, 5mm long) from below into the corre-
sponding thread in the holder. Mount the holder back
on the handlebars.
Note: The locking screw is not designed to prevent
theft.
Bosch eBike Systems 1 270 U20 BN2 | (14.03.2023)
