Bosch AutoDome VG4-A-9230 Series User Manual

AutoDome Kit Number
Camera Assembly
Power and Mounting Kit
Family
CPU
Camera
Options
Housing
Options
Comms
Options
Power/Mounting
Options
Fiber
Option
Camera Assembly

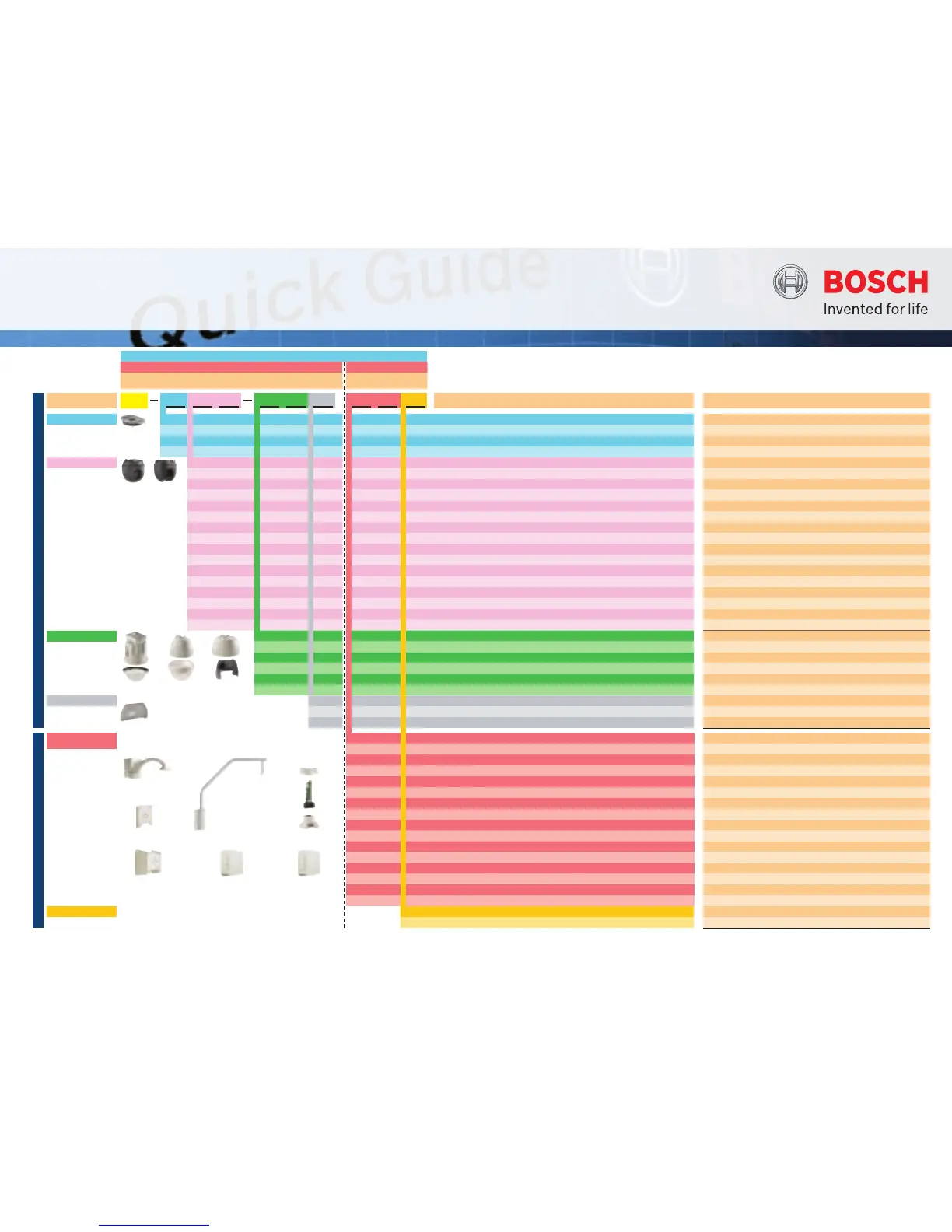

AutoDome Camera Quick Guide
VS-FP-en-16_F01U518360_02
1 100 Series Controller (CPU)
2 200 Series Controller (CPU)
3 300 Series Controller (CPU)
5 500i Series Controller (CPU)
VG4-MCPU-100
VG4-MCPU-200
VG4-MCPU-300
VG4-MCPU-500
VG4-MCAM-11
VG4-MCAM-21
VG4-MCAM-12
VG4-MCAM-22
VG4-MCAM-13
VG4-MCAM-23
VG4-MCAM-14
VG4-MCAM-24
VG4-MCAM-51
VG4-MCAM-61
VG4-MCAM-52
VG4-MCAM-62
VG4-MCAM-53
VG4-MCAM-63
VG4-MCAM-54
VG4-MCAM-64
VG4-MHSG-CC
VG4-MHSG-CT
VG4-MHSG-PC
VG4-MHSG-PT
VG4-MHSG-EC
VG4-MHSG-ET
VG4-MTRN-0 (for use with the 100 Series CPU only)
VG4-MTRN-S
VG4-MTRN-E
(no additional module required)
VG4-A-PA0
VG4-A-PA0 + LTC 9541/01 (Mast Adapter Bracket)
VG4-A-PA0 + LTC 9542/01 (Corner Adapter Bracket)
VG4-A-9230
VG4-A-9543
VG4-A-PA1
VG4-A-PA1 + LTC 9541/01 (Mast Adapter Bracket)
VG4-A-PA1 + LTC 9542/01 (Corner Adapter Bracket)
VG4-A-PSU1 + VG4-A-9230
VG4-A-PSU1 + VG4-A-9543
VG4-A-PA2
VG4-A-PA2 + LTC 9541/01 (Mast Adapter Bracket)
VG4-A-PA2 + LTC 9542/01 (Corner Adapter Bracket)
VG4-A-PSU2 + VG4-A-9230
VG4-A-PSU2 + VG4-A-9543
(no additional module required)
Add "F" to the end of the Power Supply part number
AutoDome
Modules
Cameras
Fiber Optics
CPUs
Power Supplies
& Mounts
Communications
Housings
VG4
AutoDome Kit Number
Camera Assembly Power and Mounting Kit
Family
CPU
Camera
Options
Housing
Options
Comms
Options
Power/Mounting
Options
Fiber
Option
Camera AssemblyPendant Power and Mounting Kits
Module Part #Description
1 1 18x Color PTZ Camera (PAL)
2 1 18x Color PTZ Camera (NTSC)
1 2 18x Day/Night PTZ Camera (PAL)
2 2 18x Day/Night PTZ Camera (NTSC)
1 3 26x Day/Night PTZ Camera (PAL)
2 3 26x Day/Night PTZ Camera (NTSC)
1 4 36x Day/Night PTZ Camera (PAL)
2 4 36x Day/Night PTZ Camera (NTSC)
5 1 2.7-13.5mm Color Fixed Camera (PAL)
6 1 2.7-13.5mm Color Fixed Camera (NTSC)
5 2 2.7-13.5mm Day/Night Fixed Camera (PAL)
6 2 2.7-13.5mm Day/Night Fixed Camera (NTSC)
5 3 5-50mm Color Fixed Camera (PAL)
6 3 5-50mm Color Fixed Camera (NTSC)
5 4 5-50mm Day/Night Fixed Camera (PAL)
6 4 5-50mm Day/Night Fixed Camera (NTSC)
C C In-Ceiling Housing with Clear Bubble
C T In-Ceiling Housing with Tinted Bubble
P C Indoor Pendant Housing with Clear Bubble
P T Indoor Pendant Housing with Tinted Bubble
E C Outdoor Pendant Housing with Clear Bubble
E T Outdoor Pendant Housing with Tinted Bubble
0 Fixed Communications
S Standard (Coax/UTP) Communications
E Ethernet (TCP/IP) Communications
24 VAC In-Ceiling Assembly
1
0 W 24 VAC Pendant Arm (Wall Mount)
1
0 M 24 VAC Pendant Arm (Mast Mount)
1
0 C 24 VAC Pendant Arm (Corner Mount)
1
0 R 24 VAC Pendant Roof Mount
1
0 P 24 VAC Pendant Pipe Mount
1
1 W 120 VAC Pendant Arm (Wall Mount)
1 M 120 VAC Pendant Arm (Mast Mount)
1 C 120 VAC Pendant Arm (Corner Mount)
1 R 120 VAC Pendant Roof Mount
1 P 120 VAC Pendant Pipe Mount
2 W 230 VAC Pendant Arm (Wall Mount)
2 M 230 VAC Pendant Arm (Mast Mount)
2 C 230 VAC Pendant Arm (Corner Mount)
2 R 230 VAC Pendant Roof Mount
2 P 230 VAC Pendant Pipe Mount
No Fiber
F With Fiber
2,3
1
24 VAC Kits do not include a power transformer. Customer must supply 24 VAC, 75 W transformer (VG2-A-PSU or equivalent).
2
Fiber option only available on domes equipped with Coax/UTP Communications Module.
3
Fiber Optic Module (FOM) is available for pendant-style housings only. For in-ceiling housings, an LTC 4628 may be used.
CPU
Module
PTZ
Module
Fixed
Module
In-Ceiling
Indoor
Pendant
Outdoor
Pendant
Communications Module
Corner Mount Adapter
Mast Mount Adapter
Wall Mount
Pendant Arm
Remote Power Unit
Roof Mount
Roof (Parapet)
Remote Power Unit
Pipe Mount
Pipe
