10
|
Bosch Climate 5000 Series Wired Wall Thermostat User Manual
06.2019 | Bosch Thermotechnology Corp.
Data subject to change

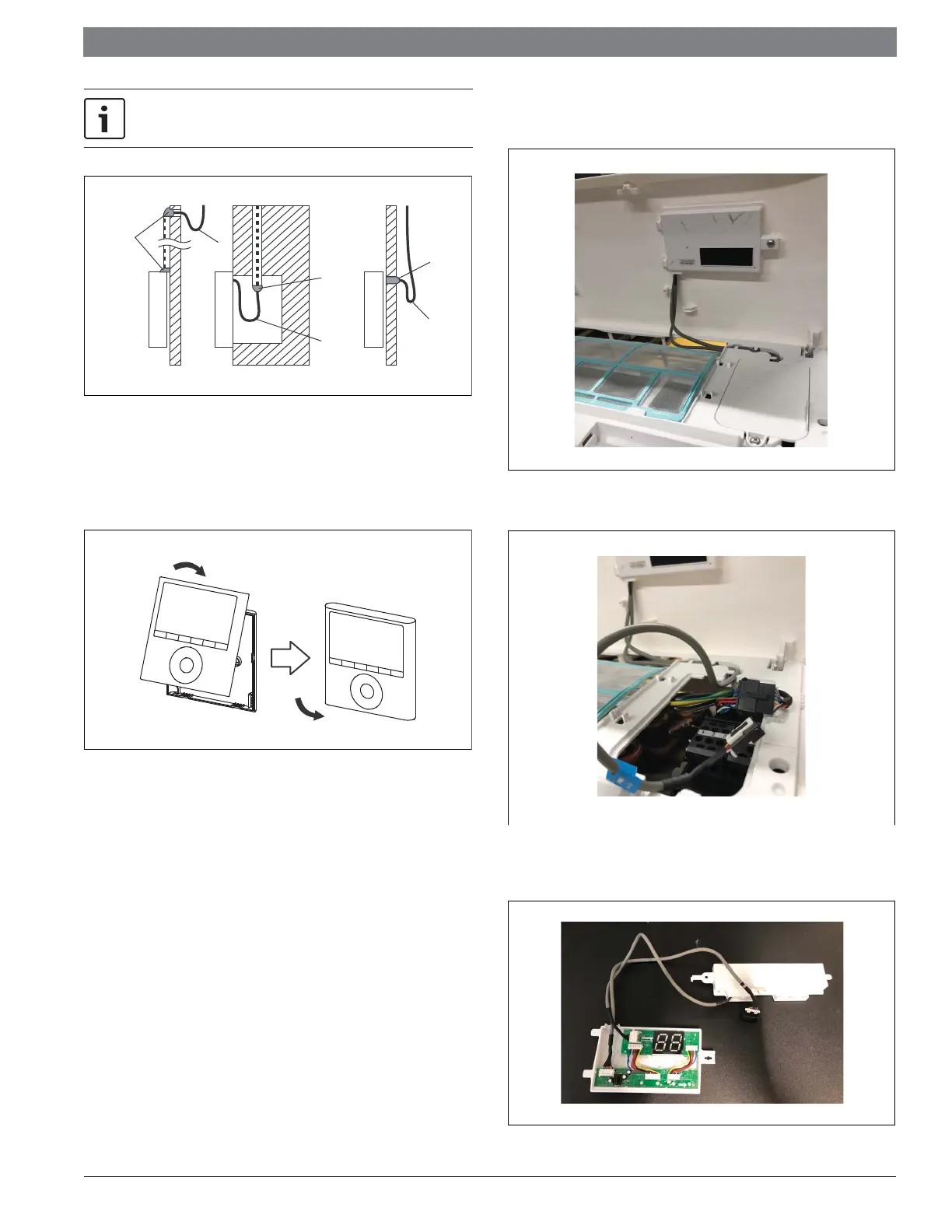

DO NOT allow water to enter the wired wall thermostat.
Use the trap and putty to seal the wires.
Figure 13
Putty
Putty
Putty
Tra p
Tra p
Tra p
5.7 Reattach the Cover of the Wired Wall Thermostat
1. Avoid clamping during installation.
Figure 14
5.8 Installation Guide for Wall Mounted Indoor Unit Only
1. Open the front panel of the Wall Mounted Indoor Unit
Figure 15
2. Disconnect the wire from the main control board.
Figure 16
3. Identify the components. From left to right,display board and adapter
board.
Figure 17
To Next Page
