Bosch Climate 5000 Series Ductless Air Conditioner / Heat Pump Outdoor Unit Service Manual
04.2020 | Bosch Thermotechnology Corp.Data subject to change
9.6 Models: 24K Regular: BMS500-AAS024-1CSXRA
24K Hyper Heat: BMS500-AAS024-1CSXHB
30K & 36K Light Commercial for Wall Mounted IDU:
BMS500-A AS030-1C SXRB, BMS500-AAS036-1CSXRB
36K Light Commercial for Ducted & Cassette IDU:
BMS500-AAS036-1CSXLB
9.6.1 Removing the panel plate
1. Stop operation of the system and turn “OFF” the power breaker.
2. Remove the big handle À rst,then remove the top cover (7 screws).
3. Remove the screws of front panel (11 screws)

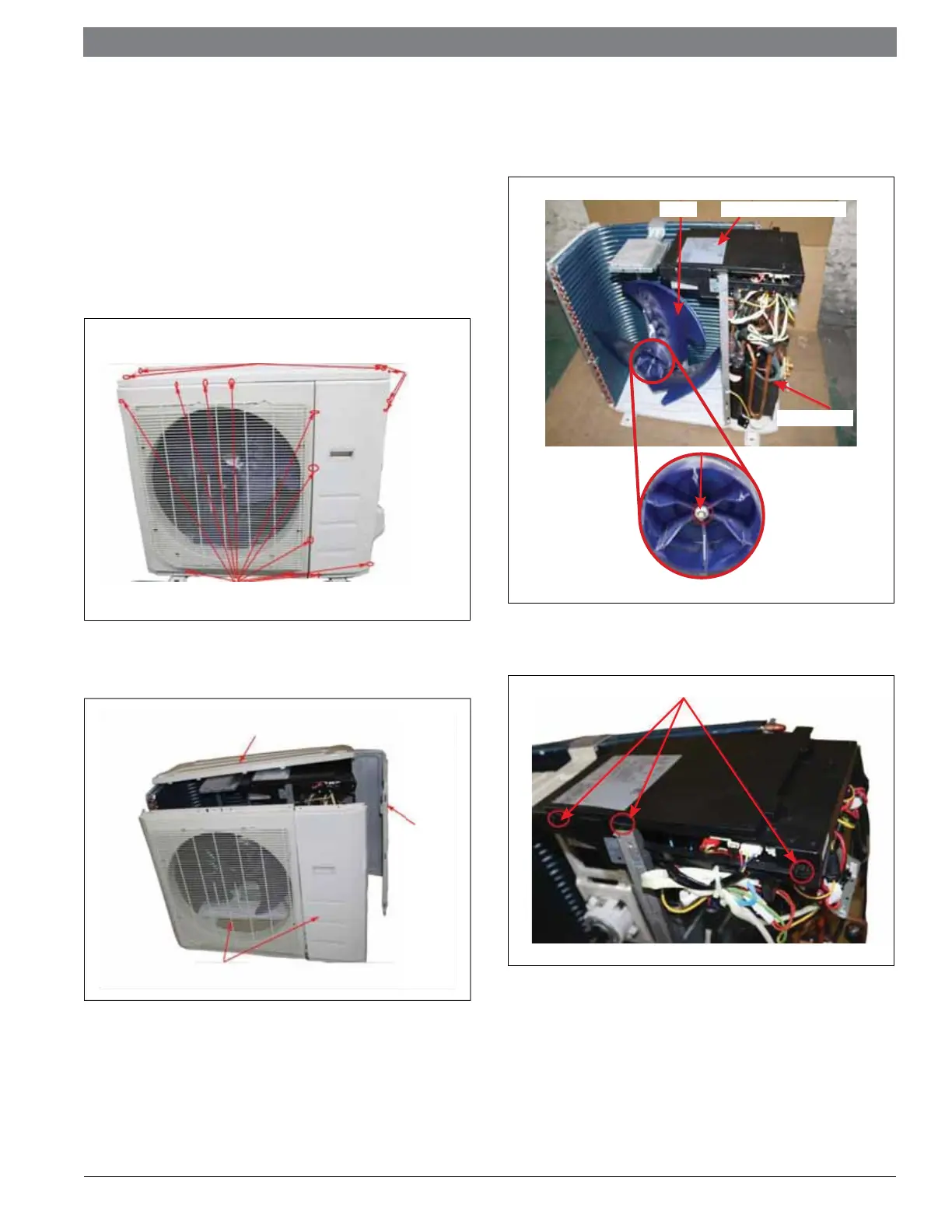

Figure 117
Screws of top panel (3 screws, 1 screw is under the big handle)
4 screws
of the big
handle
11 screws of front panel
4. Remove the screws of the right side panel (13 screws)
Figure 118
9.6.2 Removing the fan assembly
1. Remove the panel plates.
2. Remove the hex nut À xing the fan, and then remove the fan.
Figure 119
Compressor
Fan Electronic control box
3. UnÀ x the hooks and then open the electronic control box cover.
Figure 120
To Next Page
