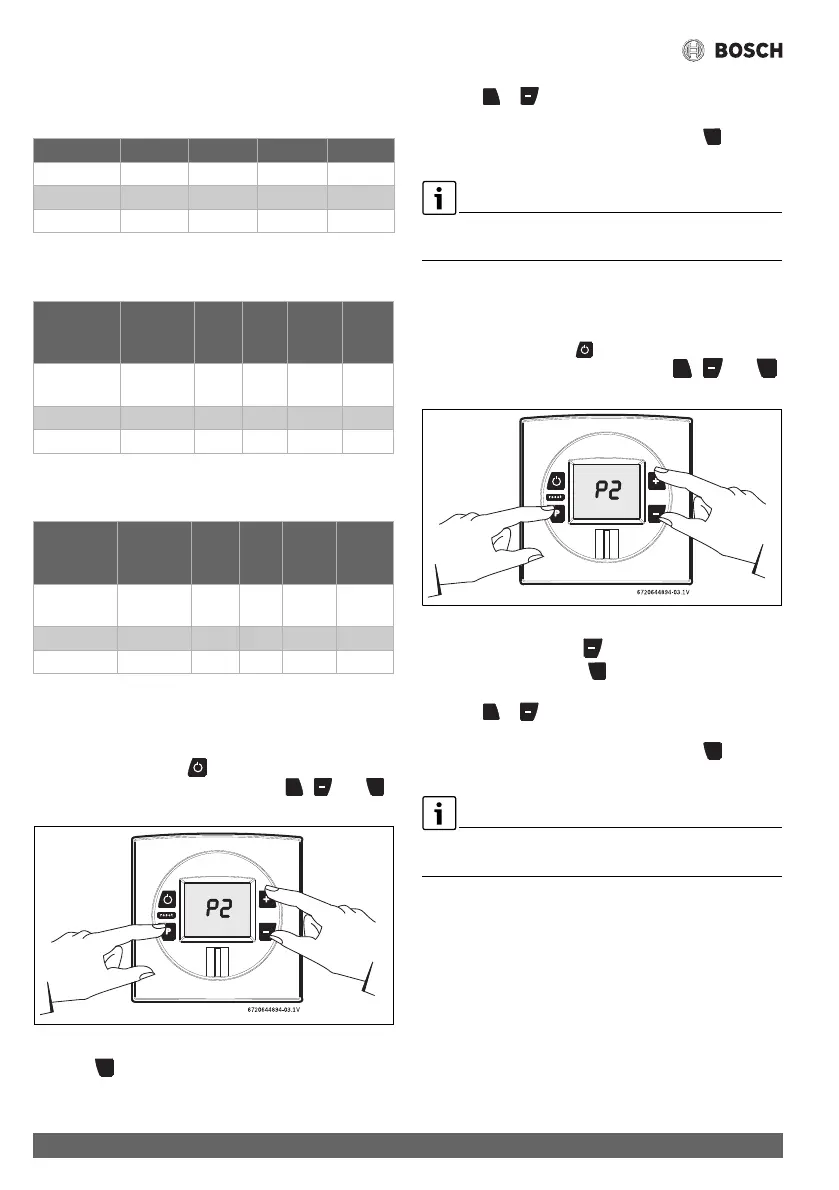

Installation instructions
C 950/C 1050 (Pro TL 175 C/199 C) – 6 720 805 440 (2019/10)
36
PP Concentric up and out venting - Only for C 1050 (Pro TL
199 C)
Table 34 Fan speed adjustment for concentric up and out vent
Cascade common venting system - C 1050 (Pro TL 199 C)
Table 35 Fan speed adjustment for cascade vent
Cascade common venting system - C 950 (Pro TL 175 C)
Table 36 Fan speed adjustment for cascade vent
Adjusting minimum power fan speed (P2)
To select fan speed:
Press ON/OFF button into ON.
Press and hold simultaneously buttons , and
for 3 seconds, until display reads P2.
Fig. 29
Press to enter P2 adjustment. The current setting will
appear on the display (factory default).
Press or to choose the fan speed suitable with your
installation, see table 29 and 30.
Press and hold (± 5 sec.) “Program” button until the
display flashes, then the selected value is memorized.
Proceed directly to chapter 7.5 to confirm CO
2
values are
within range.
Adjusting maximum power fan speed (P1)
To select fan speed:
Press ON/OFF button into ON.
Press and hold simultaneously buttons , and
for 3 seconds, until display reads P2.
Fig. 30
Press the minus button to display P1.
Press “Program” button to enter P1 adjustment. The
current setting will appear on the display.
Press or to choose the fan speed suitable with your
installation, see table 29 and 30.
Press and hold (± 5 sec.) “Program” button until the
display flashes, then the selected value is memorized.
Proceed directly to chapter 7.5 to confirm CO
2
values are
within range.
Altitude NG P2 LP P2 NG P1 LP P1
0 - 2000 no change no change no change 50
2000 - 4500 no change no change no change 50
4500 - 8000 no change no change no change 50
Altitude Total
equivalent
length
NG P2 LP P2 NG P1 LP P1
0 - 2000 4 - 100ft 19 19 no
change
no
change
2000 - 4500 4 - 100ft 20 20 52 53
4500 - 8000 4 - 100ft 20 20 53 53
Altitude Total
equivalent
length
NG P2 LP P2 NG P1 LP P1
0 - 2000 4 - 100ft 19 19 no
change
no
change
2000 - 4500 4 - 100ft 20 20 47 47
4500 - 8000 4 - 100ft 20 20 48 48
+
P
P
+
P
P
P
+
P
