14
Installation instructions
3.6 Installation configurations

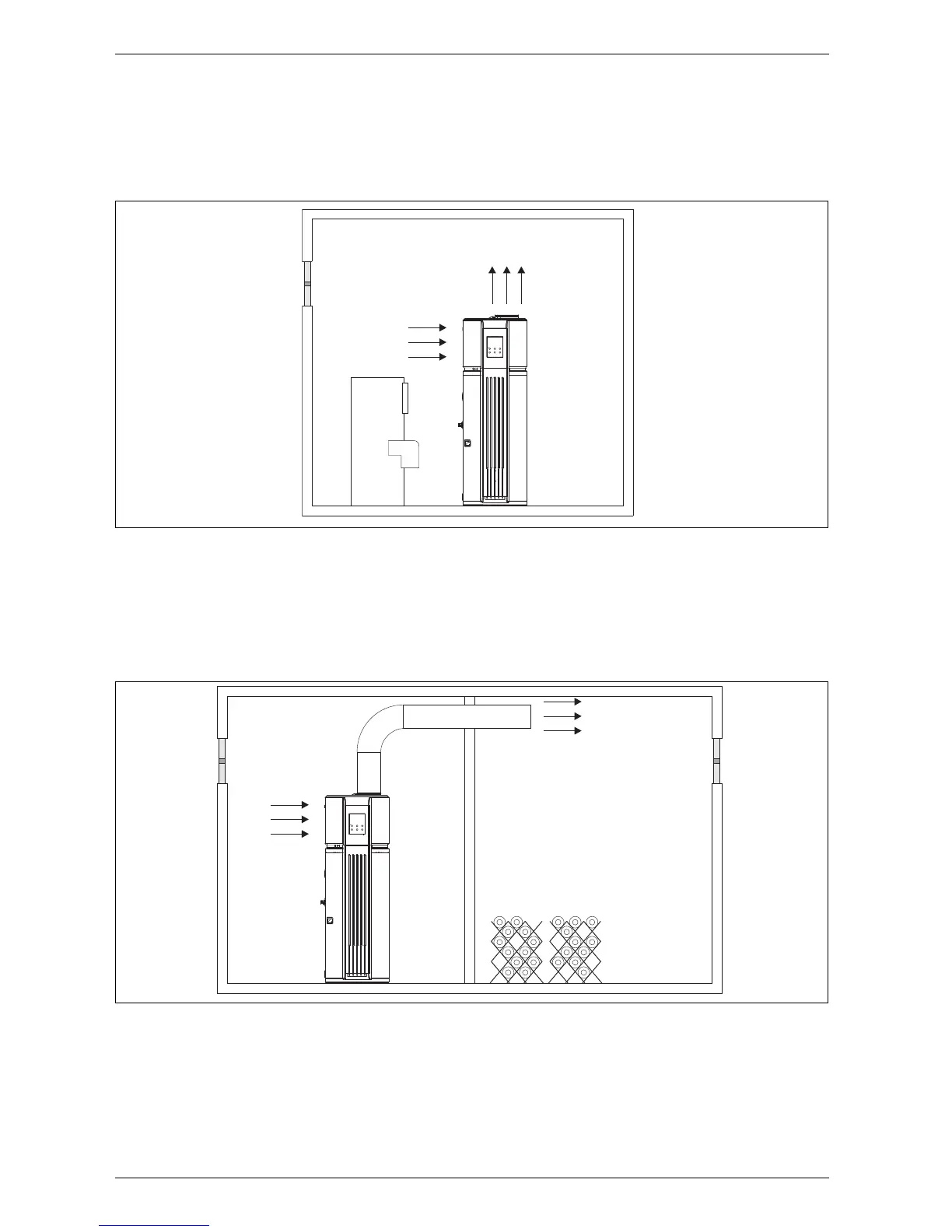

3.6.1 Using heat from existing space (Fig. 11)
The water heater can remove heat from an area such as a garage or boiler room making the temperature in the space
more tolerable in the summer months.
Fig. 11
3.6.2 Cooling in the recirculating air mode (Fig. 12)
The room air is extracted from the storage room and is subsequently cooled and dehumidified in the electric heat
pump. The air is then piped to a wine cellar where the cool, dehumidified air can be utilized. Recreation rooms, boiler
rooms or utility rooms are ideal installation sites. The air duct leading through warm areas must be insulated to prevent
the formation of condensation.
Alternatively, the cool air can be diverted outdoors if the cooling effect is not needed (Fig. 13).
Fig. 12
