cutting all materials. If excessive blade
slippage occurs, tighten the blade stud
a fraction of a turn more (less than 1/8
turn). OVERTIGHTENING THE BLADE
STUD NULLIFIES THE EFFECTIVENESS
OF THE CLUTCH.
Dust/Chip Management
ATTACHING CSDCHUTE
DUST PORT ADAPTER
(Sold separately)

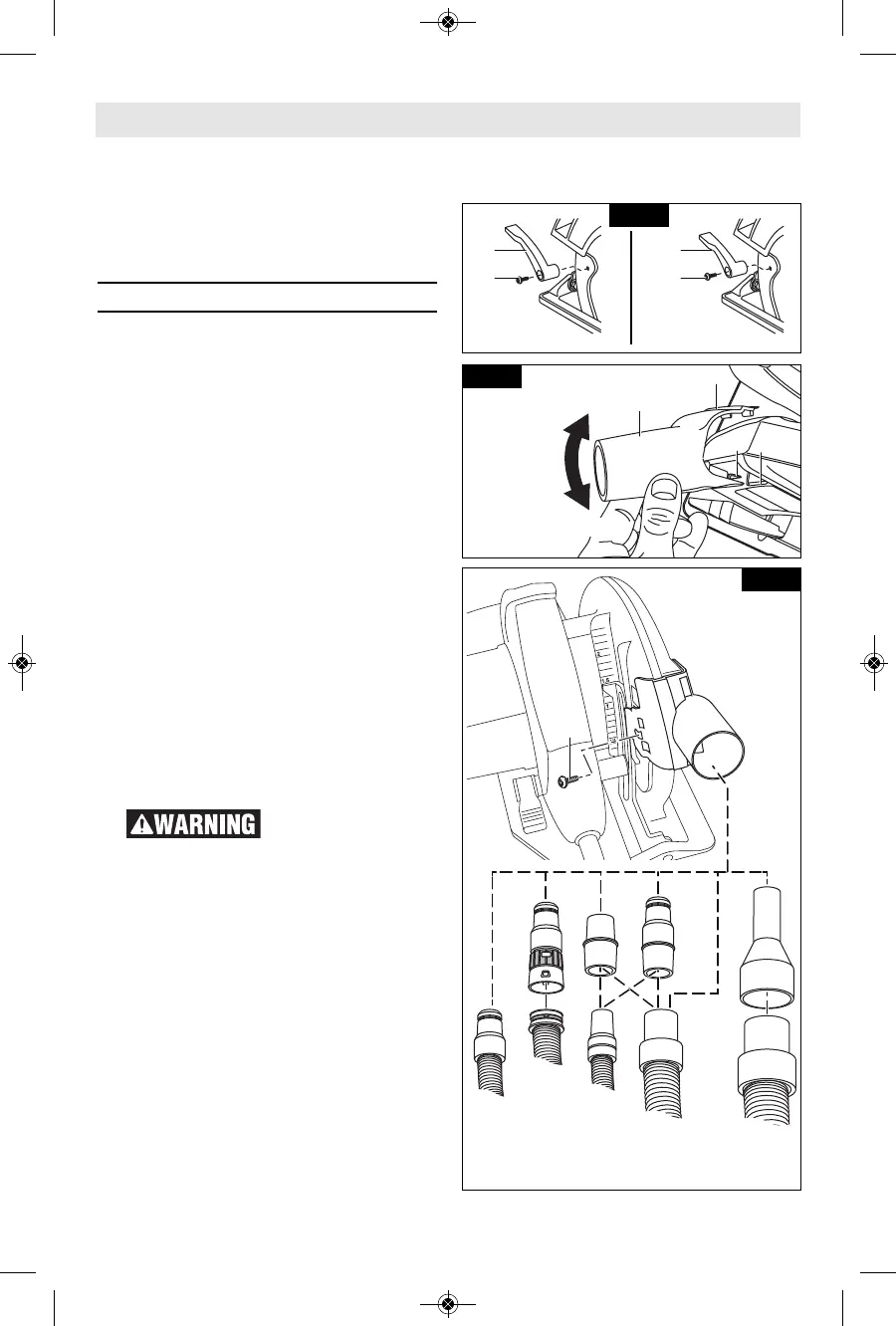

1. Remove screw 1 that secures the
lower guard lift lever with a T20 or
⁄" allen wrench, and remove lower
guard lift lever 2 (Fig. 3).
2. Install the new lower guard lift lever
3 that is provided with your dust port
adapter 5, and securely tighten screw
1. The new lever 3 provided was
designed to allow proper clearance
of the lower guard lift lever when the
dust port adapter is attached (Fig. 3).
3. Slide clip 4 on end of dust port
adapter 5 behind wall of the dust
port opening in the upper guard 6
and swing clockwise viewed from
above until the adapter snaps
securely into place and secure with
screw 8 provided (Fig. 4 and Fig. 5).
To remove, remove screw 8, lift tab 7
at opposite end of adapter and swing
counter-clockwise and remove.
DUST EXTRACTION
To reduce the risk of
injury, always
position dust port adapter and vacuum
hose so that it does not interfere with
the lower guard, or the cutting
operation at all settings.
The dust port will accept the typical
rubber-like nozzles from 35 mm vacuum
cleaner hoses, such as the VX120 that is
included with the Bosch VF-Series
hoses.
To connect the saw to a 1-1/4” or 1-1/2”
hose, the Bosch VAC024 adapter (sold
separately) can be used.
Connect the other end of the hose to a
suitable dust extractor.
The vacuum cleaner must be suitable
for the material being worked.
When vacuuming dry dust that is
especially detrimental to health or
carcinogenic, use a special vacuum
cleaner / dust extractor.
