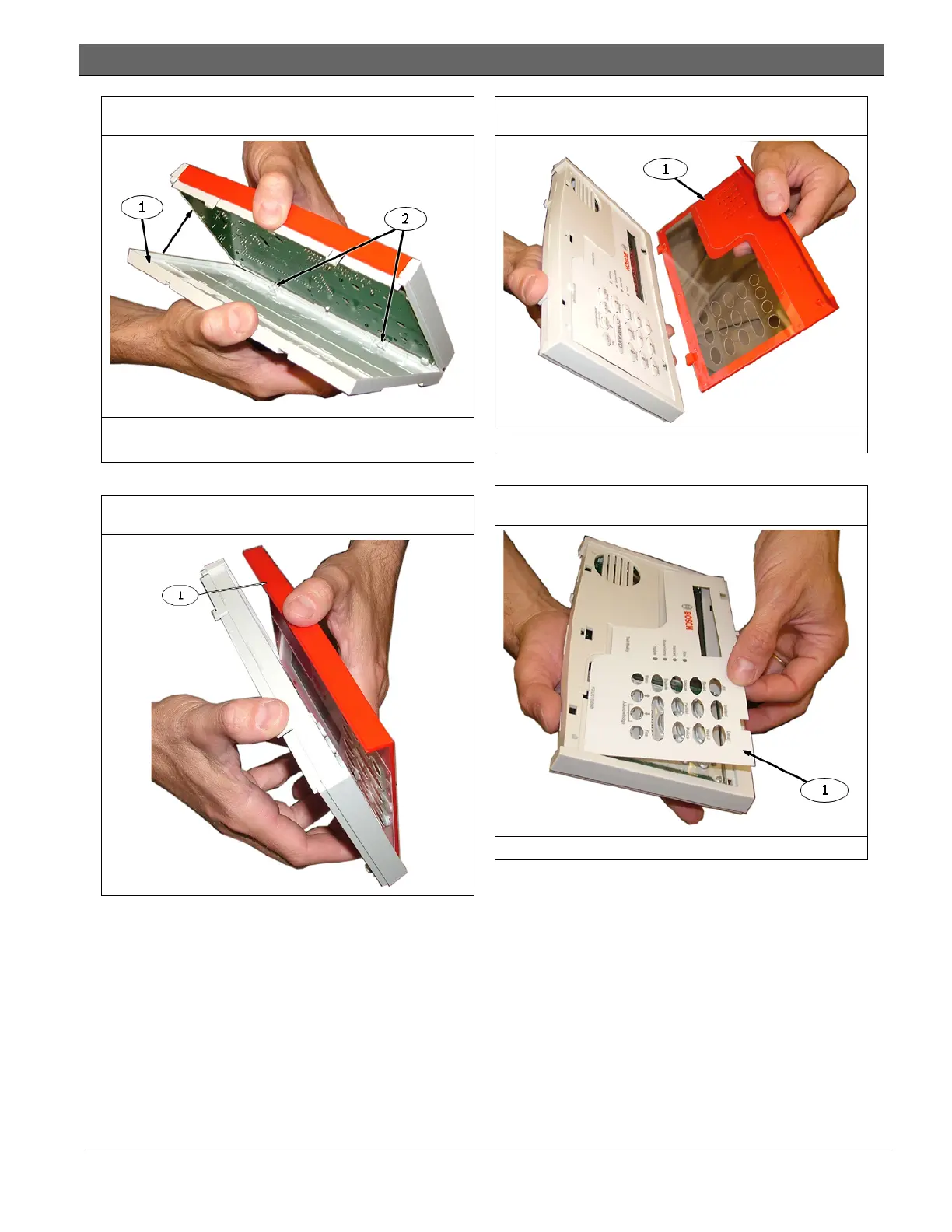

Figure 4: Removing the Enclosure Base
1 - Enclosure base
2- Top hinges
5. Lift and remove the red cover.
Figure 5: Lifting the Red Cover
Figure 6: Removing the Red Cover
1 - Red cover
6. Remove the faceplate.
Figure 7: Removing the Faceplate
1 - Faceplate
7. Set the address switches. Refer to Figure 8,
Figure 9, and Table 1.
