EN | 59
D9412G/D7412G | Operation & Installation Guide |
Bosch Security Systems | 10/03 | 43488E
11.0 SDI Devices

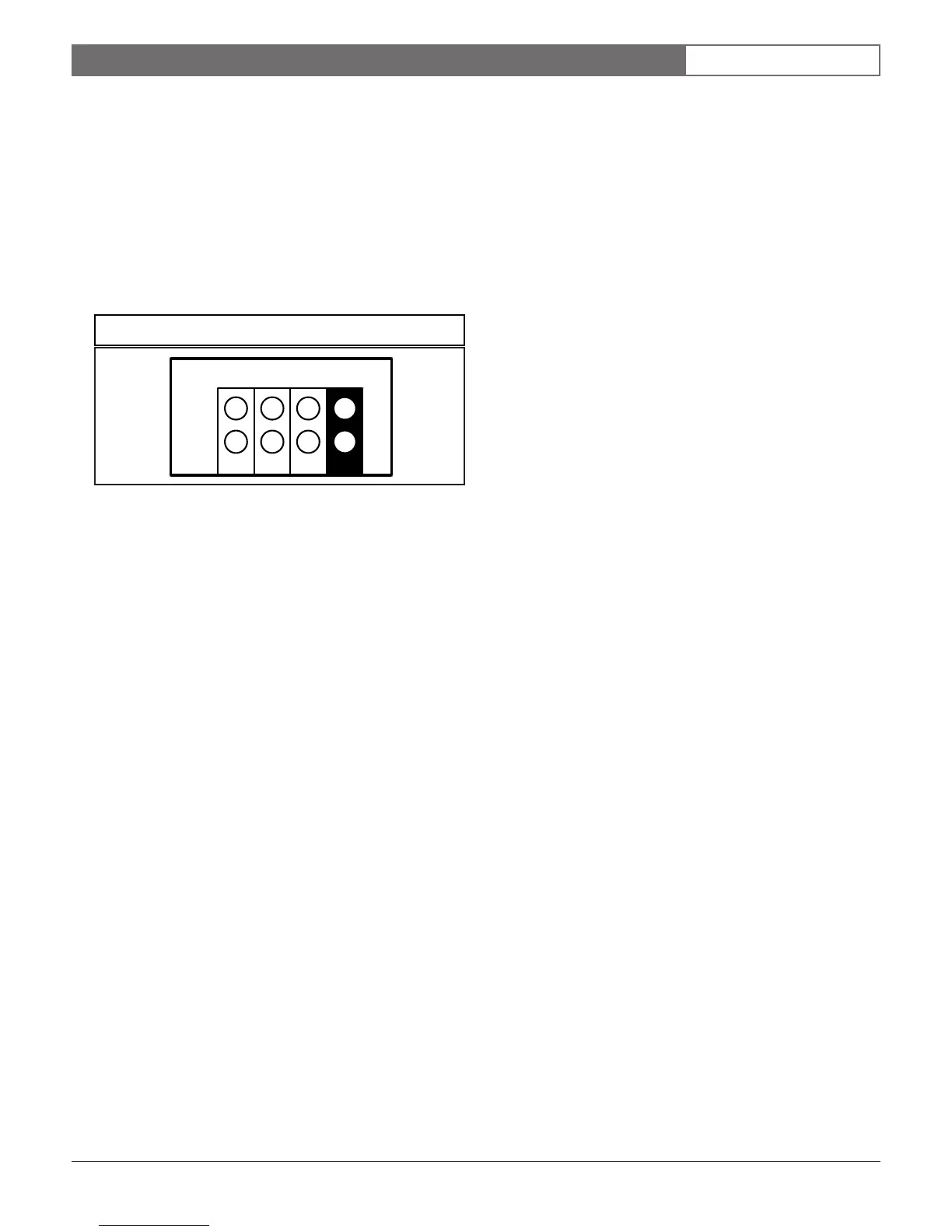

Figure 29: D9133TTL-E Jumper Settings
1234
88
11.6.2 D9133TTL-E Network Interface Module
The Bosch Security Systems D9133TTL-E Network
Interface Module is a 4-wire powered SDI device that
provides connection for bi-directional communication
over Ethernet networks to D9412G/D7412G Control
Panels. For programming information on enhanced
communications, see the D9412G/D7412G Program Entry
Guide.
The D9133TTL-E can be installed up to 305 m (1000 ft.)
from the panel using 18 AWG (1.2 mm) wire.
11.6.3 Address Settings
Place a jumper over Pin 8 for the D9133TTL-E
(SDI Address 88) to be used for RAM IV and/or
enhanced communications in a LAN/WAN
environment.
11.6.4 Supervision
Supervision of the D9133DC, D9133TTL-E, and
D9133TTL-TR at SDI Address 88 is available through
programming that ensures operation between the
module and the control panel.
If supervised and the module does not respond to panel
supervision polls, SERVC SDI 88 displays at the
command center. The report to the receiver includes the
address of the troubled module to indicate which
module needs service.
To Next Page
