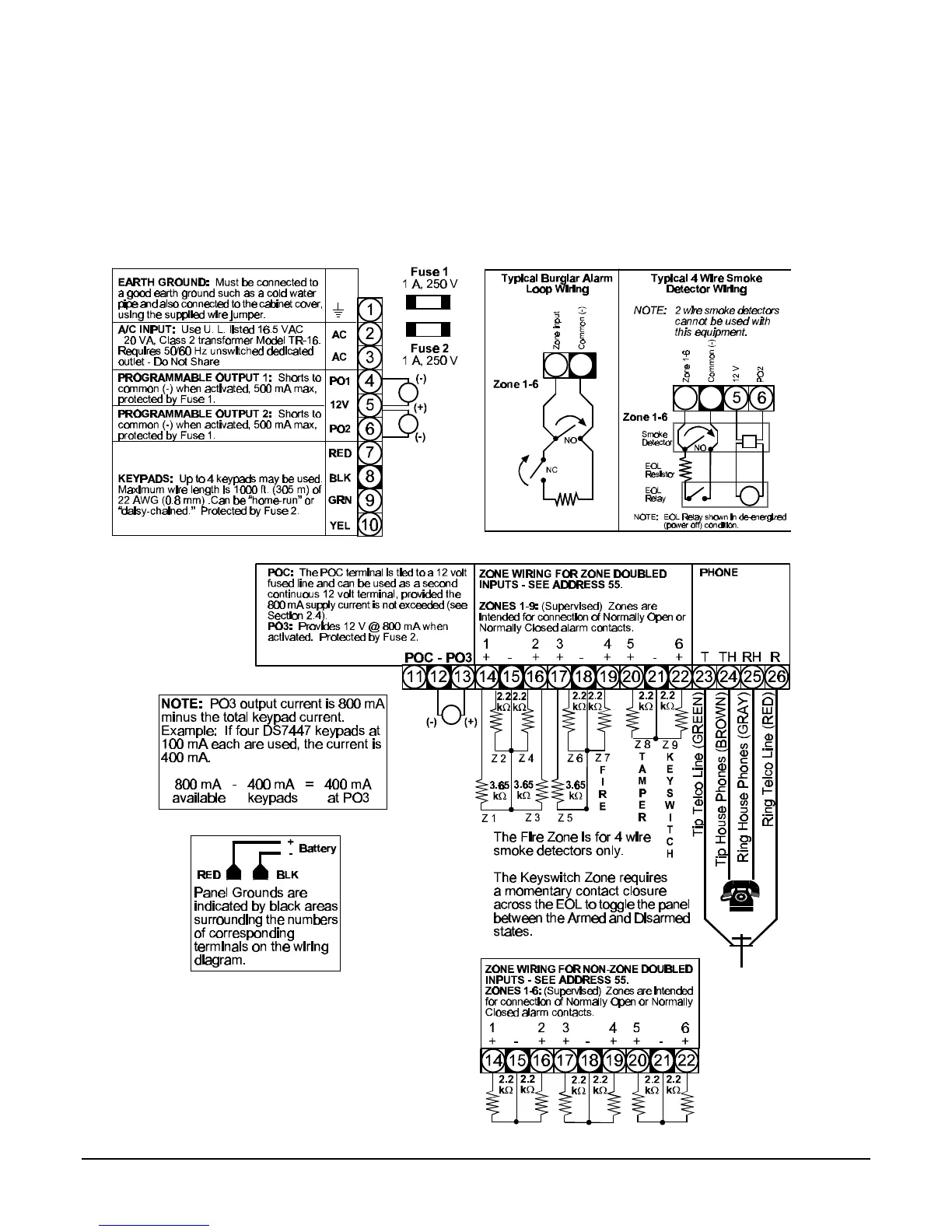

4.0 Control Terminal Wiring
WARNING: Before servicing this equipment, remove all power including the transformer and battery. Also remove the
phone line connection. A complete functional test is required after any programming.
CAUTION: Incorrect connections may result in damage to the unit.
NOTE: Shared cable is not allowed for keypad, telephone, or siren wiring.
