5.2.1 Direct-Attached, Single Connection
In the configuration shown in Figure 5.1, the iSCSI drive is attached directly to the VIP X1600
encoder unit. The advantage of this configuration is recording traffic is not loaded onto the
network. Furthermore, a general network failure will not affect the recording.

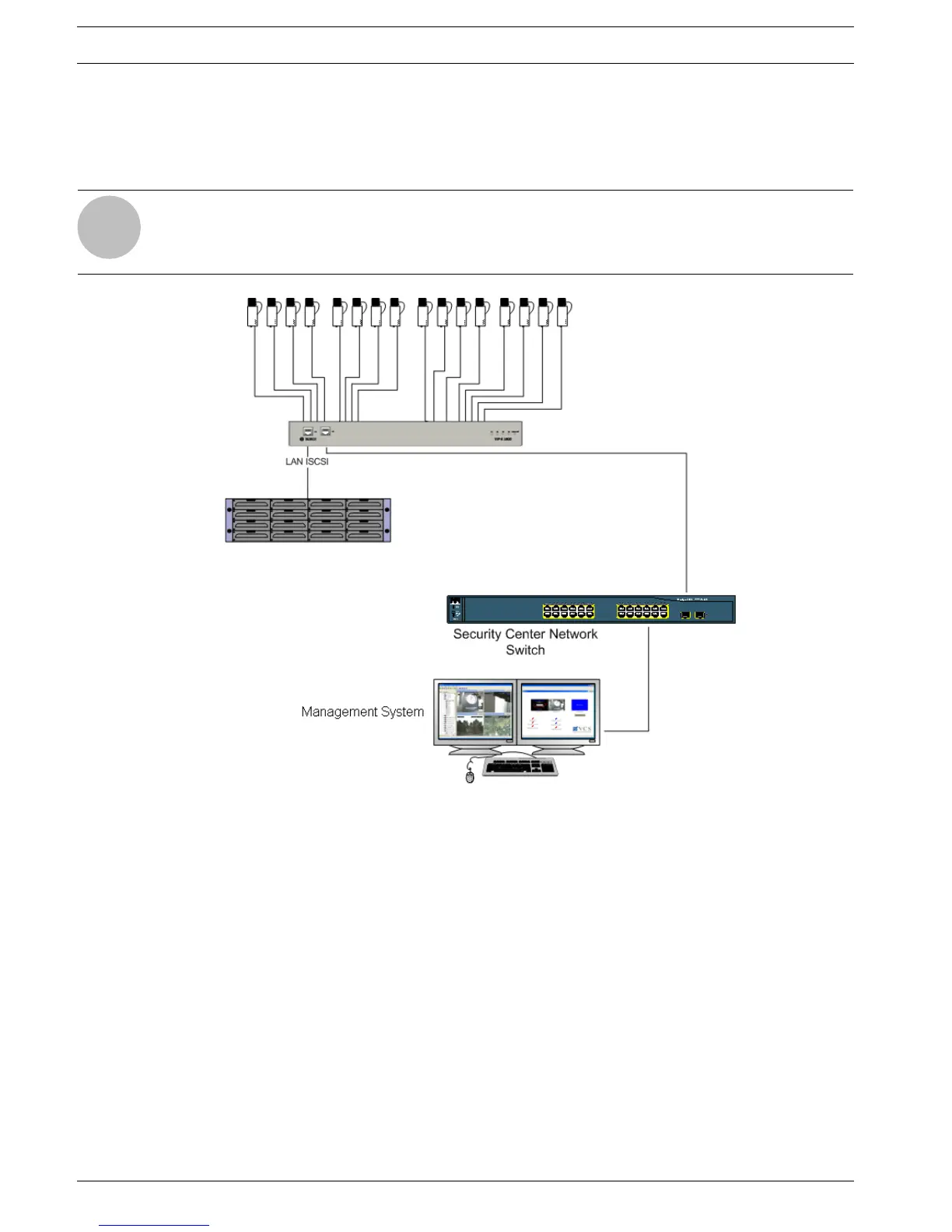

Fig. 5.1 Sample Topology: Multiple Servers Each with Single Connection
i
NOTICE!
There is no traffic in the network. In case of net failure recording will not be interrupted.
