5.2.2 Connection through an Ethernet Switches
In the configuration shown in Figure 5.2 all codecs and cameras are connected via an Ethernet
Switch. This is a standard configuration for using IP cameras and codecs sharing the same
iSCSI drive.
A maximum of 31 units can be connected. In this case, a unit is defined by having one (1) IP
address, so e.g. a unit can be either a VIP X1, a Dinion IP camera or one VIP X1600 module.

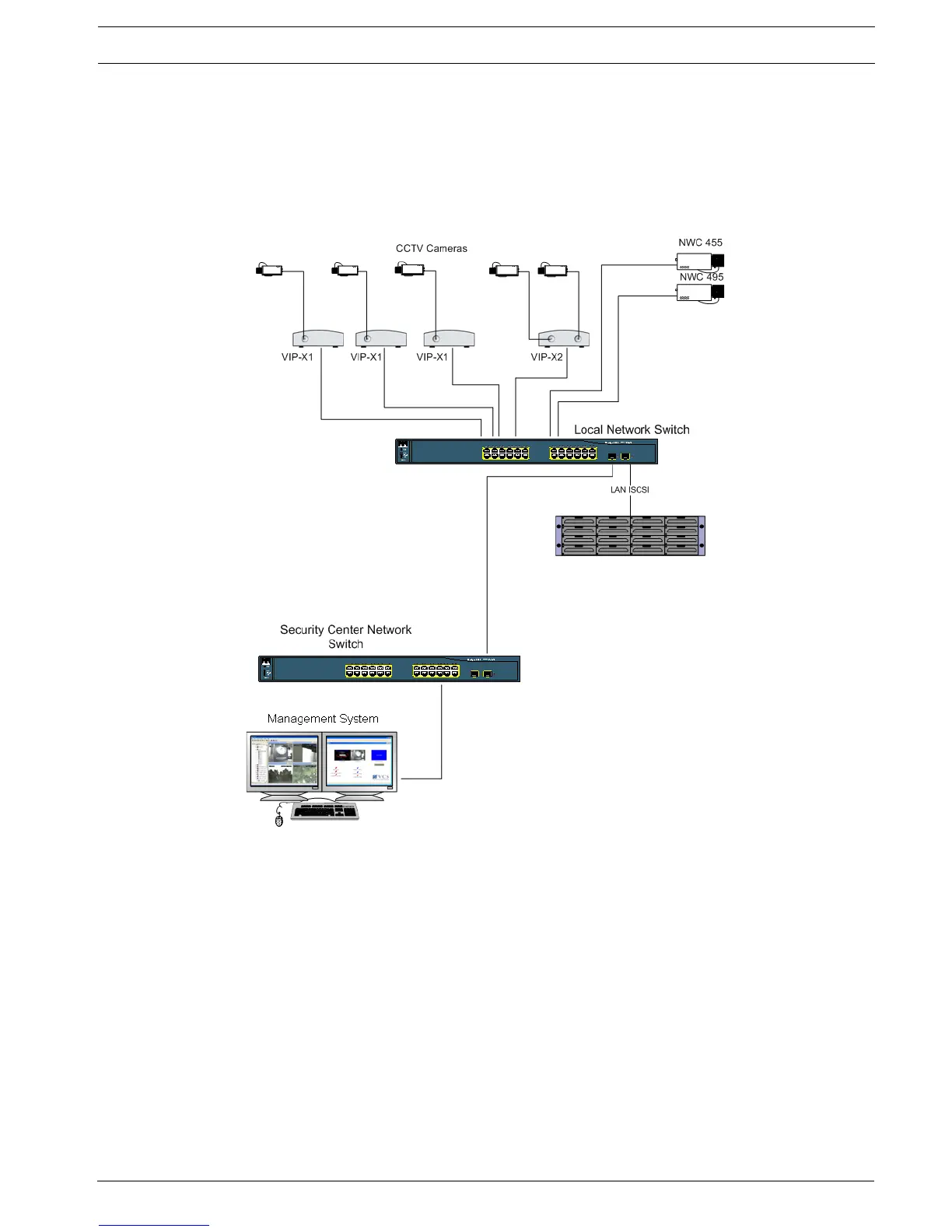

Fig. 5.2 Connection through an Ethernet Switch
