Electric Coolant Pump ECP 160 Technical Data | en 7
Bosch Engineering GmbH Installation Manual 11.04.2018 | V 1.0 |

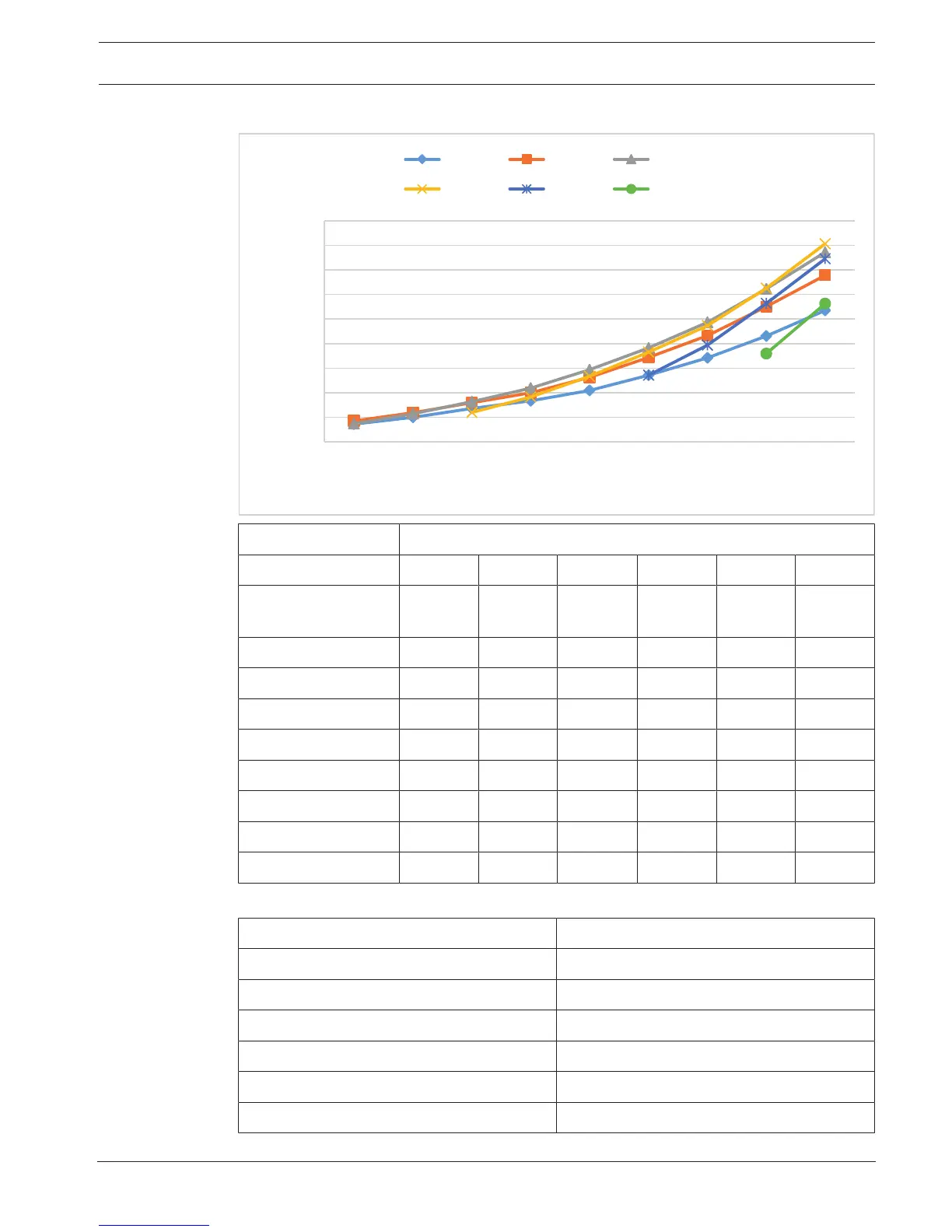

Power Consumption
0
100
200
300
400
500
600
700
800
900
6 0 0 0 7 0 0 0 8 0 0 0 9 0 0 0 1 0 0 0 0 1 1 0 0 0 1 2 0 0 0 1 3 0 0 0 1 4 0 0 0
POWER CONSUMPTION [W]
PUMP SPEED [1/MIN]
0 l/min 50 l/min 100 l/min
150 l/min 200 l/min 250 l/min
Flow rate l/min
Pump speed 1/min 0 50 100 150 200 250
6,000 72 85 74 W at
13.5V DC
7,000 100 119 115
8,000 136 159 164 120
9,000 167 200 219 183
10,000 209 263 294 267
11,000 271 344 382 365 271
12,000 342 432 487 473 394
13,000 431 550 623 625 563 359
14,000 535 678 772 806 745 562
Connectors and Wires
Pin A 12 V DC
Pin B GND
12 V electrical connector Souriau 8 STA 0-16-75PN 251 (red)
PWM-Signal Souriau 8 STA 2-02-05PN (red)
Pin 1 Free
Pin 2 GND
Pin 3 Signal PWM
