Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, NY 14450
USA
www.boschsecurity.com
en Installation Guide
Commercial Series
TriTech detectors
ISC-CDL1-W15G,
ISC-CDL1-W15H, ISC-CDL1-W15K
© 2015 Bosch Security Systems, Inc.
F.01U.304.624 | 03 | 2015.01
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
Voltage
(operating)
9 to 15 VDC, 9-15 V
9-15 Vcc
de 10 à 15 mA @ 12
Vcc en veille/en alarme,
source limitée en
puissance, ondulation
résiduelle 1 V.
Current
(maximum)
<35 mA
Alarm relay /
Tamper
<100 mA, 25 V , 2.5W
Operating
temperature
-30°C to +55°C
(-22°F to +130°F)
UL 0°C to +49°C
(+32°F to +120°F)
AFNOR/CNPP
-10°C to +55°C
Relative
humidity
95% non-condensing
UL and C-UL 93%
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is
protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be
registered trademarks and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security
Systems, Inc. website at http://www.boschsecurity.com/datecodes/.

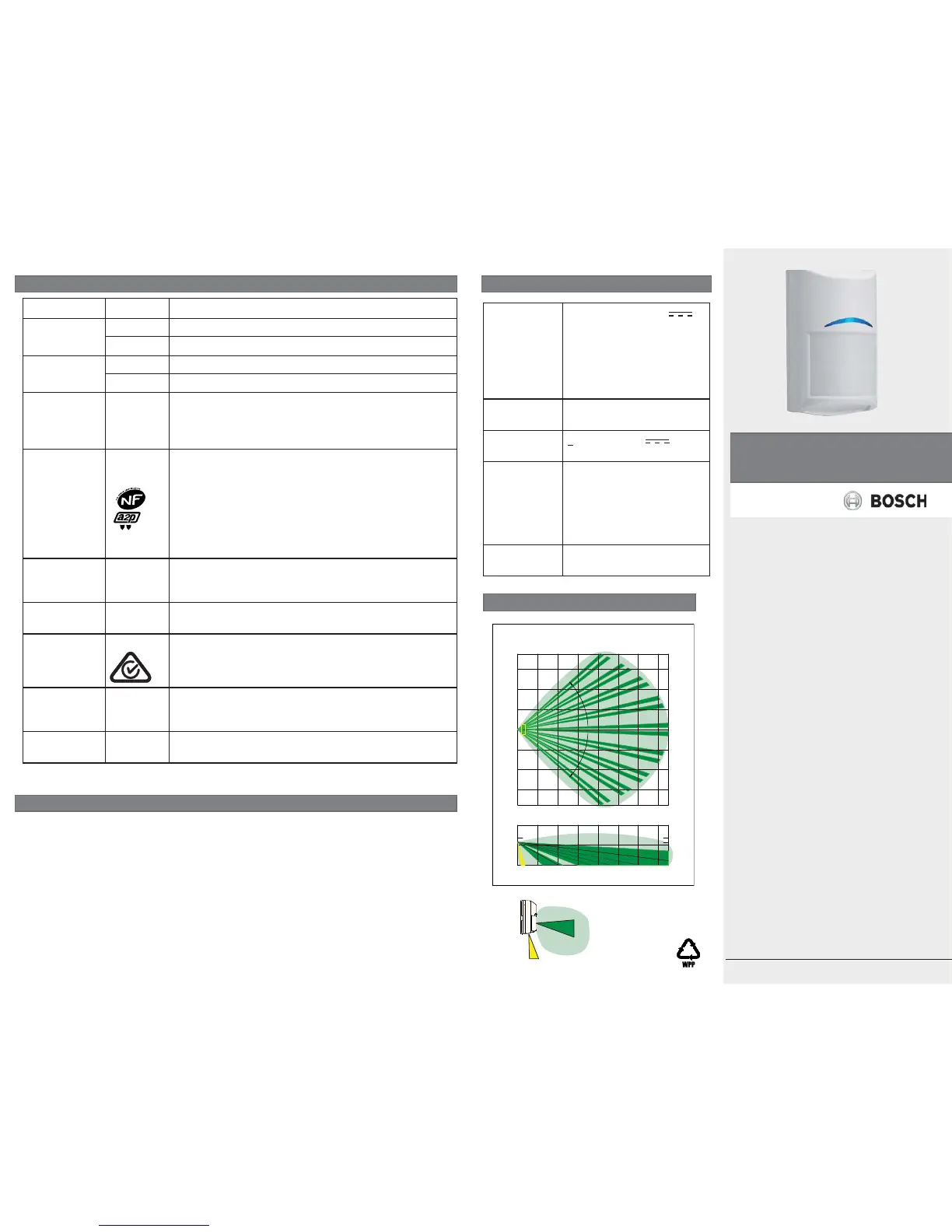

0 m 2 m 4 m 6 m 8 m 10 m
15 m
0 ft 7 ft 13 ft 20 ft 26 ft 33 ft
50 ft
0 m
7.5 m
6 m
4 m
2 m
0 m
2 m
4 m
6 m
7.5 m
0 ft
25 ft
20 ft
13 ft
7 ft
0 ft
7 ft
13 ft
20 ft
25 ft
≥2.3 m ≥7.5 ft
≤2.75 m ≤9 ft
12 m
39 ft
14 m
46 ft
90°
Region Agency Certifi cation
US FCC FCC Part 15 Class B
UL -W15G: Intrusion Detection Unit Type: S
Canada CUL -W15G: Intrusion Detection Unit Type: S
IC 1249A-CDL1
Europe CENELEC EN 50131-2-4
EN 50130-5
Environmental Class II,
Grade 2 / IP41 / IK04 (EN60529, EN 62262)
France AFNOR/
CNPP
NF&A2P (ISC-CDL1-W15H seulement)
ISC-CDL1-WA15H Cert # xxxxxxxxxxxx
RTC 50131-2-4
NF-324-H58 2 boucliers – 110P2
AFNOR Certifi cation: www.afnor.org
CNPP Cert.: www.cnpp.com
Autosurveillance à l’ouverture Immunité champ
magnétique
Germany VdS VdS Gxxxxxx
Class B
2110EN Enviromental Class 2
Belgium ANPI/
INCERT
INCERT B-509-00xx/a: (ISC-CDL1-W15G)
Australia ACMA
RCM
Italy IMQ Certifi cato IMQ sistemi di sicurezza 3° livello di
prestazione secondo CEI79-2:1998 + Ab:2000
(modello W15G)
Sweden SBSC For svensk installationsanvisning se
www.boschsecurity.se
11 | Certifi cations
12 | Specifi cations
13 | Coverage pattern
