Read and understand these
instructions and tool
manual for use of these accessories.
Do not reach in area of the bit while the
router is ON or plugged in as indicated by
LEDS being on).
To avoid entangling hoses,
do not use this dust
extraction hood at the same time as any
other dust extraction hood.

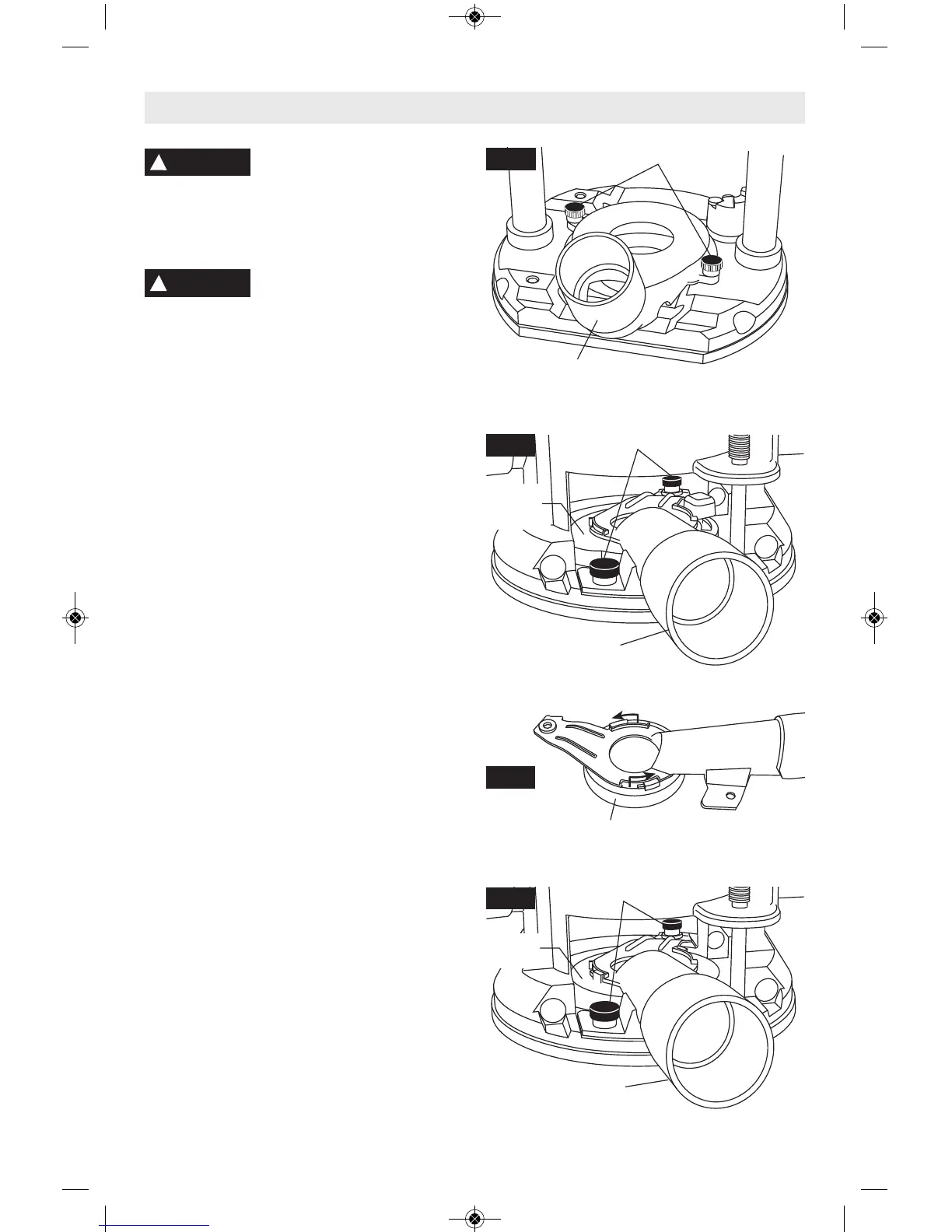

PLUNGE BASE DUST EXTRACTION
This dust extraction hood is designed for use
in the plunge base (MRP001) when routing is
done in the middle of the workpiece, such as
when creating slots or routing patterns for
inlays. If you have a shop vacuum system,
you can attach the dust extraction hood for
improved visibility, accuracy and utility,
particularly in freehand routing.
To attach, position as shown and secure
adapter to base with the thumbscrews
provided (Fig. 23).
The dust extraction hood can also be
installed with the hose outlet facing the front
of the tool.
FIXED BASE DUST EXTRACTION
This dust extraction hood is designed for use
with the MRF001 fixed base. It is installed
differently depending on whether or not the
optional templet guide adapter is installed.
If templet guide adapter is installed,
position port-and-cover piece as shown
and secure to base with the thumbscrews
provided (Fig. 24).
If no templet guide adapter is installed, first
attach the side shroud by rotating it onto
the bottom of the port-and-cover piece
(Fig. 25). Then position the hood assembly
as shown and secure to base with the
thumbscrews provided (Fig. 26).
The fixed base dust extraction hood can
also be installed with the hose outlet facing
the front of the tool.
-24-
FIG. 23
FIG. 24
FIG. 25
FIG. 26
Dust Extraction Hood
(Optional Accessory)
4mm Thumb Screws
Dust Extraction Hood
(Optional Accessory)
Side Shroud
Side
Shroud
4mm Thumb Screws
Dust Extraction Hood
(Optional Accessory)
4mm Thumb Screws
Router Dust Extraction
!
WARNING
Templet
Guide
Adapter
!
CAUTION
BM 2610004573 03-12_BM 2610004573 03-12 6/26/12 7:16 AM Page 24
