EDGEFORMING DUST
EXTRACTION
This dust extraction hood (optional
accessory) is used for dust collection when
edge-forming
You can attach the edge-forming hood in
several places according to your needs or
preferences. This hood is attached using two
of the screw holes on the router base that are
used to attach the router’s sub-base. Choose
the desired location for the hood. Loosen and
take out the two screws from the router base
and attach the dust extraction hood — over
the router’s sub-base — using the screws
provided with the hood. Securely tighten the
screws.

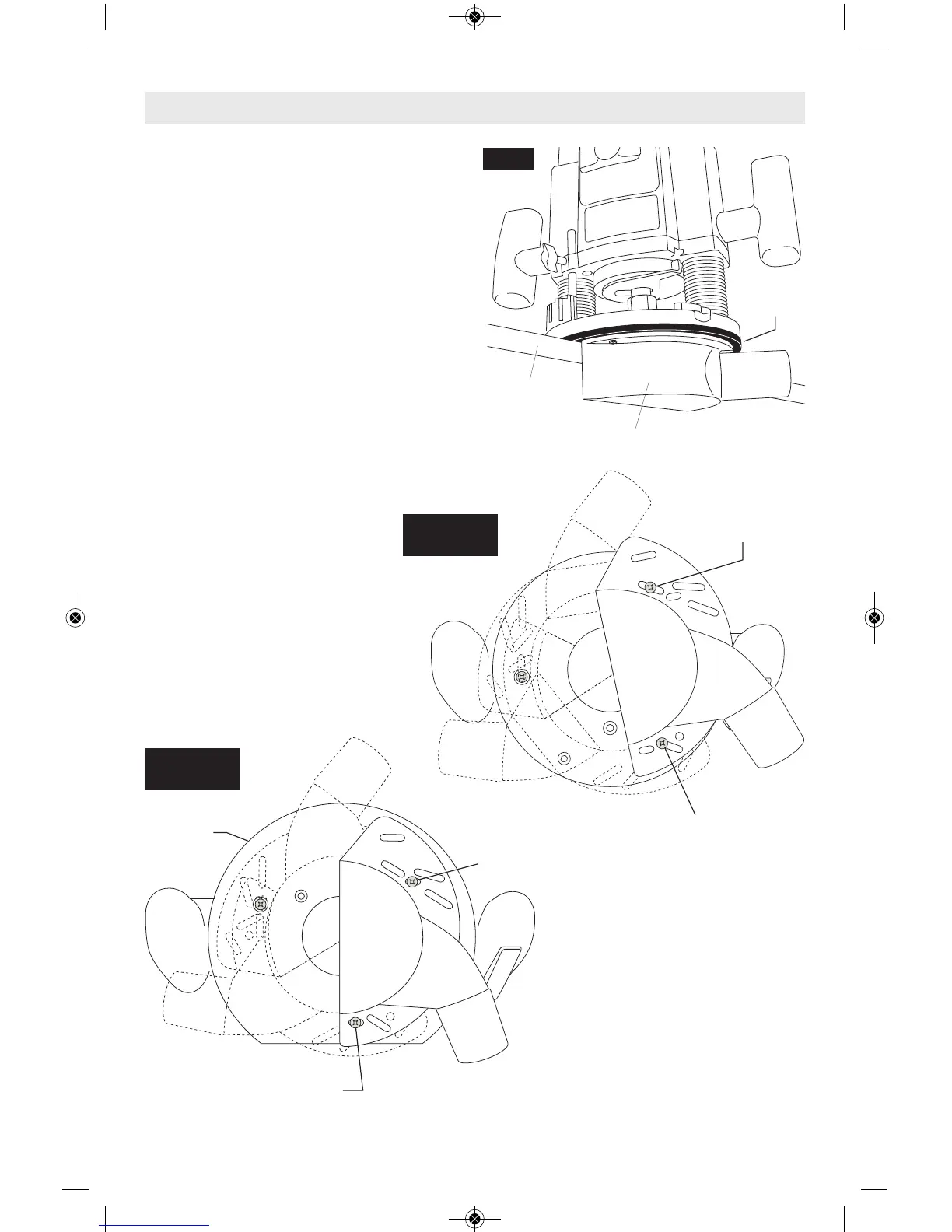

-25-
Dust Extraction Hood
Router
Sub-Base
Workpiece
Edge
FIG. 27
Router Dust Extraction
Router
Sub-Base
4mm x 16mm
Screw
4mm x 16mm
Screw
4mm x 16mm
Screw
Dust
Extraction
Hood
4mm x 16mm Screw
Dust
Extraction
Hood
FIG. 28
PLUNGE BASE
FIG. 29
OTHER BASES
