-17-
Accessories & Attachments
OSC004 Depth Stop Kit
(
Optional Accessory)
INTRODUCTION
The OSC004 Depth Stop Kit attachment is
compatible with the Bosch MX30E and
Bosch MXH180 Multi-X Oscillating Tools and
allows the depth of a cut to be limited to a

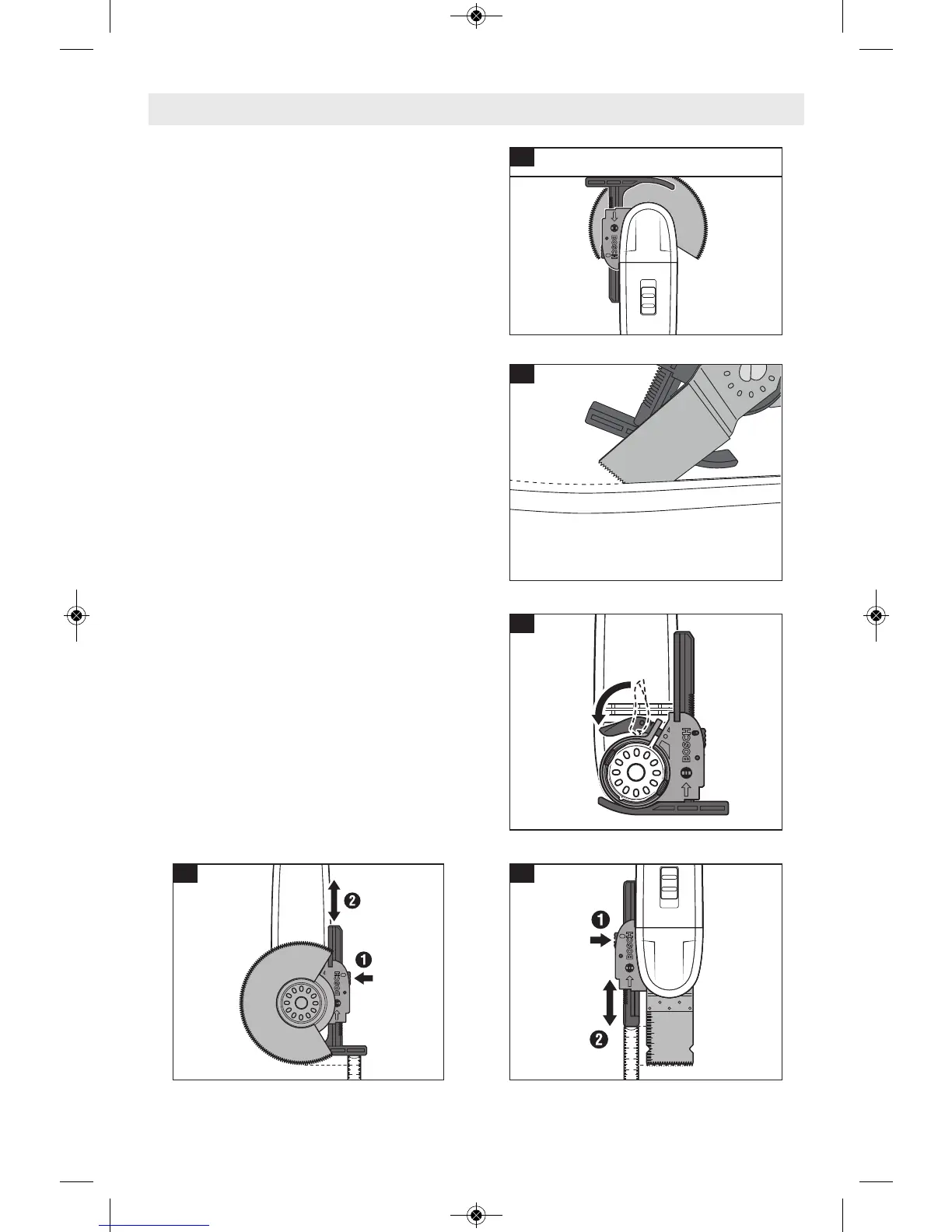

user-selected depth. (FIG.A) It can also be
used to provide guidance for other types of
cuts. (FIG. B)
INSTALLATION
Step 1: If an accessory has already been
installed on the tool, remove it.
Step 2: Place the bracket onto the nose of
the Multi-X tool such that the clamp
is facing the rear of the tool. (FIG. C)
Step 3: Press the clamp shut. (FIG. C)
Step 4: Push the appropriate guide into the
opening in the front of the bracket.
Step 5: Install the accessory onto the tool.
Step 6: Set the desired cutting depth using
the red button on the side of the
bracket. (FIG. C & D)
PLUNGE CUTS
• For plunge cutting using round blades,
such as “segment” blades, install the wide
stop as shown in figure D.
• For plunge-cut blades using straight
blades, install the narrow stop as shown in
figure E.
OTHER TYPES OF GUIDED CUTS
• For other types of guided cuts, install the
wide stop as shown in figure B.
A
B
C
D
E
