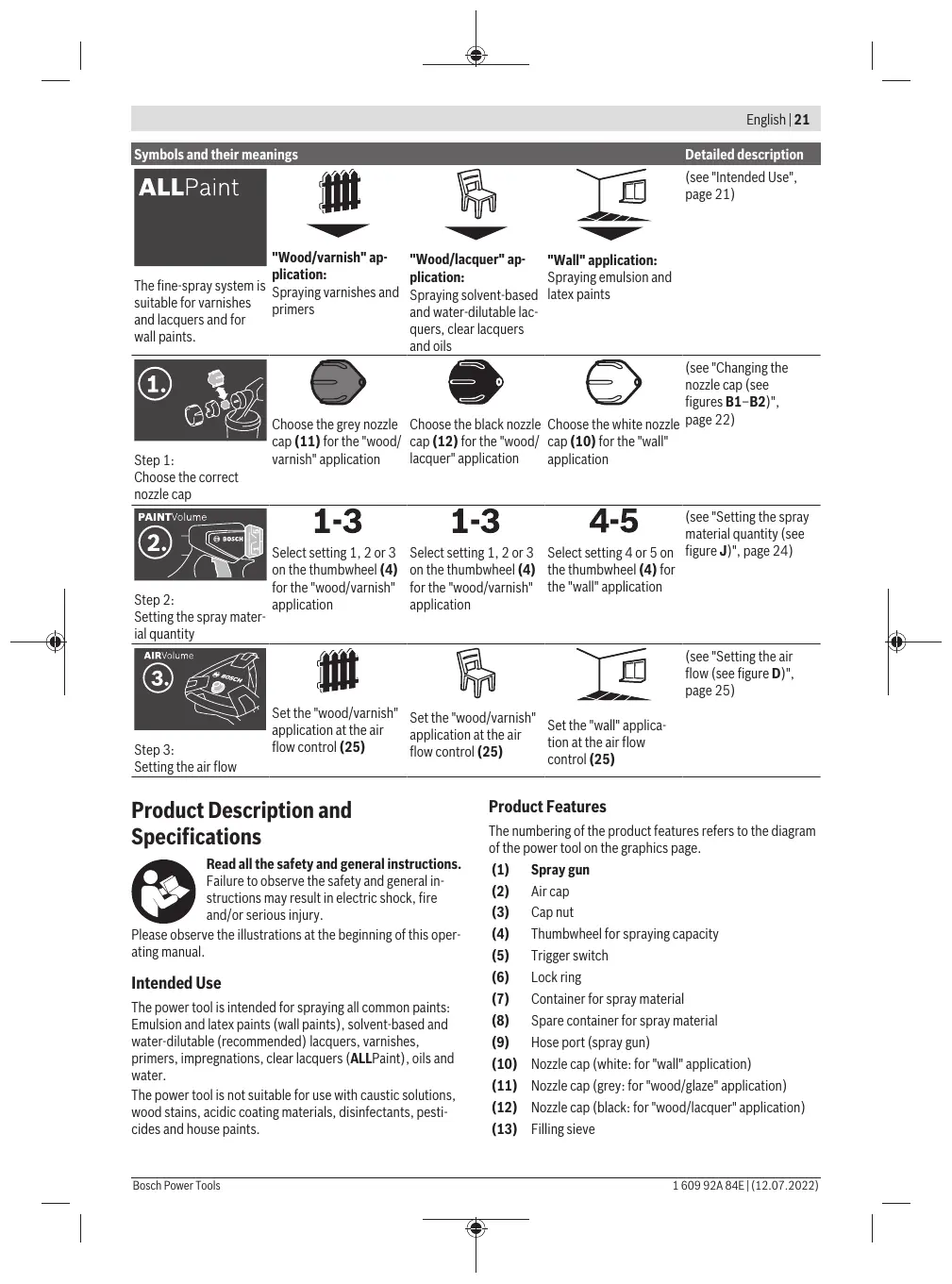

Bosch PFS 7000 User Manual

English | 21
Symbols and their meaningsDetailed description
The fine-spray system is
suitable for varnishes
and lacquers and for
wall paints.
"Wood/varnish" ap-
plication:
Spraying varnishes and
primers
"Wood/lacquer" ap-
plication:
Spraying solvent-based
and water-dilutable lac-
quers, clear lacquers
and oils
"Wall" application:
Spraying emulsion and
latex paints
(see "Intended Use",
page21)
Step 1:
Choose the correct
nozzle cap
Choose the grey nozzle
cap(11) for the "wood/
varnish" application
Choose the black nozzle
cap(12) for the "wood/
lacquer" application
Choose the white nozzle
cap(10) for the "wall"
application
(see "Changing the
nozzle cap (see
figuresB1–B2)",
page22)
Step 2:
Setting the spray mater-
ial quantity
Select setting 1, 2 or 3
on the thumbwheel(4)
for the "wood/varnish"
application
Select setting 1, 2 or 3
on the thumbwheel(4)
for the "wood/varnish"
application
Select setting 4 or 5 on
the thumbwheel(4) for
the "wall" application
(see "Setting the spray
material quantity (see
figureJ)", page24)
Step 3:
Setting the air flow
Set the "wood/varnish"
application at the air
flow control(25)
Set the "wood/varnish"
application at the air
flow control(25)
Set the "wall" applica-
tion at the air flow
control(25)
(see "Setting the air
flow (see figureD)",
page25)
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended Use
The power tool is intended for spraying all common paints:
Emulsion and latex paints (wall paints), solvent-based and
water-dilutable (recommended) lacquers, varnishes,
primers, impregnations, clear lacquers (ALLPaint), oils and
water.
The power tool is not suitable for use with caustic solutions,
wood stains, acidic coating materials, disinfectants, pesti-
cides and house paints.
Product Features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1)Spray gun
(2)
Air cap
(3)
Cap nut
(4)
Thumbwheel for spraying capacity
(5)
Trigger switch
(6)
Lock ring
(7)
Container for spray material
(8)
Spare container for spray material
(9)
Hose port (spray gun)
(10)
Nozzle cap (white: for "wall" application)
(11)
Nozzle cap (grey: for "wood/glaze" application)
(12)
Nozzle cap (black: for "wood/lacquer" application)
(13)
Filling sieve
