Familiarising yourself with your appliance en
7

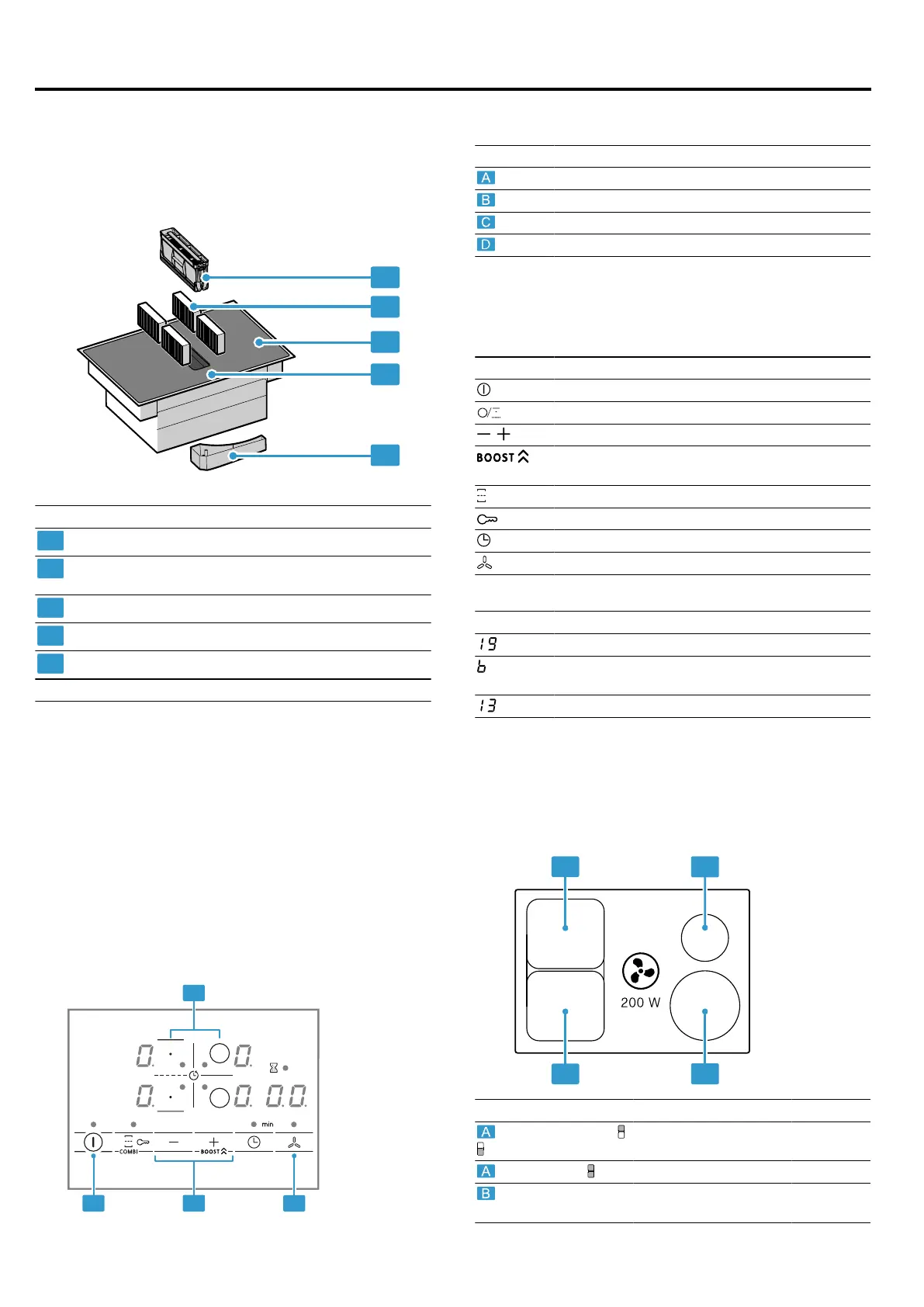

Familiarising yourself with your appliance
5 Familiarising yourself with your appliance
5.1 Your new appliance
Information about your new appliance
2
1
3
4
5
No. Designation
1
Grease filter
2
Odour filter for circulating-air mode or acoustics
filter for air extraction mode
1
3
Hob
4
Control panel
5
Overflow container
1
Depending on the appliance specifications.
5.2 Special accessories
Depending on the appliance model, various accessor-
ies are available and you can obtain these from spe-
cialist retailers, from our after-sales service or from our
official website.
¡ Air extraction set
¡ Air recirculation set
¡ Odour filter for recirculating air mode
¡ Acoustics filter for air extraction mode
5.3 Control panel
Individual details, such as colour and shape, may differ
from the figure.
A
B
D
C
Letters Designation
Main switch
Control panel
Cooking zone
Ventilation sensor
Note:Always keep the control panel clean and dry.
Tip:Do not place any cookware near the displays or
buttons. The electronics may overheat.
Selection sensors
Sensor Function
Main switch
⁠ Selecting the cooking zone
⁠/ Selecting settings
PowerBoost
Intensive ventilation setting
⁠ CombiZone
Childproof lock
⁠ Timer function
⁠ Manual ventilation control
Displays
Display Function
⁠- ⁠ Power levels
PowerBoost
Intensive ventilation setting
⁠- ⁠ Ventilation settings
5.4 Distribution of the cooking zones
The specified power has been measured with the
standard pots which are described in IEC/EN
60335-2-6. The power may vary depending on the size
of the cookware or cookware material.
B
C
A
A
Area Highest setting
21 cm diameter Power level 9
PowerBoost
2200W
3700W
21 x 38 cm Power level 9 3600W
Ø 14.5 cm Power level 9
PowerBoost
1400W
2200W
