Maintenance and Disassembly

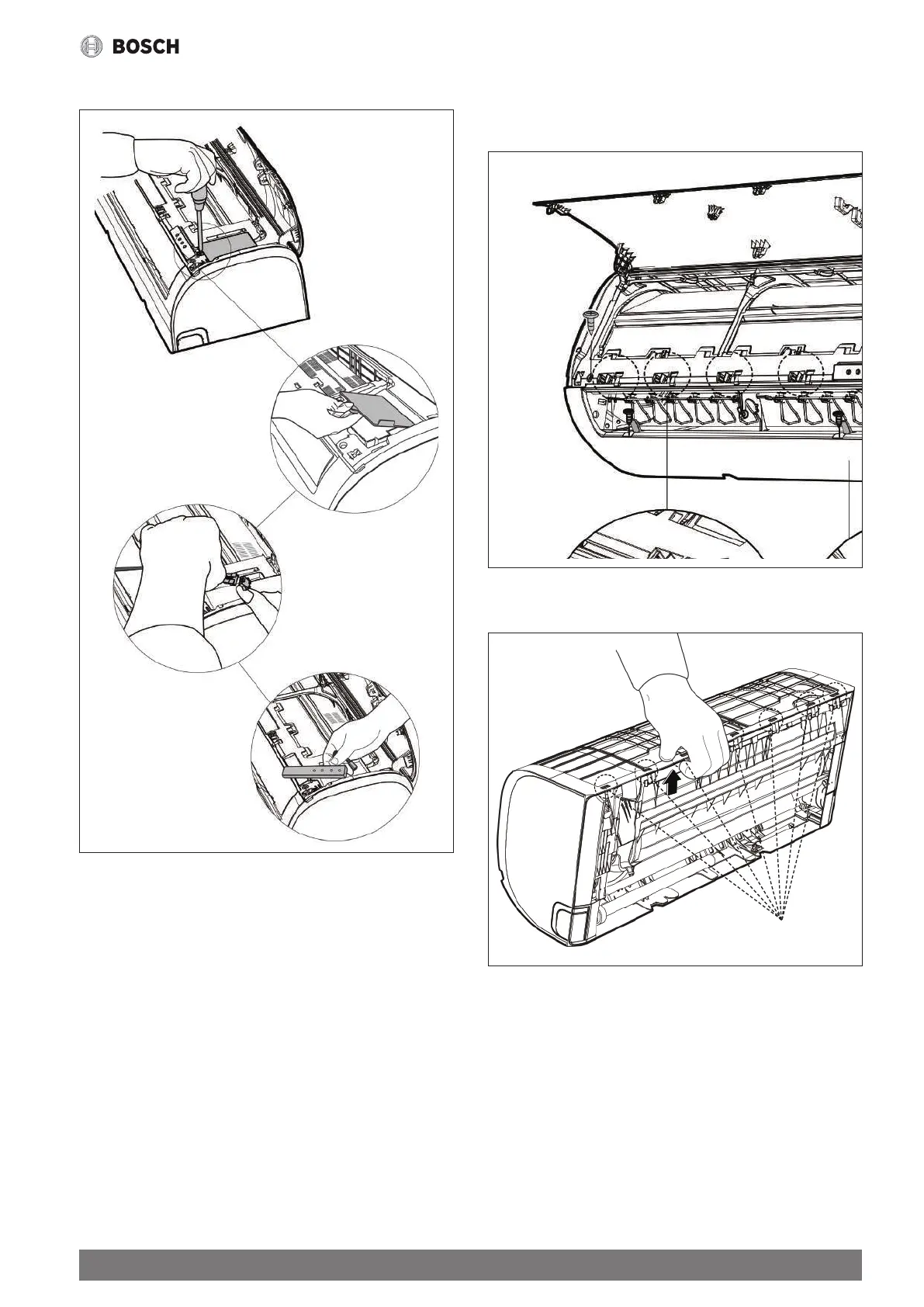

7) Remove the display board (see fig. 15).
Fig. 15.
8) Open the screw caps(2) and the remove the screws
(see fig. 16).
9) Release the 4 hooks.
Fig. 16.
10) Release the seven hooks in the back (see fig. 17).
Hooks
Fig. 17.
