22 CLIMATE 5000 RAC SINGLE SPLIT (R32) – 6720894076 (2019/08)

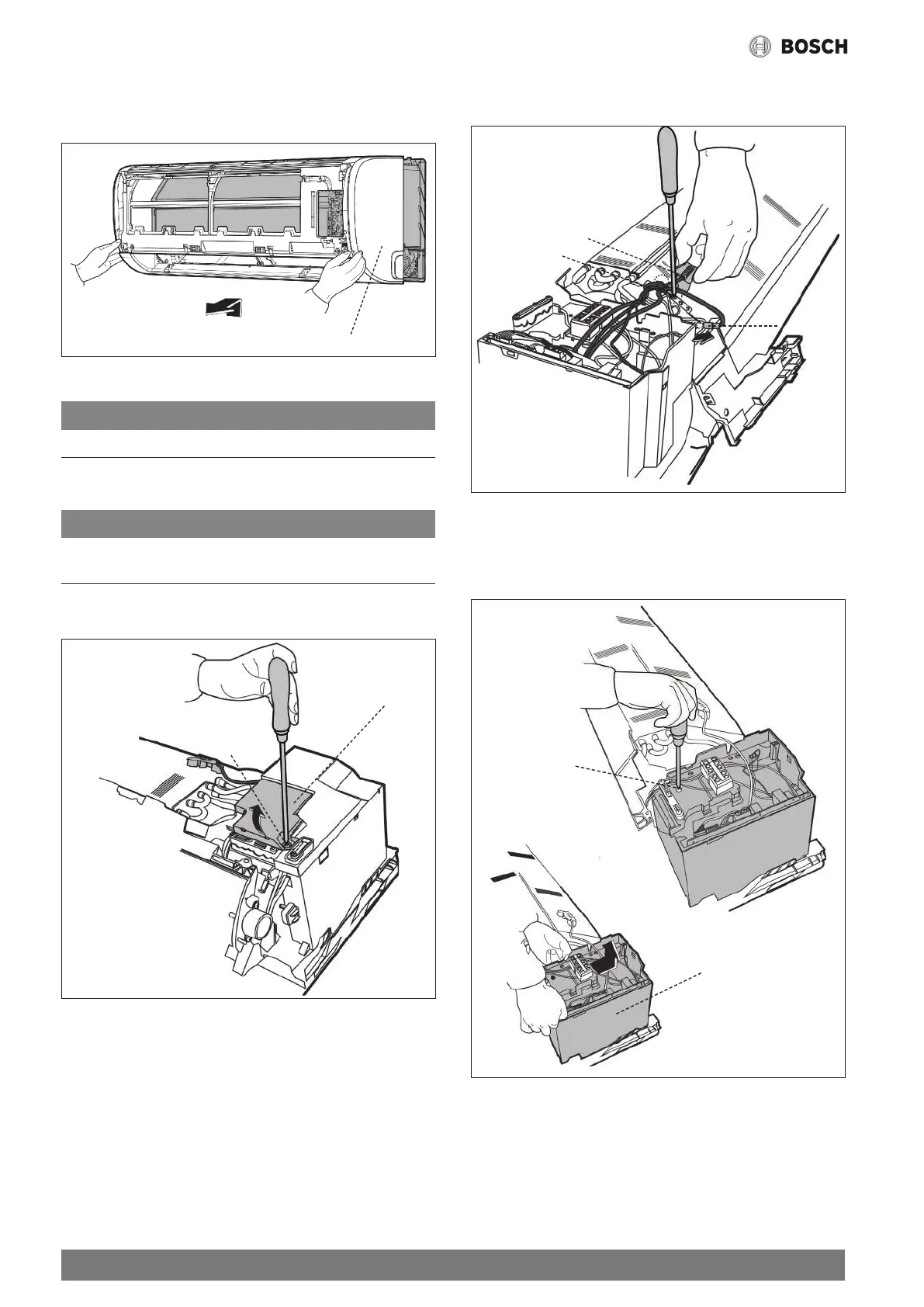

Maintenance and Disassembly
11) Pull out the panel frame while pushing the hook through a
clearance between the panel frame and the heat exchanger
(see fig. 18).
Panel Frame
Fig. 18.
NOTICE:
This section is for reference only. Actual unit appearance may vary.
2. Electrical parts
NOTICE:
Remove the front panel (refer to 1. Front panel) before disassembling
electrical parts.
1) Remove the fixing screw and then remove the cover of electronic
box and the terminal cover (see fig. 19).
Electronic Box Cover
Fixing Screw
Fig. 19.
2) Pull out the room temperature sensor (T1) and the coil temperature
sensor (T2) (see fig. 20).
3) Remove the two screws used for the ground connection (see
fig.20).
T2 Sensor
T1 Sensor
Ground Screws
Fig. 20.
4) Remove the fixing screw (see fig. 21).
5) Pull out the electrical control box along the direction indicated in
right image to remove it (see fig. 21).
Electronic Box
Fixing Screw
Fig. 21.
