30 CLIMATE 5000 RAC SINGLE SPLIT (R32) – 6720894076 (2019/08)
Maintenance and Disassembly

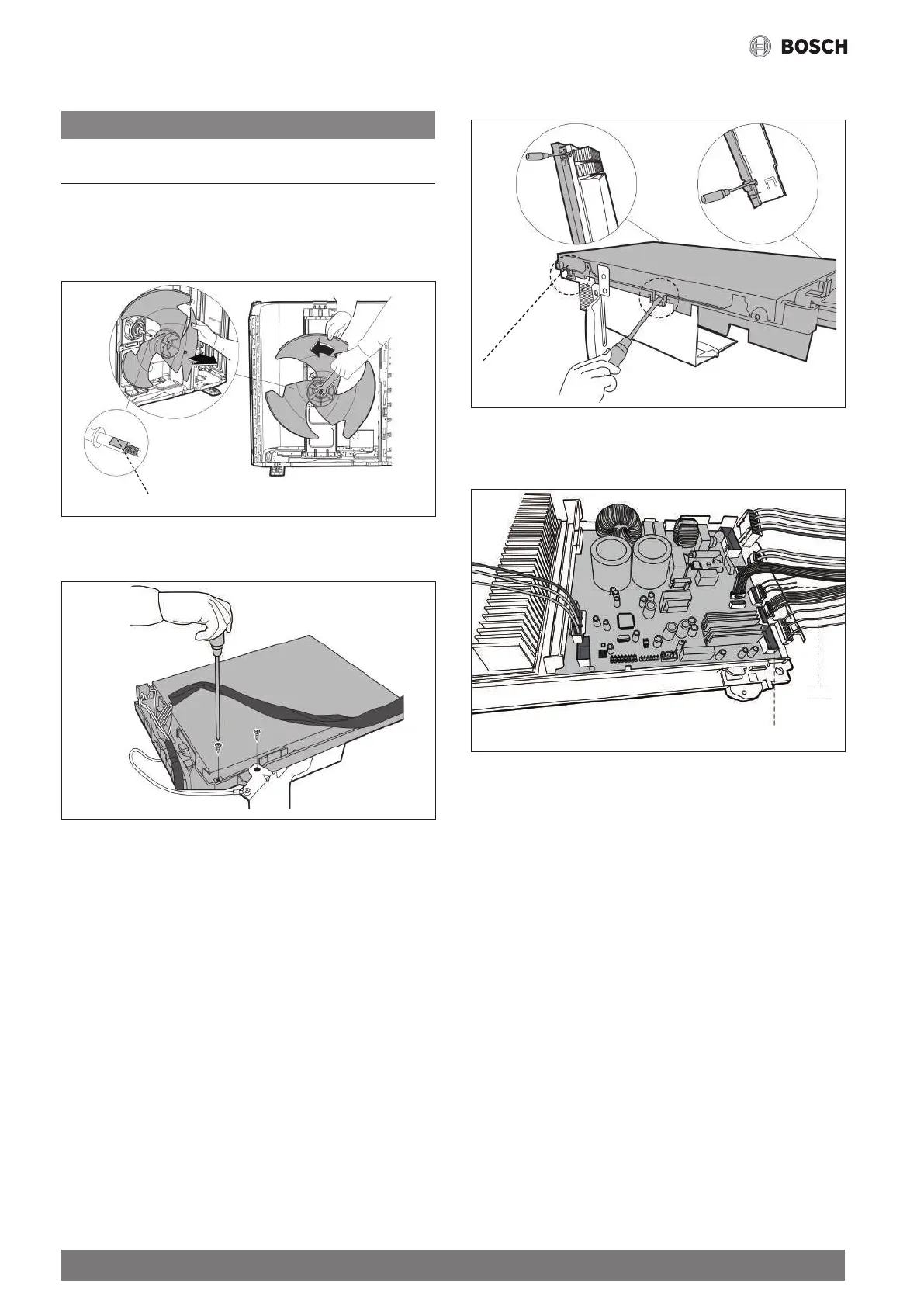

2. Fan disassembly
NOTICE:
Remove the panel plate and (refer to 1. Panel plate) before disassembling
fan.
Outdoor Unit 2,6-2 / 3,5-2 / 5,3-2 OUE
1) Remove the securing nut with a spanner (see fig.47).
2) Remove the fan.
D-cut
Fig. 47.
3) Remove the screws of the top cover. (2 screws) (see fig.48).
Fig. 48.
4) Unfix the hooks and then open the electronic control box cover
(4hooks) (see fig.49).
Hook
Fig. 49.
5) Disconnect the connector for fan motor from the electronic control
board (see fig.50).
DC Fan
AC Fan
Fig. 50.
6) Remove the fixing screws of the fan motor (4 screws) (see fig.51).
