CLIMATE 5000 RAC SINGLE SPLIT (R32) – 6720894076 (2019/08) 31
Maintenance and Disassembly

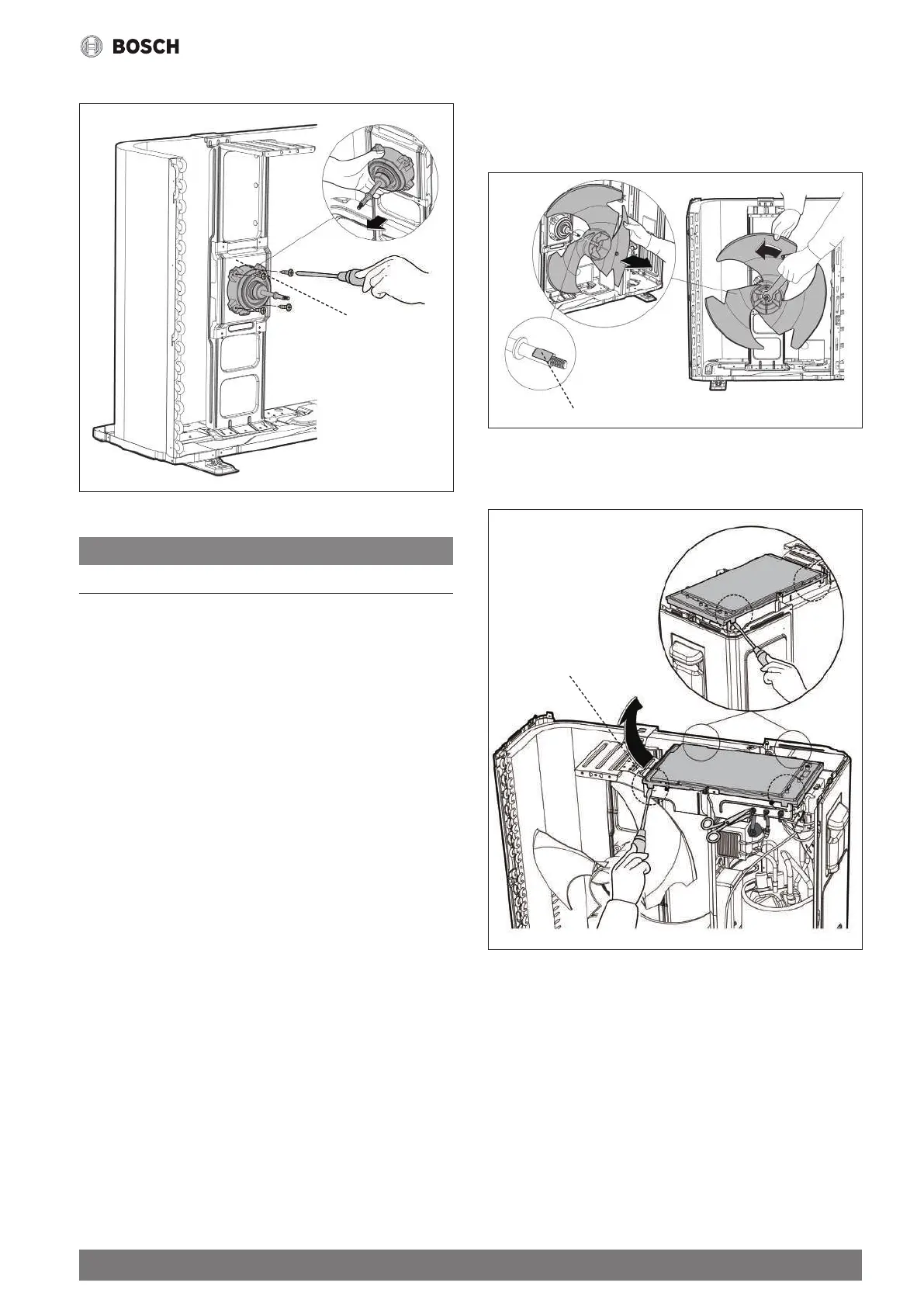

7) Remove the fan motor.
Fan Motor
Fig. 51.
NOTICE:
This section is for reference only. Actual unit appearance may vary.
Outdoor Unit 7-2 OUE
1) Remove the securing nut with a spanner
(see fig.52).
2) Remove the fan.
D-Cut
Fig. 52.
3) Unfix the hooks and then open the electronic control box cover
(4hooks) (see fig.53).
Hook
Fig. 53.
