ATTACHING THE EASY CLICK ROUTER MOUNTING PLATE
TO THE ROUTER (Figs. 5–7) (cont.)
Before using the router table, verify that the router is securely clamped in
the router table base. While working, periodically check the router base
fasteners clamping tightness.
Router motor vibration can loosen fasteners during use, causing
the router to fall from the table.
14
Router Table Setup
Router Router Hole Fasteners
Brand Model Pattern Required
Bosch 1617 series (fixed B #10-24 x 1/2
"
Pan-head Phillips machine screws (36)
base models only)
Craftsman 17508, 17542, 26620, A #10-32 x 1/2
"
Pan-head Phillips machine screws (39)
17533, 17528, 17511,
26834, 28190, 73277
Craftsman 17541 C #10-32 x 1/2
"
Pan-head Phillips machine screws (39)
DeWalt DW616, DW618 B #8-32 x 1/2
"
Pan-head Phillips machine screws (34)
(fixed base only)
Hitachi M12VC B #10-32 x 1/2
"
Pan-head Phillips machine screws (39)
Makita RF1100, RF1101 B #10-24 x 1/2
"
Pan-head Phillips machine screws (36)
Milwaukee 5615, 5616 B #10-24 x 1/2
"
Pan-head Phillips machine screws (36)
Porter Cable 690 series, B #10-24 x 1/2
"
Pan-head Phillips machine screws (36)
7529 plunge router,
and 892–895 series
(fixed base only)
Ryobi 163K D 5/16-18 x 1/2
"
Pan-head Phillips machine screws (42)
Skil 1810, 1815, 1820, 1825 A #10-32 x 1/2
"
Pan-head Phillips machine screws (39)
CHART 1

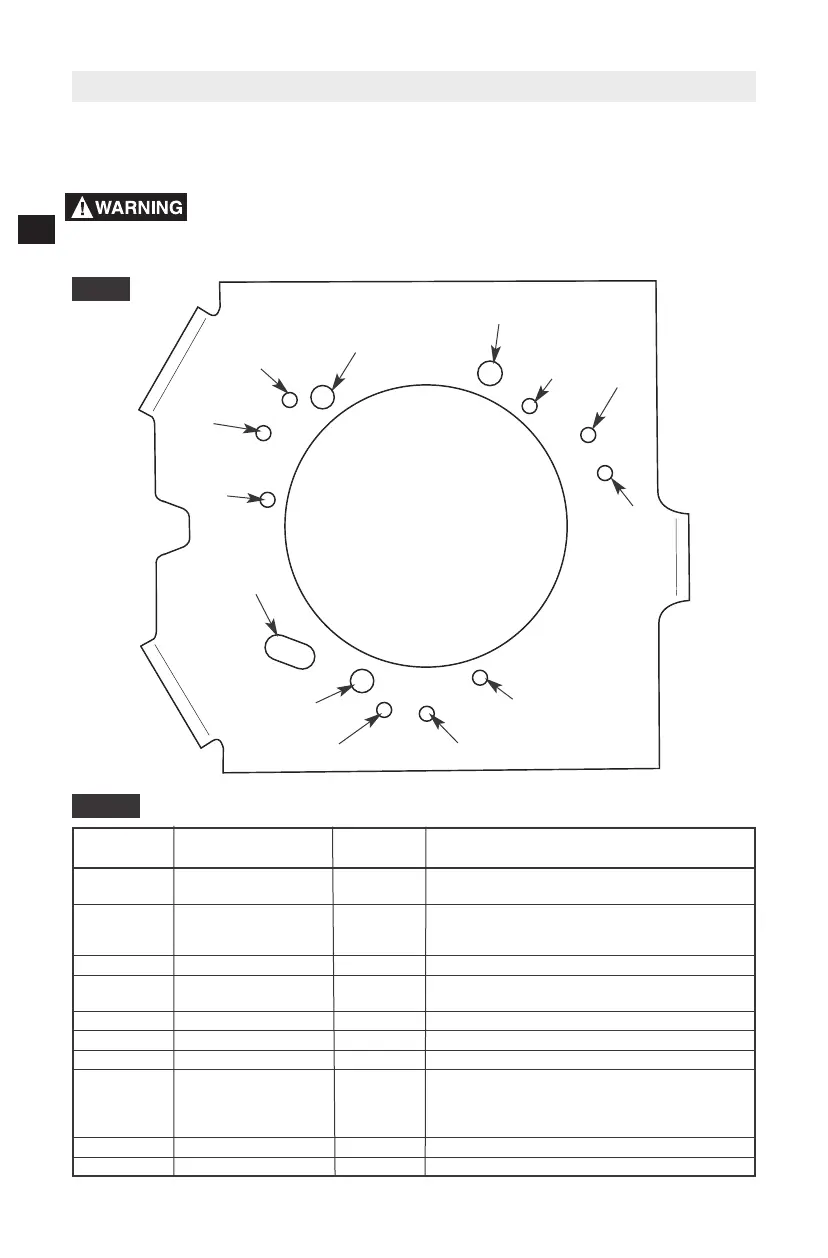

FIG. 7
OTA1 = Over-table height adjustment 1
TOP FRONT OF PLATE
OTA1
B
B
B
A
A
A
C
C
C
D
D
D
