Maximum pump torque
T =
vG
×
Δp
= 320 × 350
= 1782.5 Nm
20π
62.83
Torque limitation
Pump relative
483.9
= 27.1 %
1782.5
8.1.5.4 Settings of swivel angle sensor
At the factory, the HS5E control system is fitted with the appropriate swivel angle
sensor for the pump. If the type of swivel angle sensor changers or a replacement
pilot valve is set up, you may need to modify the selection values in the “Actual
swivel angle value acquisition” window appropriately.

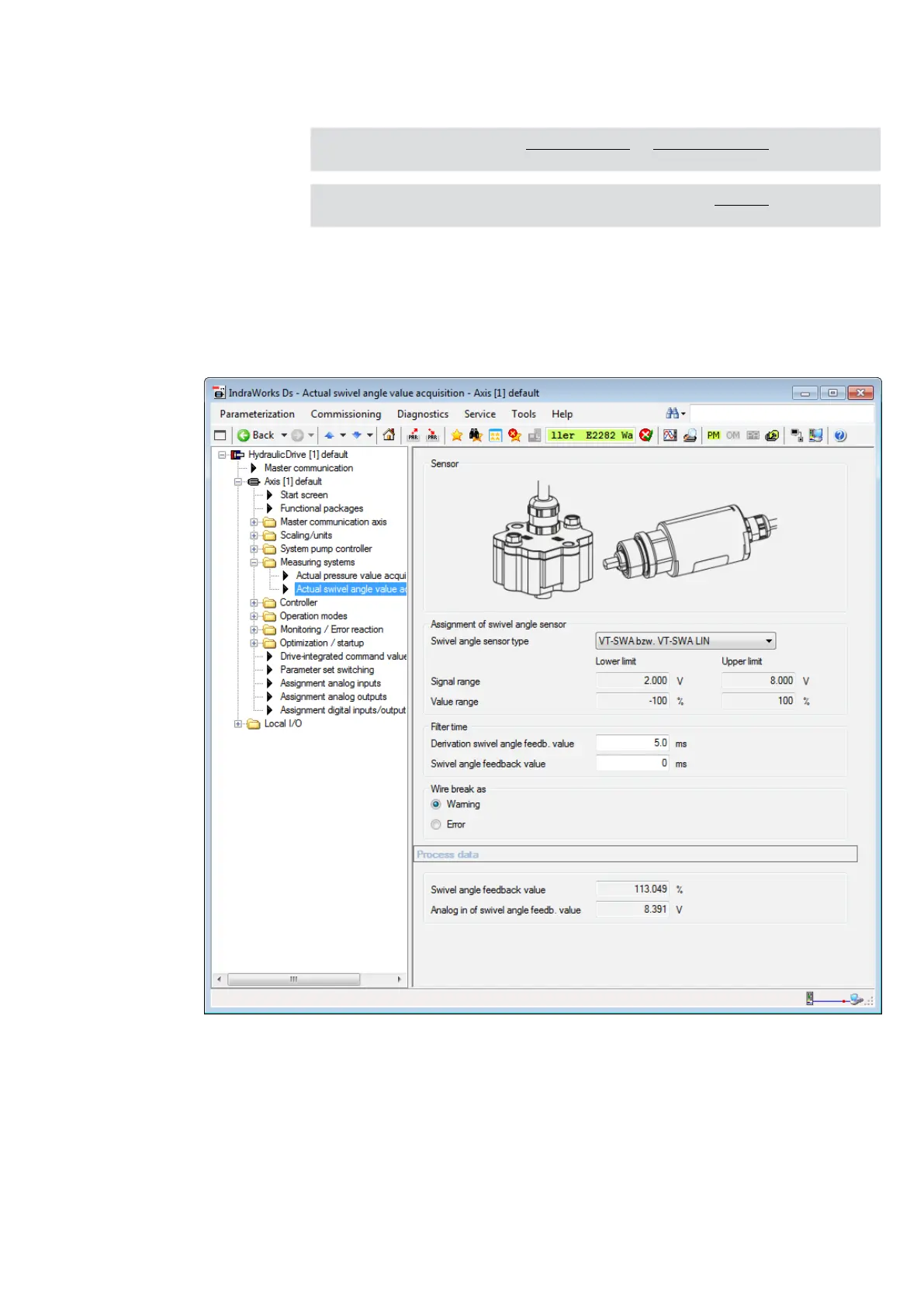

Fig. 23: Actual swivel angle value acquisition
To Next Page
