3−10 Electric Drives
and Controls
Bosch Rexroth AG BT 6.190 1070087068 / 01
Assembly and Connection
1
2
3
RX
TX
4
5
GND
6
7
8
9
PS 5000 / PS 6000
(X1; sub-D, 9-pin)
Plug
1
2
3
4
5
6
7
8
9
Operating station
Socket, 15−pin
10
11
12
13
14
15
H01
H02
PS 5000 / PS 6000
(X5)
24V
0V
BT 6.190 HPG

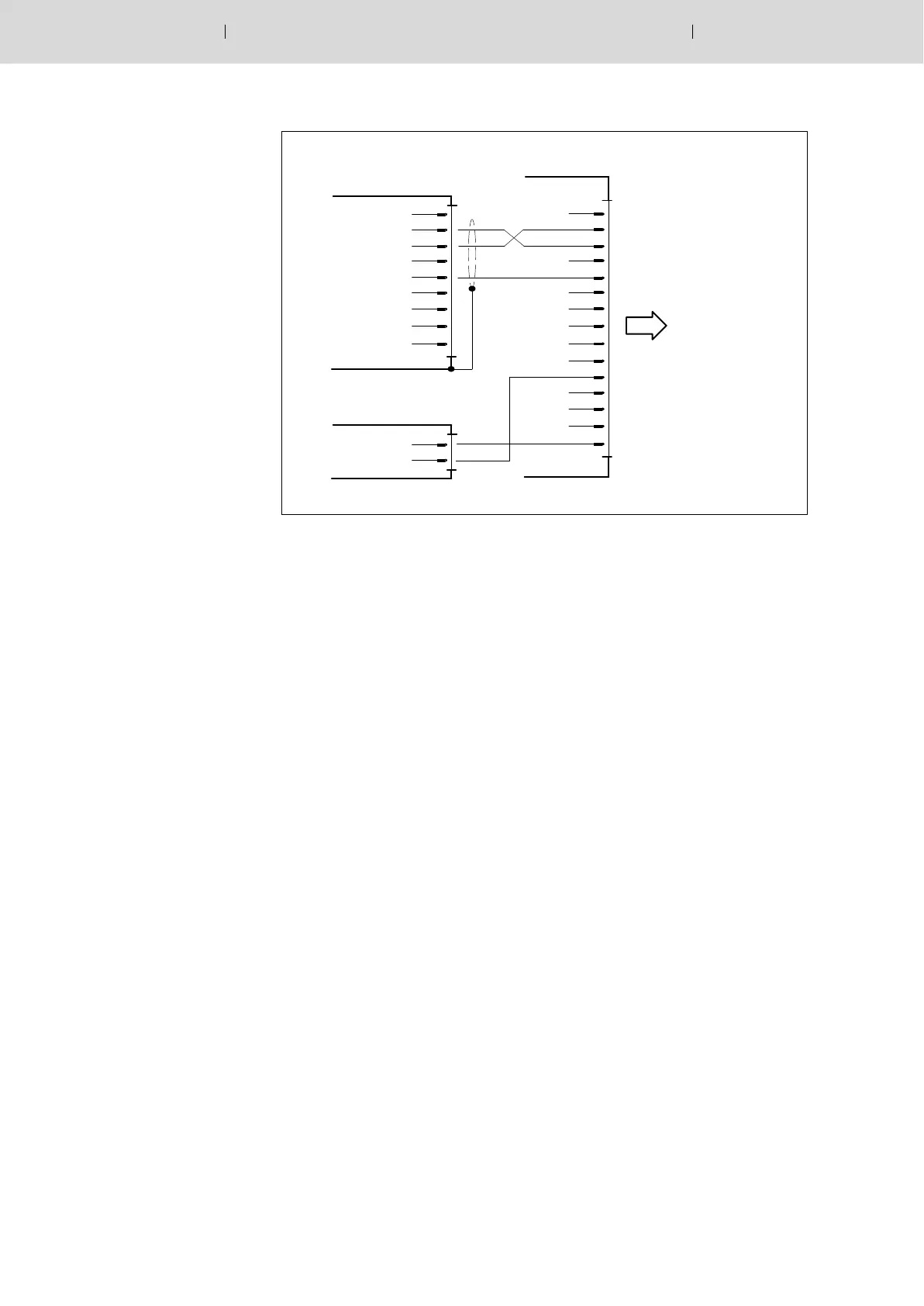

BT 6.190 HPG (hand−held terminal) connection to operating station
. The BT 6.190 HPG can be connected directly to the weld timer
using an adapter.
Order No. Adapter: 1070 088 302.
