Bosch Solution 16i - System Earthing and LAN Termination; System Earthing; Terminating the LAN

13
Bosch Security Systems 09/07 BLCC500R FTR1.02


Copyright © 2007 E&OE








i

If a separate Communications Earth wire is installed,
Do NOT connect the EARTH wire from any 3 wire
plug pack to any modules EARTH input terminal.














   

















i

The LAN must be terminated correctly for proper
operation.











































































































































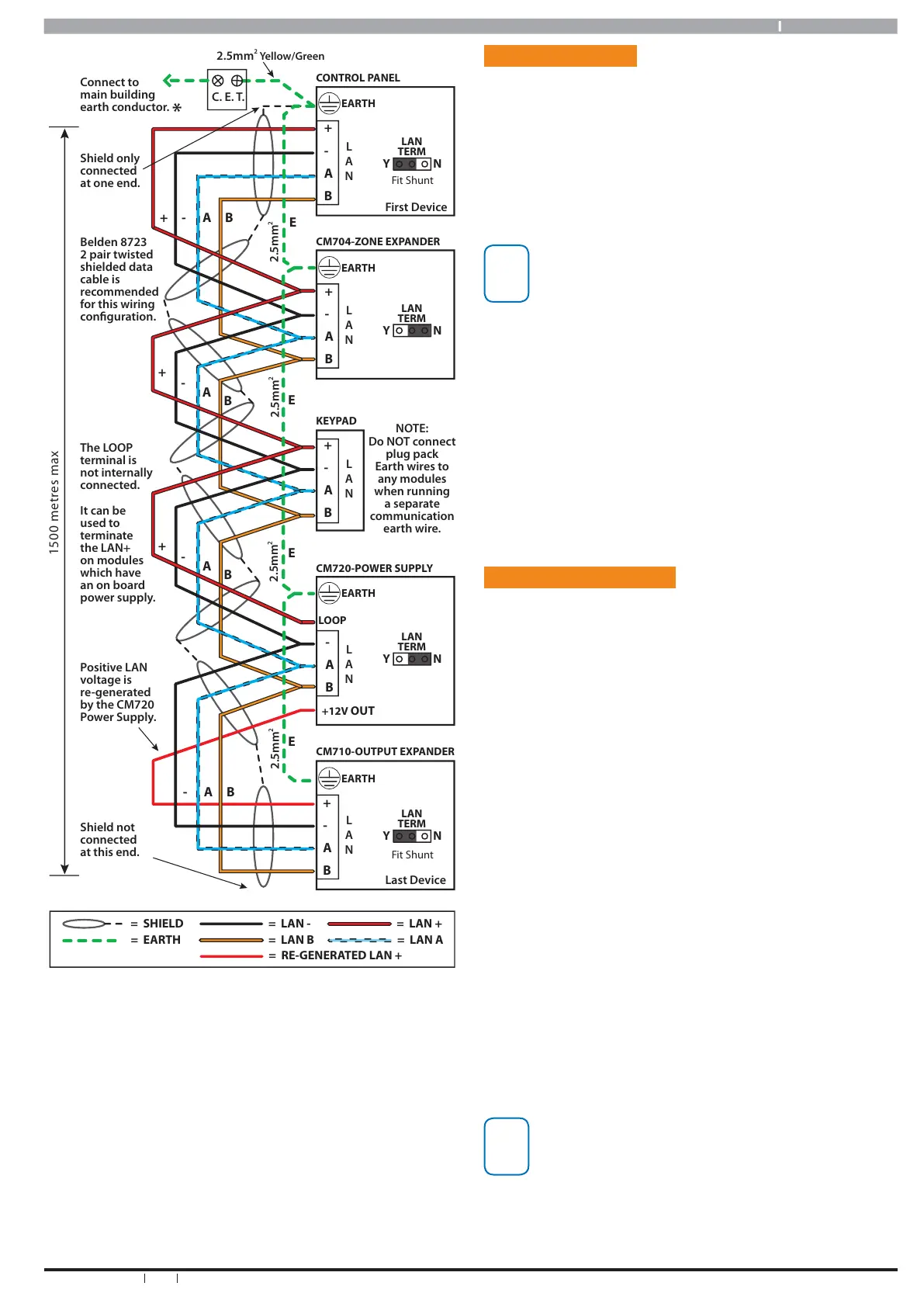

Figure 21: LAN Connection Using Twisted Pair Cable
Recommended for LAN Lengths greater than 300 metres.


