Information about the product
5
Tronic 3000T – 6 720 801 072 (2022/07)
NOTICE:
▶ Prior to connecting the power supply, ensure tank is full of
water and system is purged of air. Failure to do so may result
in dry-fire damage to the appliance, which is not covered
under warranty.
NOTICE:
▶ Tank failure due to neglecting to maintain the anode rod is
not covered under warranty (see Section 5 Maintenance).
WARNING:
This product can expose you to chemicals including lead, which
is known by the State of California to cause cancer and birth
defects or other reproductive hard. For more information go to
www.P65Warnings.ca.gov.
2 Information about the product

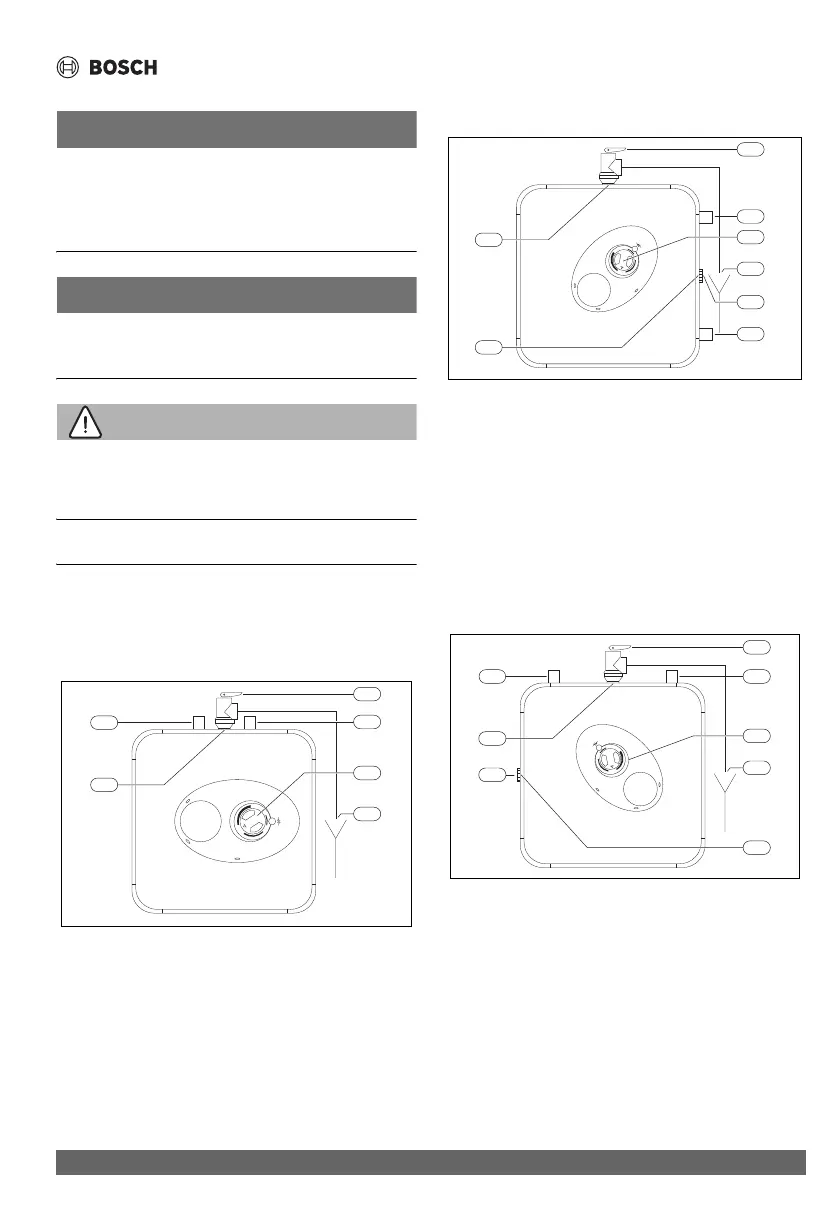

2.1 Models overview
Models ES2.5 and ES4
Fig. 2
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ½ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to
drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ½ NPT male
Models ES8 (Horizontal installation)
Fig. 3
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ¾ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to
drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ¾ NPT male
[7] ¾ NPT male plug
[8] ¾ NPT female tapping for tap
Models ES8 (Vertical installation)
Fig. 4
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ½ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to
drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ½ NPT male
[7] Hot water outlet ½ NPT male
[8] Hot water outlet ½ NPT male
1
MAX
MIN
OFF
IDEAL
2
4
5
6
3
6720801072-01.1V
1
MAX
MIN
OFF
IDEAL
2
4
5
3
6720801072-02.1V
6
7
8
1
2
4
5
3
6720801072-03.1V
6
7
8
M
IN
O
F
F
MAX
I
D
E
A
L
