18 | VLS 5235 | Maintenanceen
8.3.2 Maintenance schedule
Daily Monthly Half-yearly
Component Activity
x x x Stickers Visual inspection:
All stickers must be present
and clearly legible.
x x x Drive-on ramp and
roll-off guards
Visual inspection:
Components must not be
damaged.
x x x Electrical wiring Visual inspection:
No damage to insulation.
x x x Hydraulic system Visual inspection:
No escape of fluid.
x x x Detent locks Function test:
Detent locks must extend and
retract properly.
x x Exposed surfaces
and edges
Cleaning:
Clean all contaminated surfaces
and apply preservative agent if
applicable.
x x Exposed surfaces
and edges
Paintwork care:
Sand down paint blemishes
with sand paper (grain size
120) and touch up with the
appropriate RAL shade.
x x "Foot protection"
safety level
Function test:
Raise and lower the lifting
platform.
x Hydraulic unit Check fluid level in tank.
Top up with specified organic
hydraulic fluid if necessary.
x Moving
components
Check lubrication:
Lubricate all moving
components as per lubrication
chart.
x Shear connectors Check strength.
Tightening torque M16 =
80 Nm. Tighten if necessary.
! The hydraulic fluid must be changed annually! Only
use organic hydraulic fluid (e.g. meguin HEES 46).
8.3.3 Regularly lubricate below positions

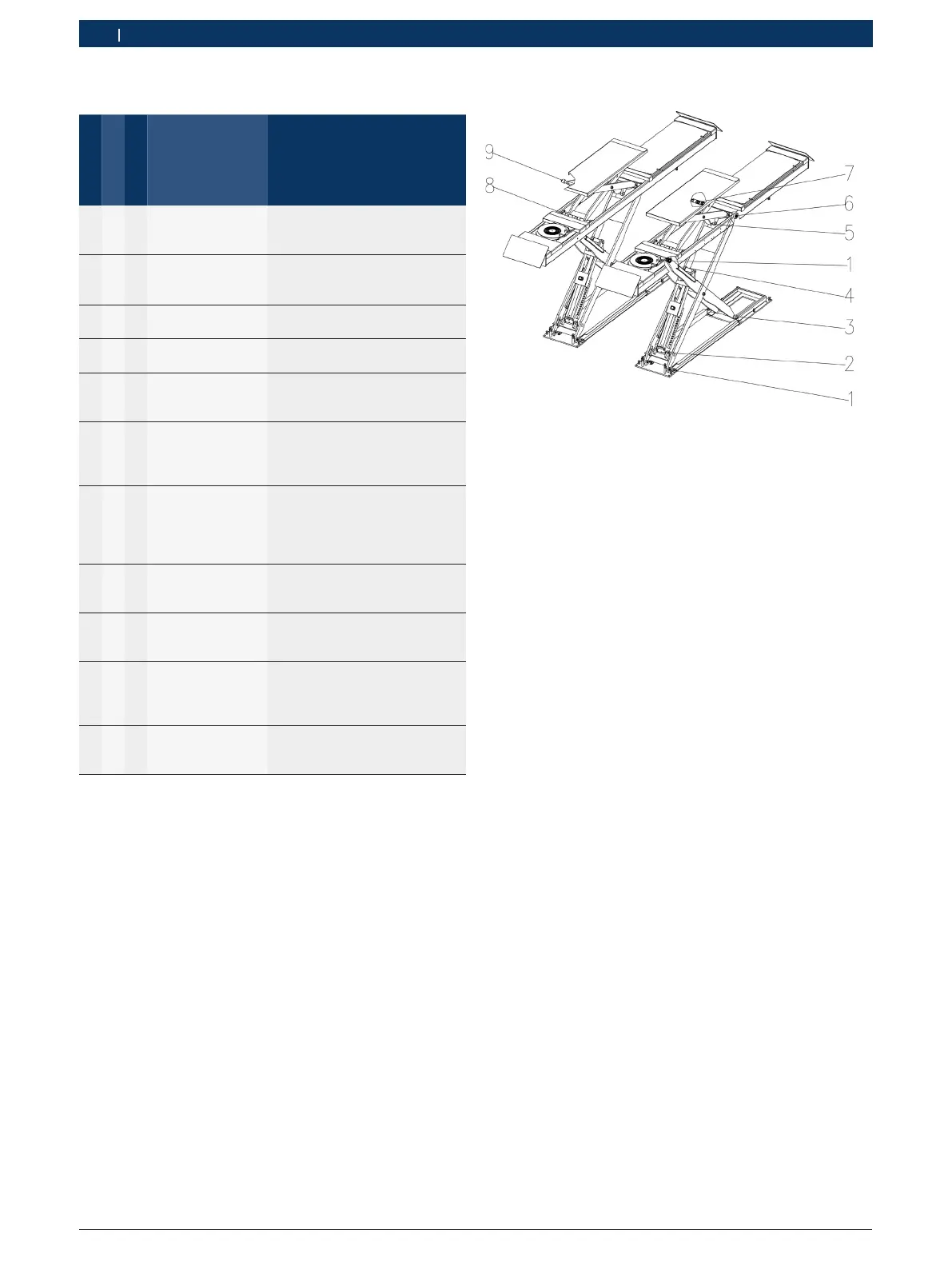

Fig. 6: Regularly lubricate
1 Shaft of big scissor arms
2 Down shaft of oil cylinder
3 Roller of big scissor arms
4 Up shaft of big oil cylinder
5 Down shaft of small oil cylinder
6 Up roller of big scissor arms
7 Up shaft of small oil cylinder
8 Down roller of small scissor arms
9 Up roller of small scissor arms
