10. Floor plan
Annex1. Floor plan for in-ground installation

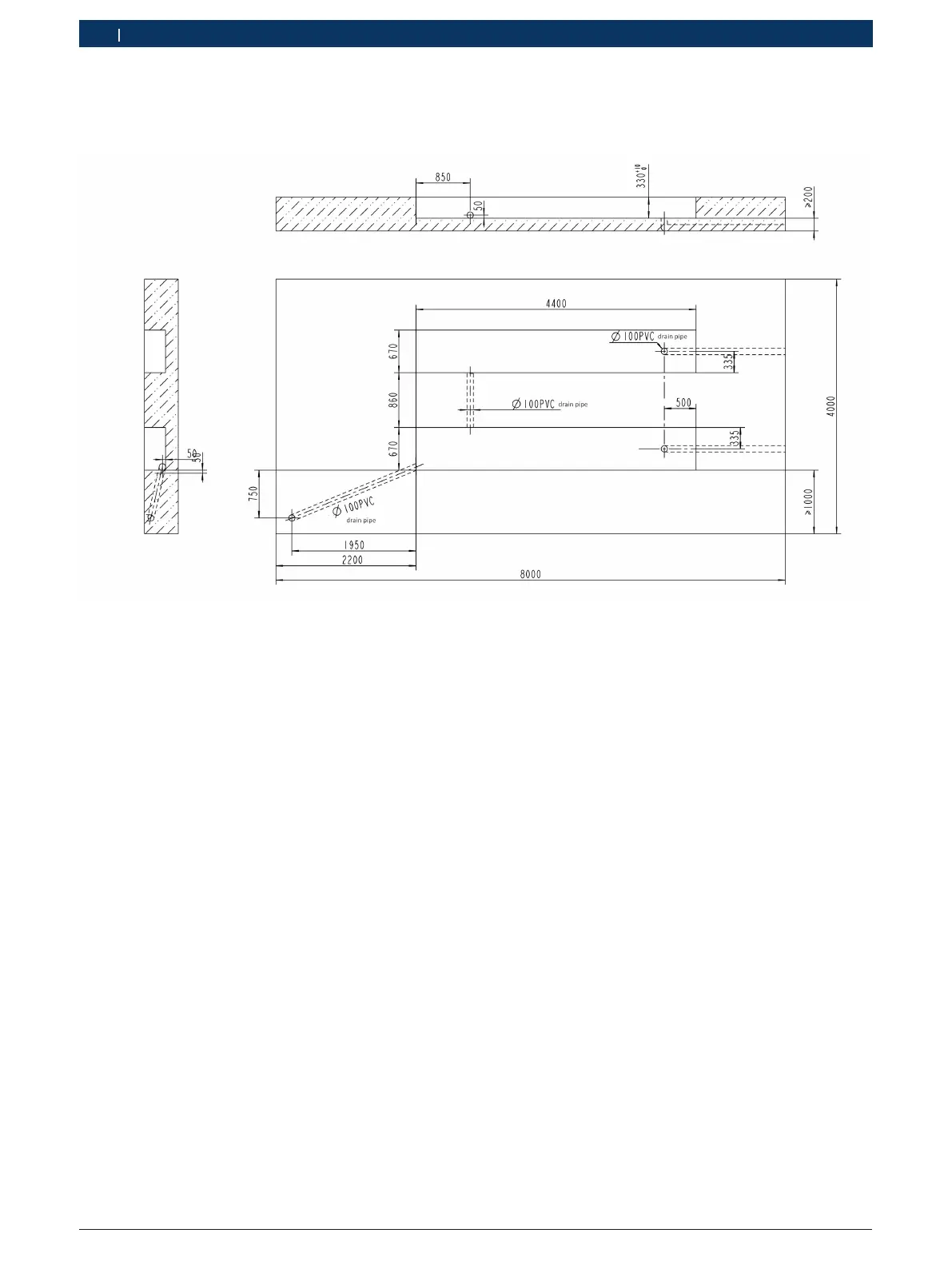

Fig. 7: Floor plan for in-ground installation(in mm)
Concrete specification requirements:
1.Quality of concrete: C 20/25
2.Thickness of the concrete: > 200mm
3.Surface: Horizontal and even (Gradients max. 0.5 %)
