Substitution of the board | WBE 4100 | 29WBE 4100 | 29 | 29 en
NOTES FOR THE ASSISTANCE: Procedure of relative
calibration.
¶ Press “SET” until the notice “TST” appears and then
press MM/INCH;
¶ Press “SET” until the notice "REL” appears;
¶ Mount the wheel;
¶ Close the protecting carter and make the launch;
¶ The machine shows the unbalance of the wheel that
it will memorize;
¶ Close the protecting carter and make a second
launch;
¶ You will see “0” “0“ on the display;
¶ Check the machine as the introduction says.
! NOTE: To disable the function, turn off the balancing
machine.

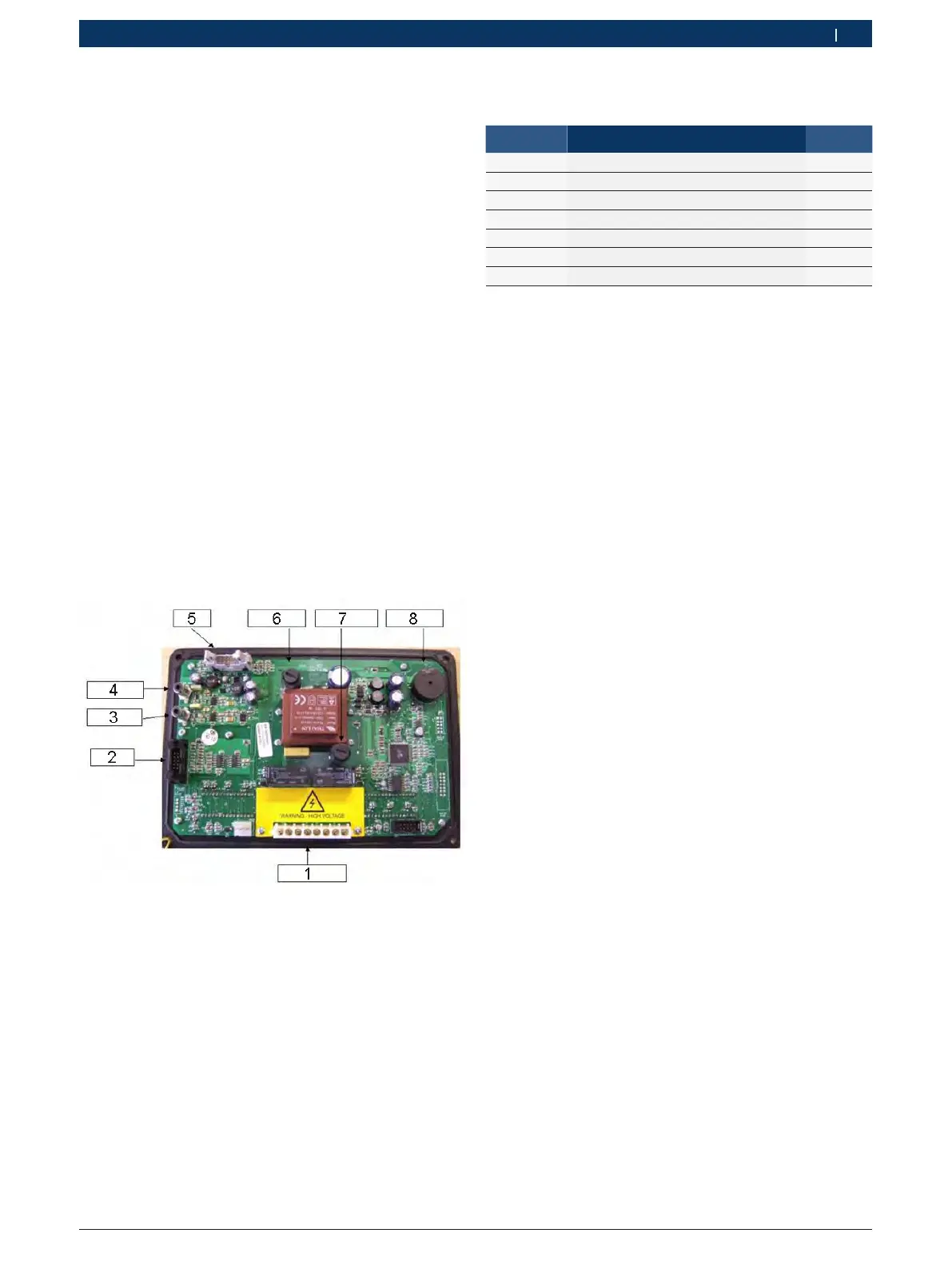

9. Substitution of the board
NOTES FOR THE ASSISTANCE
When you need to substitute the board (code 654044),
remember to set up the correct configurations (chapter
5 and chapter 6) and complete the calibration proce-
dure (chapter 7).
1. Power supply
2. Encoder
3. Pick-up int
4. Pick-up ext
5. Calibers
6. F=400mAT
7. F1=500mAT
8. Buzer (Bip)
! NOTE: The sensors (code 654432) are identical. In
order to distinguish them during the production,
they mount the red pick-up outside and the black
one inside (chapter 8.4.1).
10. Suggested spare parts
Code Description Quantity
654044
Panel+Board
1
653272
Optoelectronic
1
42136
Cable for the brake
2
41335
Belt
1
654432
Detector
2
632900
Brake shoe with lining
2
653095
Condenser
1
