Disassembly
Disassembly
–
–

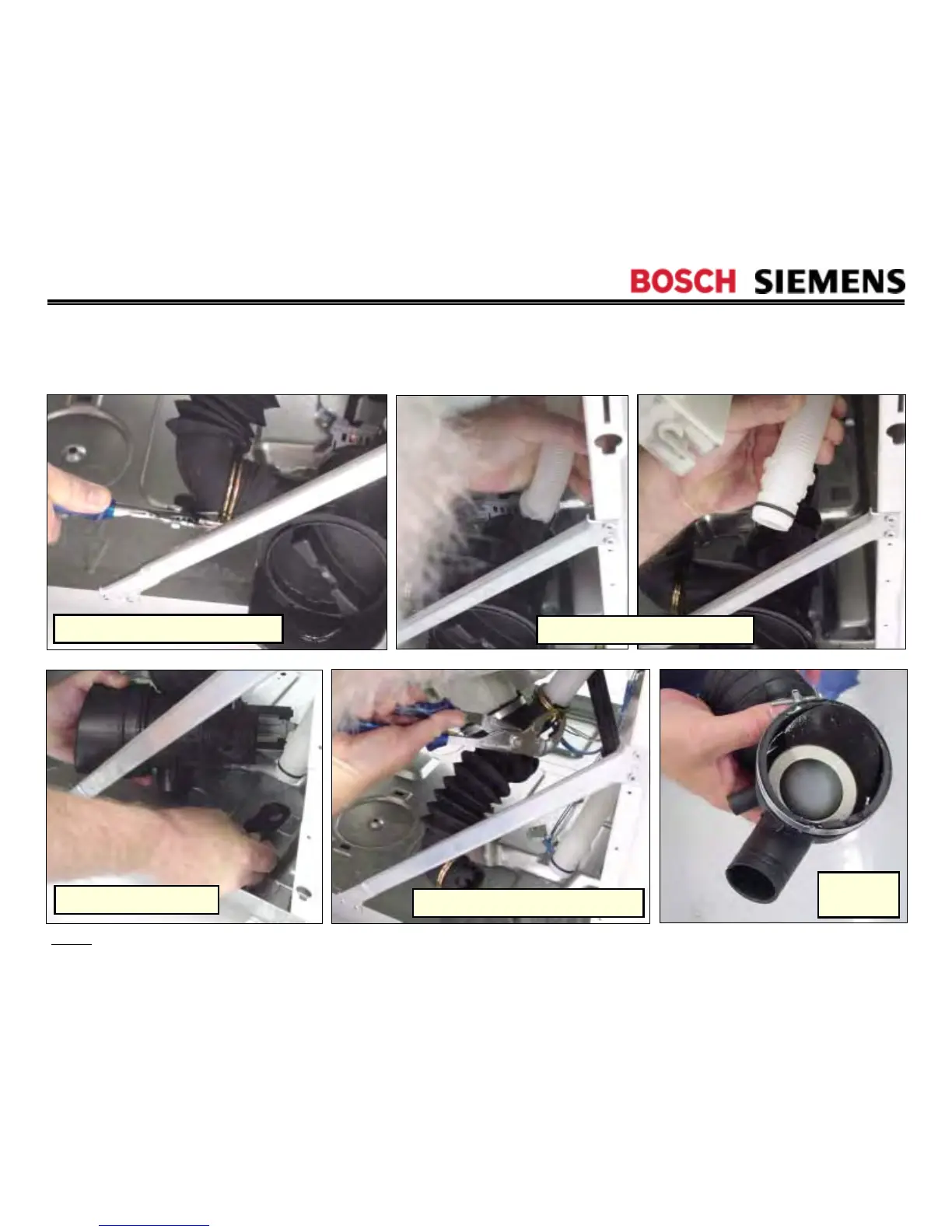

Drum/Front Panel (6)
Drum/Front Panel (6)
Disconnect sump hose clamp
Disconnect sump hose
Disconnect sump hose clamp
Remove
sump
Remove drain pump
NOTE: Old style drain pump shown (not used in production)
