Disassembly
Disassembly
–
–
Drum/Front Panel (7)
Drum/Front Panel (7)

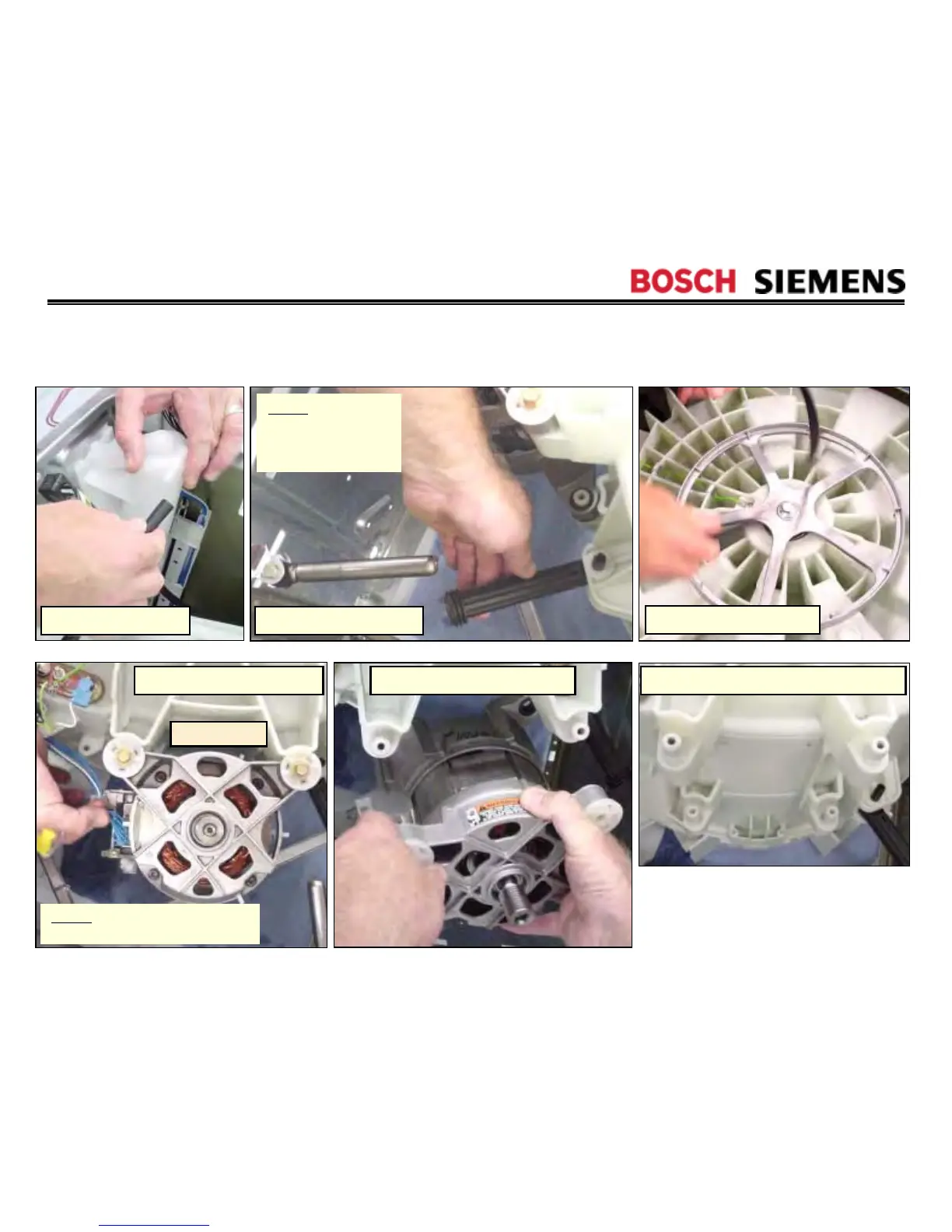

Disconnect hoses
NOTE: Old style
dampers shown
(not used in
production)
Disconnect dampers
Remove belt from tub
NOTE: Old style dampers
shown (not used in production)
Disconnect motor wires
10mm bolts
Remove drum drive motor Showing drum drive motor mounts
